Textile Solutions Professional Ltd. supplies belt pulley bearings for Barmag, Rieter ICBT and Rieter Scragg machinery, together with capstan roller bearings. Compare the product photographs, part references and dimensional drawings below.
Belt Pulley Bearings
Barmag Belt Pulley Bearing
TSP-38
| Description | Dimensions |
|---|---|
| Outer Diameter (Left Section) | Ø25mm |
| Left Section Length | 47.7mm |
| Overall Length | 106mm |
| Thread Size (Right End) | M21X1 |

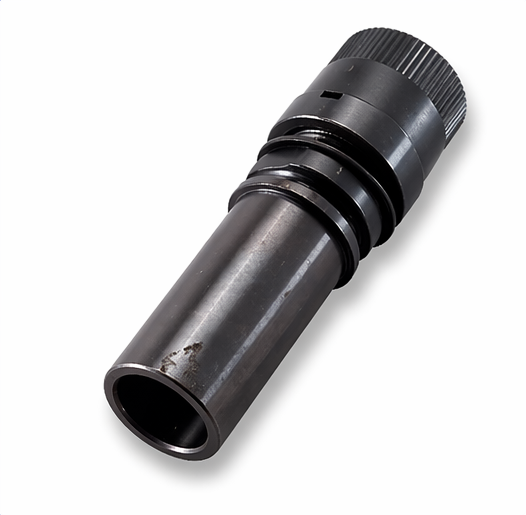

Rieter ICBT Belt Pulley Bearing
TSP-11
| Description | Dimensions |
|---|---|
| Thread Size (Left End) | M21X1 |
| Diameter (Right End) | Ø22mm |
| Length (Standard) | 38mm |
| Length (Extended) | 45mm |
| Overall Length (Standard / Extended) | 38mm (45mm) |

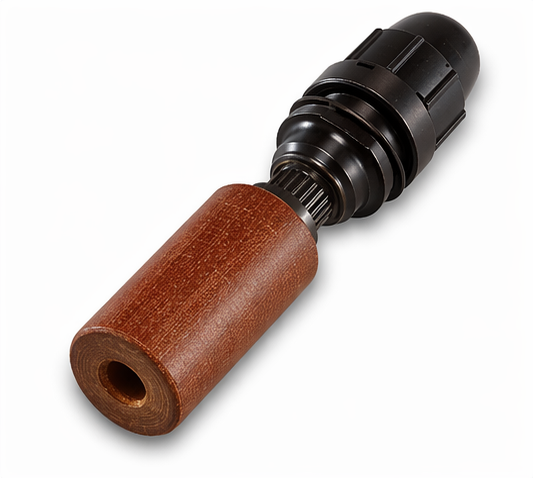

Rieter ICBT Belt Pulley Bearing
TSP-12
| Description | Dimensions |
|---|---|
| Thread Size (Left End) | M21x1 |
| Middle Diameter | Ø24.5mm |
| Right End Diameter | Ø25mm |
| Left Section Length | 28.5mm |
| Collar Length | 8mm |
| Right Section Length | 47mm |
| Overall Length | 74mm |

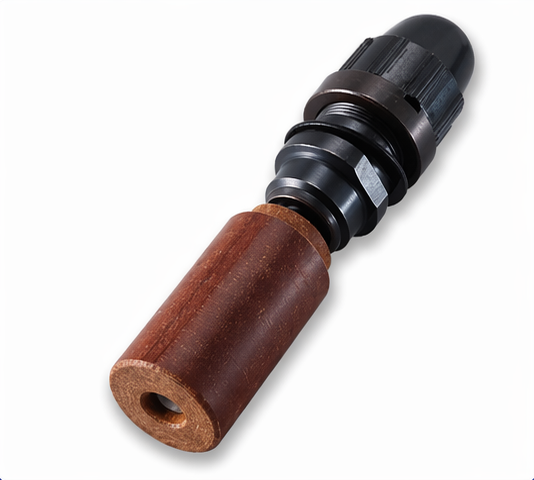

Rieter Scragg Belt Pulley Bearing
TSP-12A
| Description | Dimensions |
|---|---|
| Thread Size (Left End) | M21x1 |
| Middle Diameter | Ø24.5mm |
| Right End Diameter | Ø25mm |
| Inner Bore Diameter | Ø8.1mm |
| Left Section Length | 28.5mm |
| Right Section Length | 48mm |
| Overall Length | 66.5mm |
Capstan Roller Bearings
Capstan Roller Bearing
TSP-085A
| D | d | L | L0 | L1 |
|---|---|---|---|---|
| Ø21.2 | Ø8 | 95.8 | 77 | 14.5 |

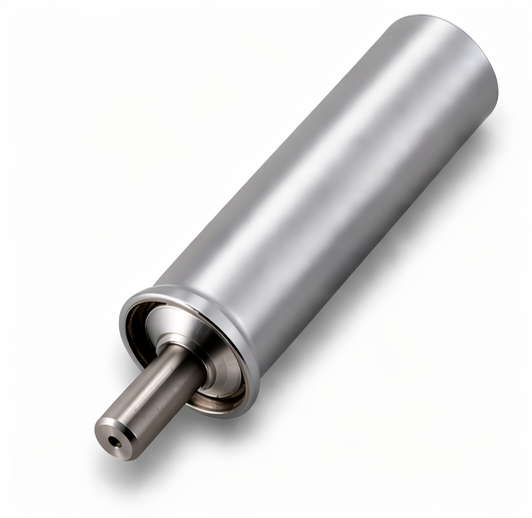

Capstan Roller Bearing
TSP-085B
| D | d | L | L0 | L1 |
|---|---|---|---|---|
| Ø21.2 | Ø8 | 76.5 | 58 | 14.5 |

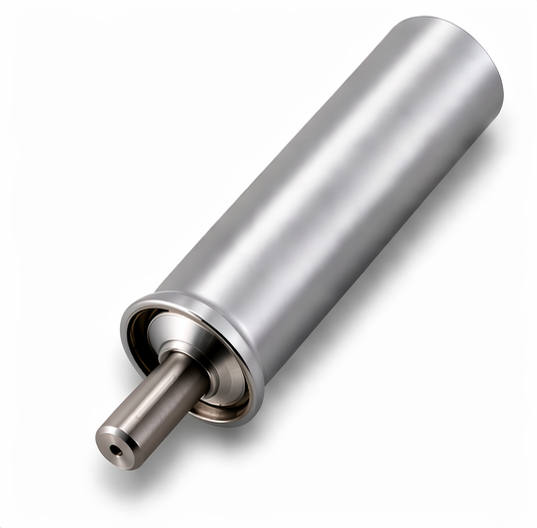

Capstan Roller Bearing
TSP-085C
| D | d | L | L0 | L1 |
|---|---|---|---|---|
| Ø21.2 | Ø8 | 52.5 | 37 | 14.5 |

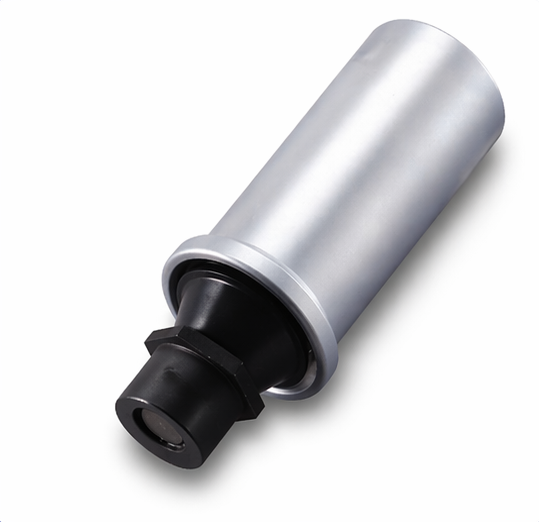

Capstan Roller Bearing
TSP-086A
| d | d1 | D | H | H1 | A |
|---|---|---|---|---|---|
| Ø8 | Ø14 | Ø22 | 77 | 12 | 60 |

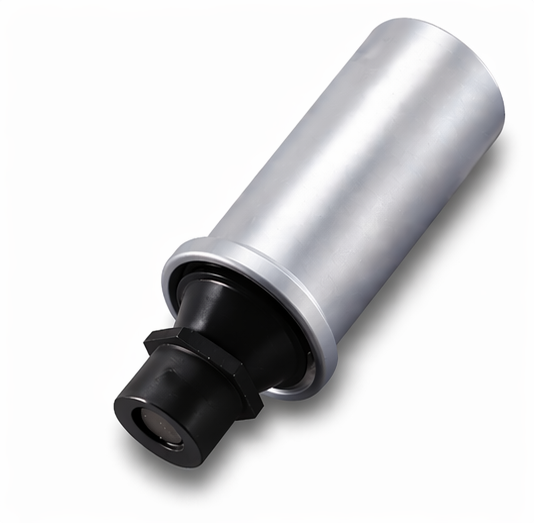

Capstan Roller Bearing
TSP-086B
| d | d1 | D | H | H1 | A |
|---|---|---|---|---|---|
| Ø8 | Ø14 | Ø23 | 66.8 | 16.8 | 50 |
Precision Engineering
Dimensions and bearing arrangements matched to the intended assembly.
Machine Compatibility
Part references and machine details help identify suitable replacements.
Stable Operation
Correct fit and alignment support smooth rotation and consistent running.
