Textile Solutions Professional Ltd. supplies nip roller bearings for Barmag and Rieter Scragg texturing machinery. Compare the product photographs, part references and dimensional drawings below.
Barmag
Barmag Nip Roller Bearing
TSP-19
| Description | Dimensions |
|---|---|
| Outer Diameter | Ø45mm |
| Width | 35mm |
| Shaft Diameter | Ø12.5mm |
| Bearing Type | Deep Groove Ball Bearing |
| Application | Barmag Nip Roller Systems |
Barmag Nip Roller Bearing
TSP-20
| Description | Dimensions |
|---|---|
| Outer Diameter | Ø66mm |
| Width | 35mm |
| Shaft Diameter | Ø12.5mm |
| Bearing Type | Deep Groove Ball Bearing |
| Application | Barmag Nip Roller Systems |
Rieter Scragg

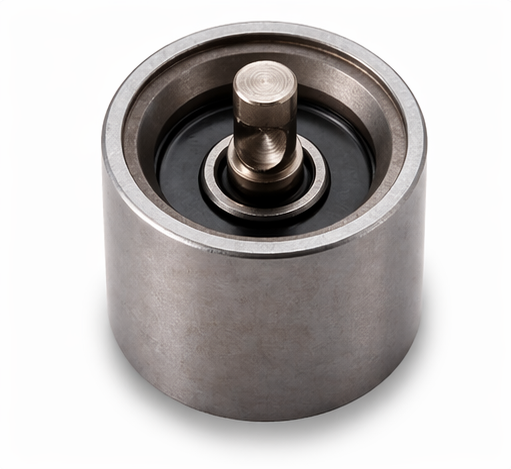

Rieter Scragg Nip Roller Bearing
TSP-30
| Description | Dimensions |
|---|---|
| Outer Diameter | Ø50.8mm |
| Width | 38.1mm |
| Shaft Diameter | Ø10mm |
| Bearing Type | Deep Groove Ball Bearing |
| Application | Rieter Scragg Nip Roller Systems |

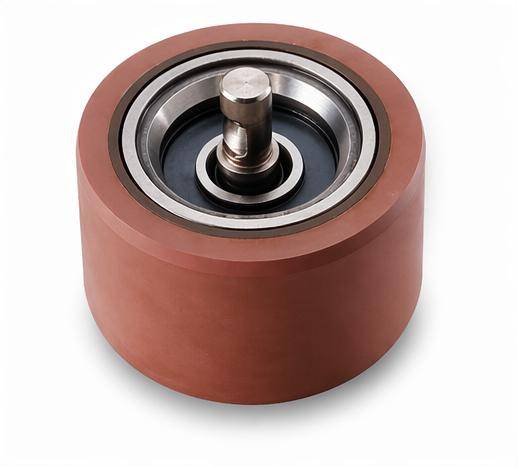

Rieter Scragg Nip Roller Bearing
TSP-30-CPL
| Description | Dimensions |
|---|---|
| Outer Diameter | Ø65.5mm |
| Width | 38.1mm |
| Shaft Diameter | Ø10mm |
| Bearing Type | Deep Groove Ball Bearing |
| Outer Material | CPL (Cast Polyurethane) |
| Application | Rieter Scragg Nip Roller Systems |

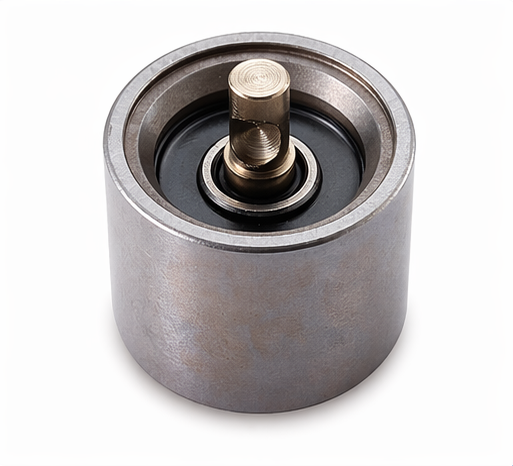

Rieter Scragg Nip Roller Bearing
TSP-30A
| Description | Dimensions |
|---|---|
| Outer Diameter | Ø50.8mm |
| Width | 38.1mm |
| Shaft Diameter | Ø10mm |
| Shaft Length | 16mm |
| Pin Hole Diameter | Ø3mm |
| Bearing Type | Deep Groove Ball Bearing |
| Application | Rieter Scragg Nip Roller Systems |

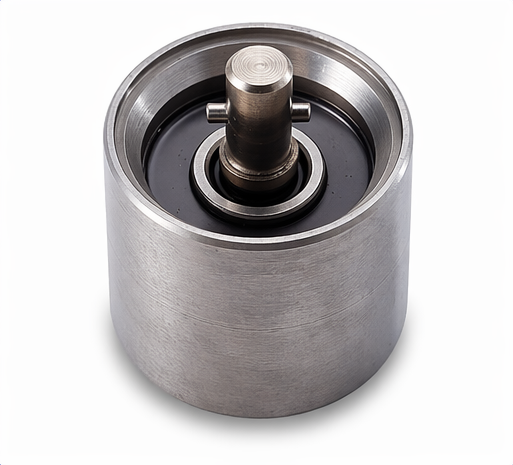

Rieter Scragg Nip Roller Bearing
TSP-30B
| Description | Dimensions |
|---|---|
| Outer Diameter | φ 38.1mm |
| Width | 38.1mm |
| Shaft Diameter | φ 10mm |
| Shaft Length | 16mm |
| Pin Hole Diameter | φ 3mm |
| Bearing Type | Deep Groove Ball Bearing |
| Application | Rieter Scragg Nip Roller Systems |
If you cannot find the nip roller bearing you need, contact us with your machine model, part reference or drawing, and required quantity.
Precision Engineering
Dimensions and bearing arrangements matched to the intended assembly.
Machine Compatibility
Part references and machine details help identify suitable replacements.
Stable Operation
Correct fit and alignment support smooth rotation and consistent running.
