Irregular Stainless Steel Filtration Powder

The media is designed to support high dirt holding capacity, stable pressure development and protection of spinneret capillaries. Applications include PET, rPET, PA6, PA66, PP and other thermoplastics in POY and FDY filament spinning, BCF, industrial yarn and staple fibre extrusion, subject to application approval.
Depth Filtration Before the Spinneret

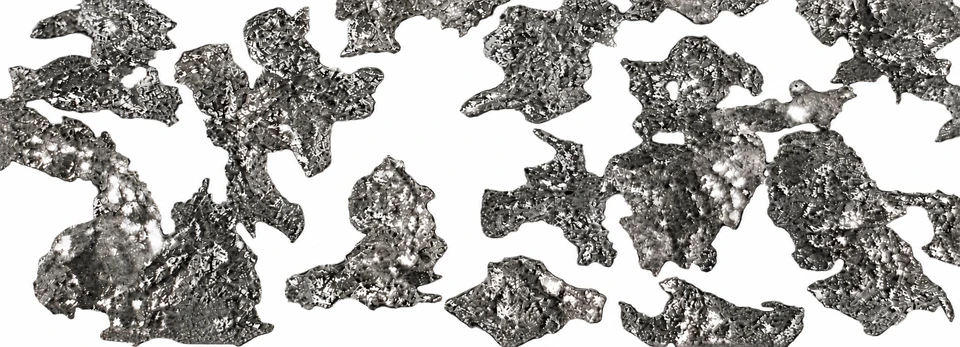

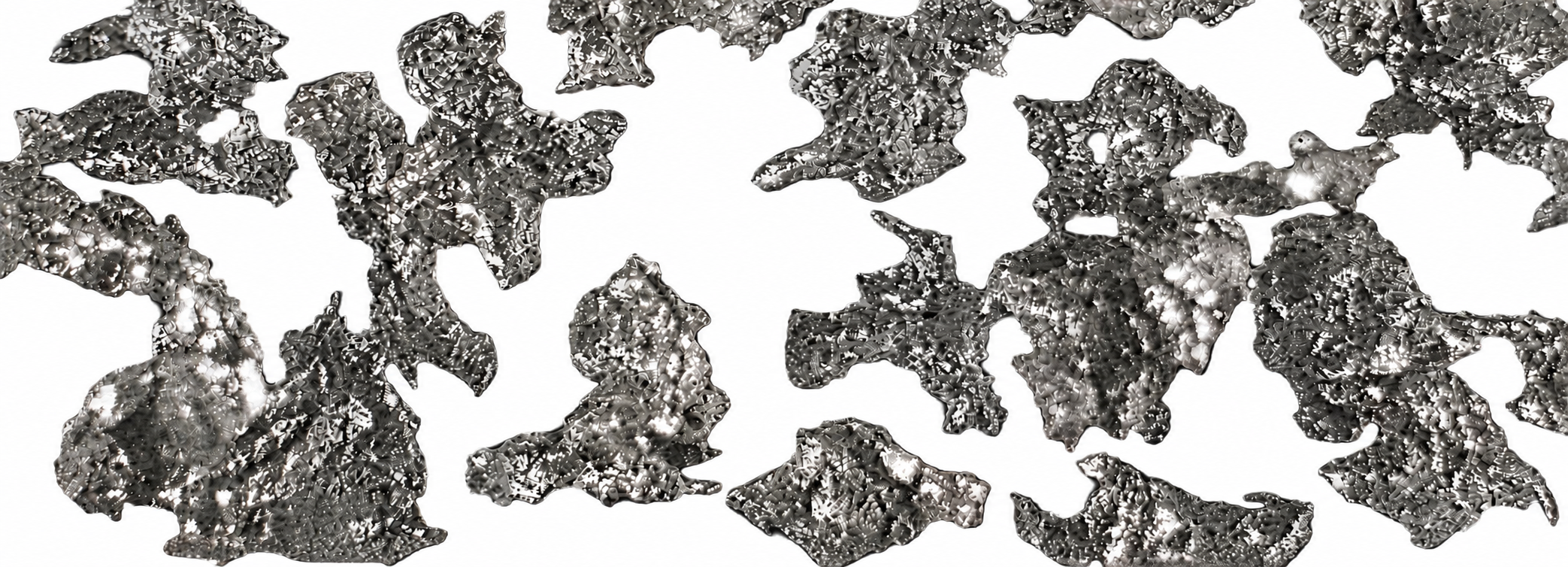

Irregular particles form intricate flow paths through the packed bed, providing contact area for retaining contamination before the melt reaches the spinneret. Textured surfaces and a three dimensional retention path support capture and dirt holding.

Polymer melts may contain hard solids from raw materials or equipment, together with deformable gels. Contaminants reaching the spinneret can restrict capillaries and contribute to filament breaks, pressure instability and quality variation.
A graded bed creates resistance to flow. Initial pressure and subsequent pressure rise depend on melt viscosity, throughput, bed depth, particle distribution, loading method and contamination accumulation. Alloy grade and particle blend must suit the polymer chemistry, melt temperature, preheating conditions and allowable differential pressure.

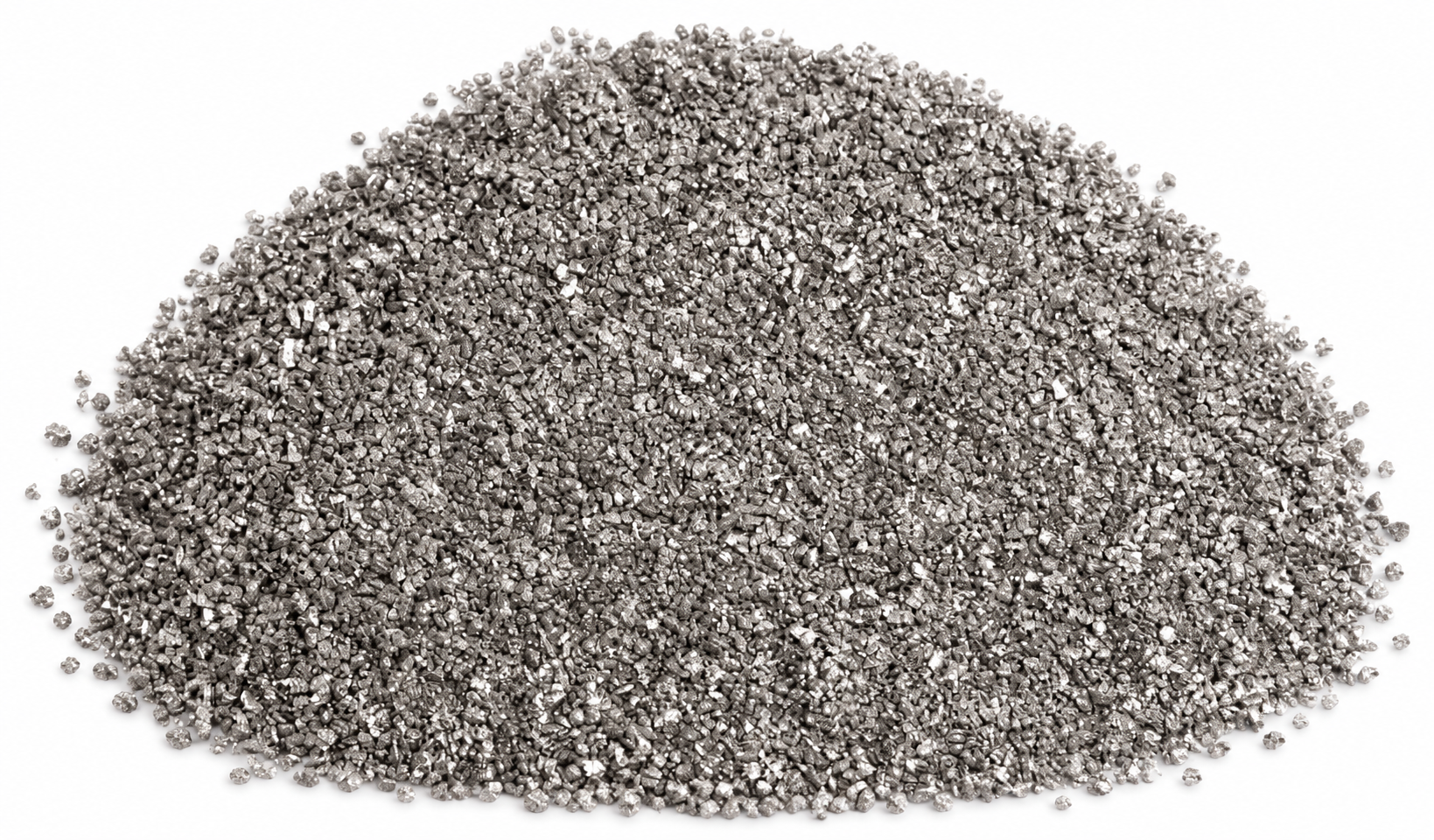

Product form: graded loose powder for a particulate filter bed, rather than a bonded or sintered porous disc, candle or element.
Controlled Production

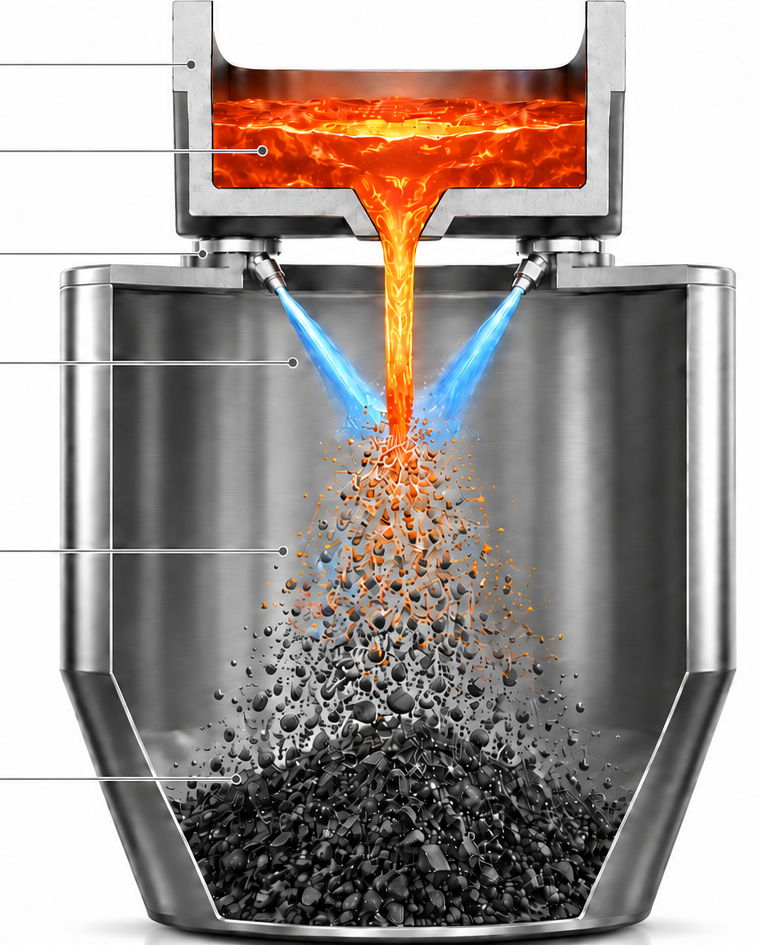

Water atomisation creates an irregular particle morphology. High velocity water jets disintegrate a controlled molten metal stream; the droplets cool and solidify before the powder is collected, dried, sieved and classified into defined size fractions.
The process starts with molten metal leaving the tundish. Water jets divide the stream into droplets, rapid heat extraction solidifies them during descent, and the collected powder is dried and graded. The resulting irregular stainless steel powder is supplied against the approved product specification.

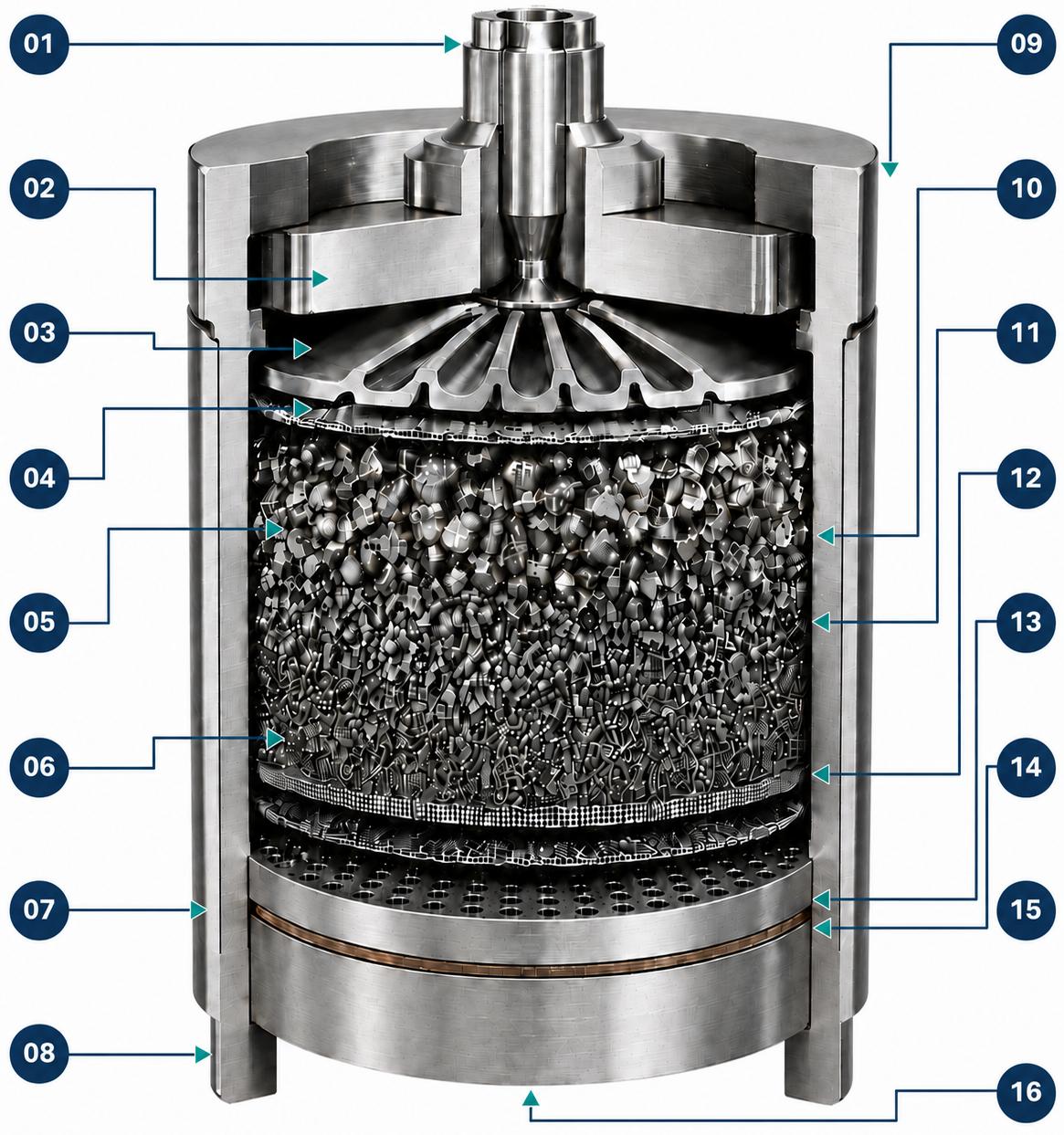

Typical Polymer Melt Spin Pack
The loose powder bed operates within a sealed and supported assembly. The approved pack drawing governs the component sequence, sealing materials, loading and pressure limits.

Component Names and Engineering Functions
| No. | Component | Function |
|---|---|---|
| 1 | Polymer Melt Inlet | Receives Metered Polymer Melt under Pressure. |
| 2 | Pack Head / Top Cover | Closes the pack and applies axial compression to the internal stack. |
| 3 | Aluminium Crush Seal | Prevents High Pressure Melt Leakage at the Upper Pack Interface. |
| 4 | Flow Distribution Plate | Spreads the central inlet flow uniformly across the filter bed area. |
| 5 | Upper Retaining Screen | Contains and Stabilises the Loose Metal Powder Bed. |
| 6 | Coarse Metal Powder Layer | Provides first stage depth filtration and high dirt loading capacity. |
| 7 | Medium Metal Powder Layer | Captures Progressively Smaller Solids and Gels. |
| 8 | Fine Metal Powder Layer | Provides Final Granular Filtration and Controlled Melt Shear. |
| 9 | Fine Retaining Screen | Prevents Fine Metal Powder Migration into Downstream Hardware. |
| 10 | Coarse Support Screens | Support the Fine Screen Against Differential Pressure. |
| 11 | Breaker / Support Plate | Carries the packed bed and redistributes melt before the spinneret. |
| 12 | Spinneret Gasket | Seals the Breaker Plate to Spinneret Interface. |
| 13 | Spinneret Plate | Divides the Melt into Uniform Vertical Capillary Streams. |
| 14 | Spinneret Holder / Clamp | Retains the Lower Assembly. |
| 15 | Spin Pack Body | Contains the Complete Pressurised Filter Stack. |
| 16 | Extruded Filaments | Uniform Filaments Exit the Spinneret. |
The graded bed progressively captures solids and gels while distributing melt to the spinneret. In a balanced pack, this supports consistent flow and reduces the risk of capillary contamination.
Bed Design and Filament Performance
Bed Design
A representative pack uses coarse, medium and fine metal sand layers, with retaining mesh above and below the loose powder, supporting screens and a breaker plate beneath it.
Two or three powder grades are commonly used. Their sizes, quantities and bed depths must match the polymer, viscosity, melt cleanliness, temperature and throughput.
Pack Construction
The complete pack typically includes an inlet cover, sealing ring, flow guide, filter layers, distribution or breaker plate, spinneret and pressure housing.
Barmag, Neumag, TMT and other OEM designs may combine or reposition screens and distribution plates.
Filament Quality
Correctly engineered filtration can support yarn and filament linear density uniformity, lower decitex or denier variation and Uster CV%, consistent tenacity and elongation, and more uniform orientation, shrinkage and dye uptake.
It can also help reduce gels, slubs, broken filaments, spin breaks, fuzz, loops and downstream defects while supporting stable pressure and pack life.
Process Control
These outcomes depend on the complete process. Average linear density and tensile properties remain primarily controlled by polymer quality, pump delivery, temperature, quenching, spinning speed and draw ratio.
Insufficient filtration allows contamination and blockage; excessive resistance can increase pressure and viscous heating, contribute to degradation and shorten pack life. Stay within approved equipment and process limits.
Alloy Selection
Select the grade around polymer chemistry, pack preheating, melt temperature, differential pressure, oxidation sensitivity and resistance to compaction. Final approval requires a process review and confirmation against the current product specification and batch certificate of analysis.
TSP 01
Standard Media
PET POY / FDY applications where the approved specification meets the process duty.
TSP 02
Intermediate Media
Higher mechanical strength and lower oxidation sensitivity for more demanding PET filtration duties.
TSP 03
Higher Chromium Media
Higher initial pressure and compaction resistance duties, including validated PA filament applications.
Chemical Composition Limits (Mass %)
| Element | TSP 01 | TSP 02 | TSP 03 |
|---|---|---|---|
| Iron (Fe) | Balance | Balance | Balance |
| Nickel (Ni) | Max. 0.6 | 6 - 12 | Max. 0.6 |
| Chromium (Cr) | 16 - 18 | 16 - 22 | 33 - 37 |
| Manganese (Mn) | Max. 1.0 | Max. 1.0 | Max. 1.0 |
| Silicon (Si) | 1.0 - 4.0 | 0.6 - 3.5 | 2.0 - 4.0 |
| Molybdenum (Mo) | - | Max. 3.0 | - |
| Carbon (C) | Max. 0.12 | Max. 0.12 | Max. 0.12 |
Validate initial pressure, pressure rise rate, polymer colour, filament performance and pack life under actual operating conditions.
Particle Size Control
Build the packed bed from controlled coarse, medium and fine fractions. The final blend depends on required filtration performance, bed depth, melt viscosity, throughput and allowable pressure drop.
| Particle Size (µm) | Nominal Mesh | Apparent Density (g/cm³) | Tap Density (g/cm³) | Indicative Porosity (%) |
|---|---|---|---|---|
| 850 - 2000 | 10 / 20 | 1.45 | 1.95 | 75 |
| 500 - 850 | 20 / 30 | 1.55 | 2.10 | 73 |
| 350 - 500 | 30 / 40 | 1.60 | 2.10 | 71 |
| 250 - 350 | 40 / 60 | 1.65 | 2.60 | 67 |
| 180 - 250 | 60 / 80 | 1.80 | 2.70 | 65 |
| 125 - 180 | 80 / 120 | 2.10 | 3.00 | 60 |
| 90 - 125 | 120 / 170 | 2.30 | 3.10 | 58 |
| 45 - 90 | 170 / 325 | 2.40 | 3.20 | 56 |
Particle size fractions are determined by dry sieving in accordance with ISO 4497:2020, Metallic powders Determination of particle size by dry sieving.
Apparent density describes a loosely filled powder volume; tap density describes the volume after a defined tapping procedure. Packed bed void fraction depends on the loading method and particle distribution. The apparent density, tap density and porosity figures above are indicative values and must be confirmed against the agreed specification.
Media Performance and Controlled Trials
High mechanical strength and particle integrity support resistance to deformation and compaction as pressure rises. Irregular surfaces and comparatively low apparent density provide contact area and useful void volume. Controlled size fractions allow the filter bed structure, required filtration performance and pressure profile to be adjusted.
Performance is established in the complete spin pack and process. Agree the baseline media, trial quantity, operating window and acceptance criteria before routine supply, then compare like for like operating conditions.
Initial Pressure
Stabilised throughput and melt temperature; identify the pressure measurement point.
Pressure Rise Rate
Same units, time interval and polymer duty.
Pack Life
Hours and processed mass, with the shutdown reason.
Filament Quality
Breaks, linear density variation and relevant tensile or defect measurements.
Polymer Condition
Colour and evidence of degradation or contamination.
Pack Inspection
Spinneret cleanliness, screen condition, bypass evidence and bed condition.
Upstream pack pressure is not necessarily the pressure drop across the powder bed. Record downstream pressure where available, and state whether each value is gauge, absolute or differential.
Application Information for Selection
Provide the product and polymer type, throughput per spin pack, melt temperature, cavity dimensions, available bed depth and screen arrangement. Include spinneret and capillary diameters, hole count, current particle size blend, pack weight and loading method.
Initial pressure, maximum permitted pressure, typical pack life and the target filtration improvement are also required. Describe any yarn quality issue or contamination type so that a controlled trial specification can be prepared.
Supply Planning
Forecast based stock and call off arrangements can support smaller deliveries against actual consumption, reduce customer held inventory and working capital requirements, and improve continuity of supply. Grade approval, particle size range, forecast volumes, stock location and delivery arrangements should be agreed before a programme begins.
Polymer Filtration
Graded metal particles form a filter bed within the spin pack.
Controlled Particle Sizes
Combine suitable size fractions to balance retention and melt flow.
Technical Support
Advice on bed depth, throughput and allowable pressure drop.
