Barmag Take Up Rollers

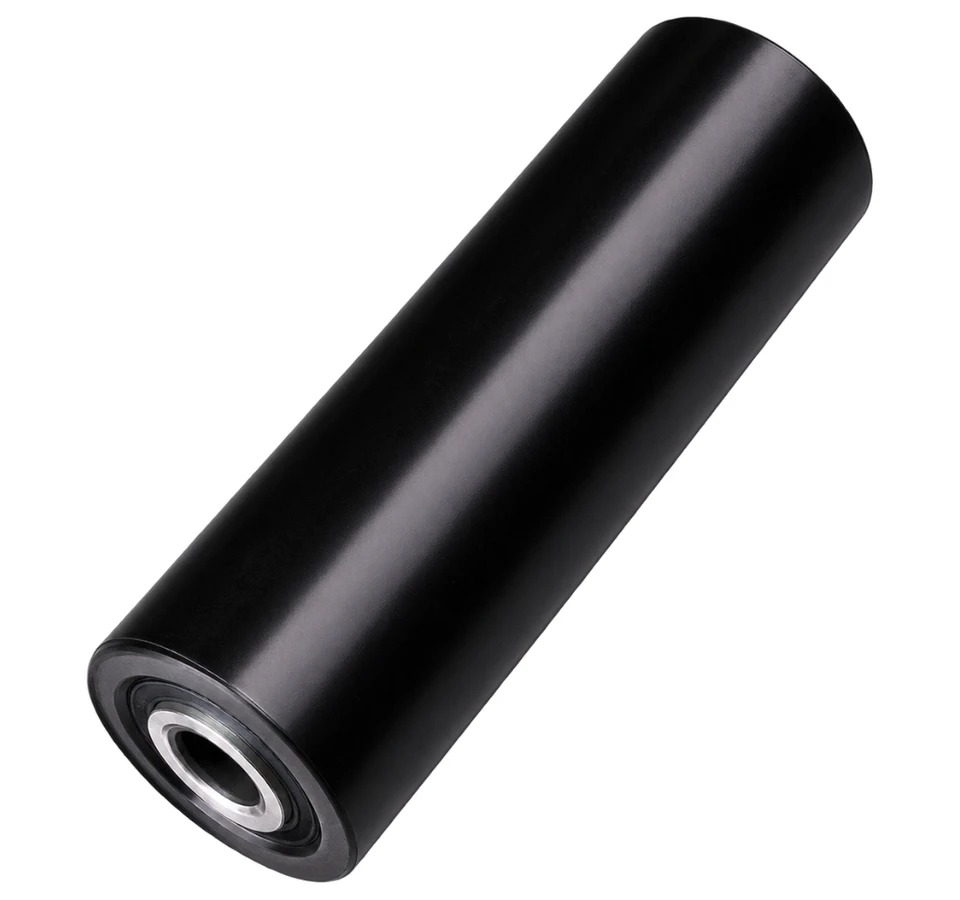

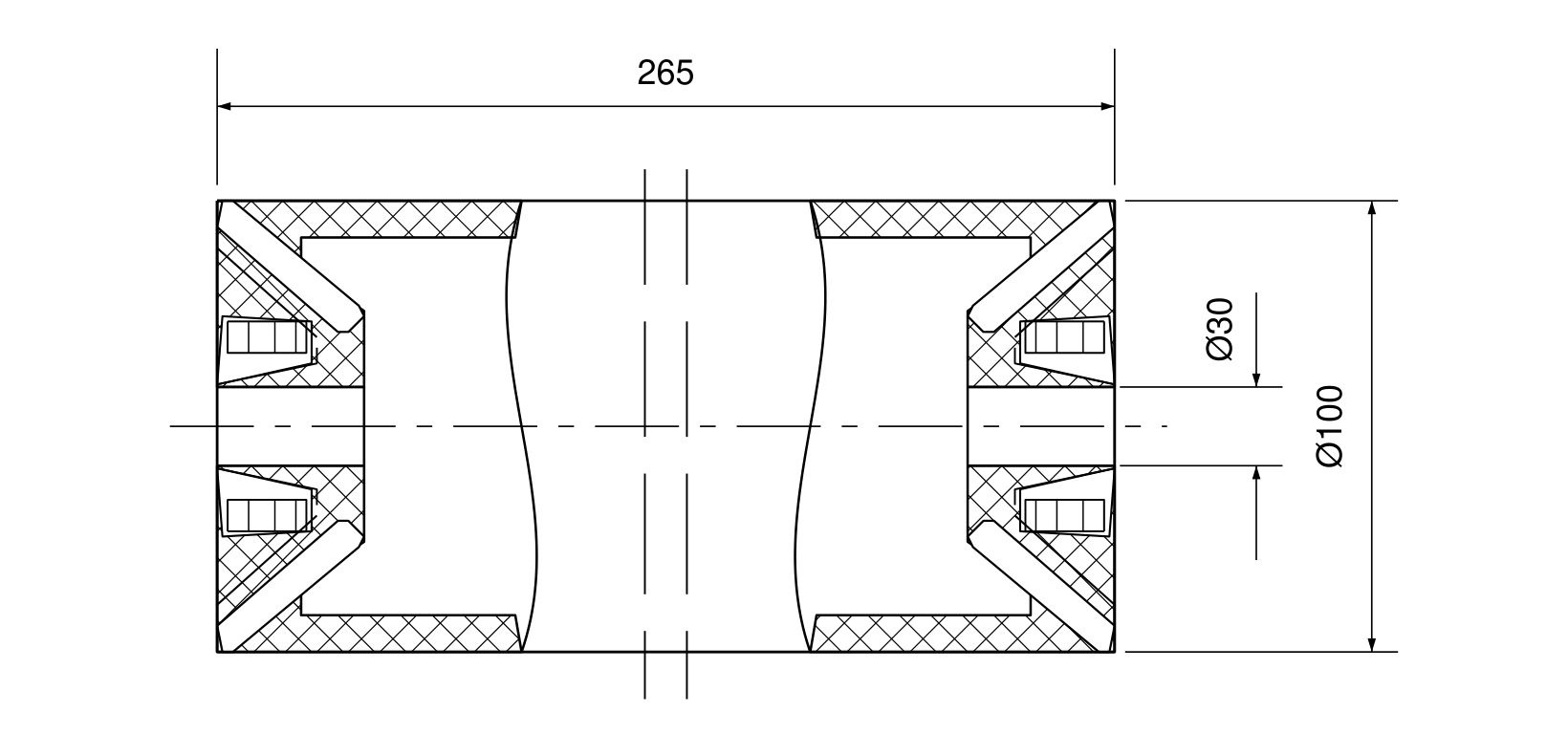

Barmag 3861828
| Description | Specification |
|---|---|
| Roller Length | 265mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø30mm |

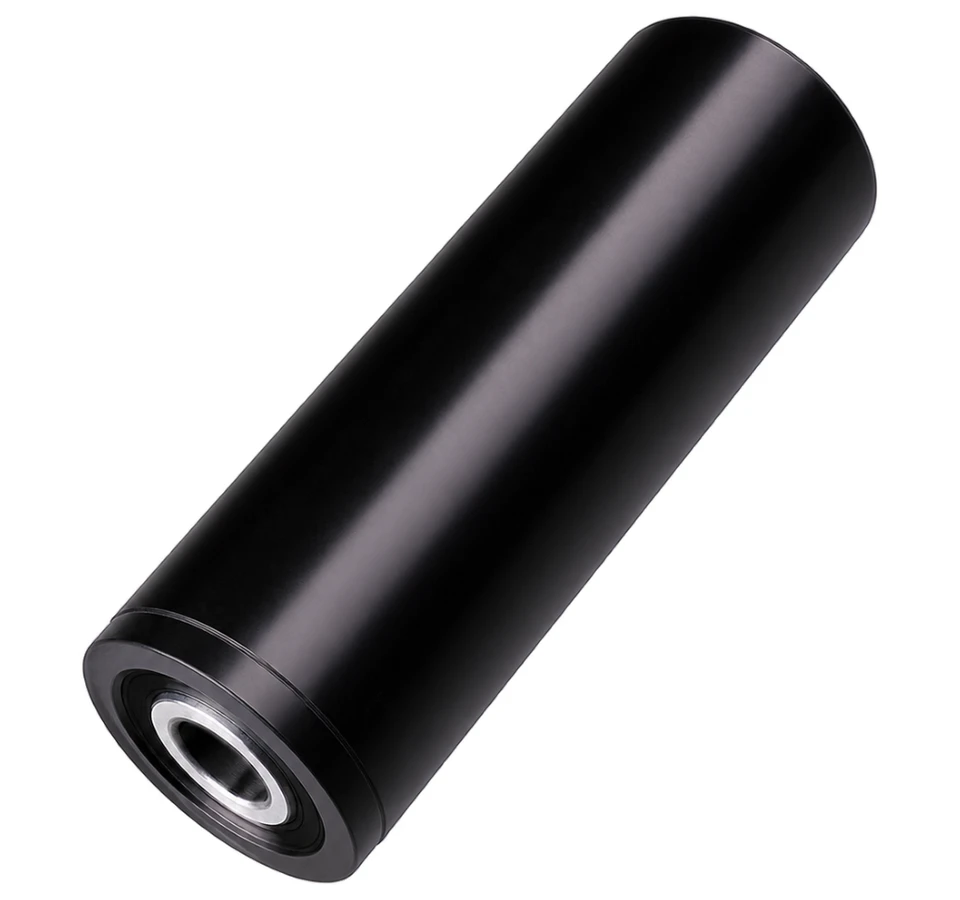

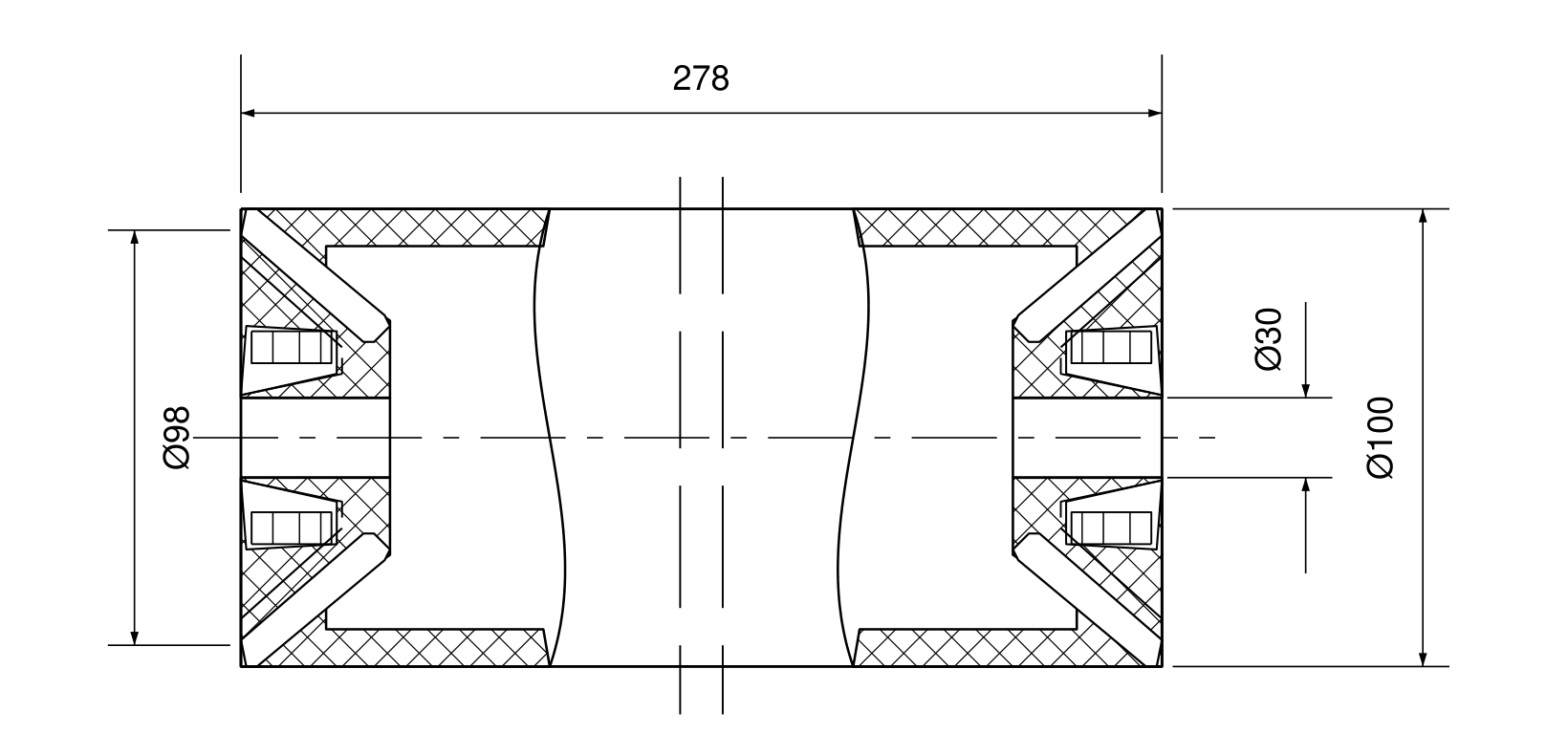

Barmag A339-9066
| Description | Specification |
|---|---|
| Roller Length | 278mm |
| Outer Diameter | Ø100mm |
| End Diameter | Ø98mm |
| End Bore Diameter | Ø30mm |

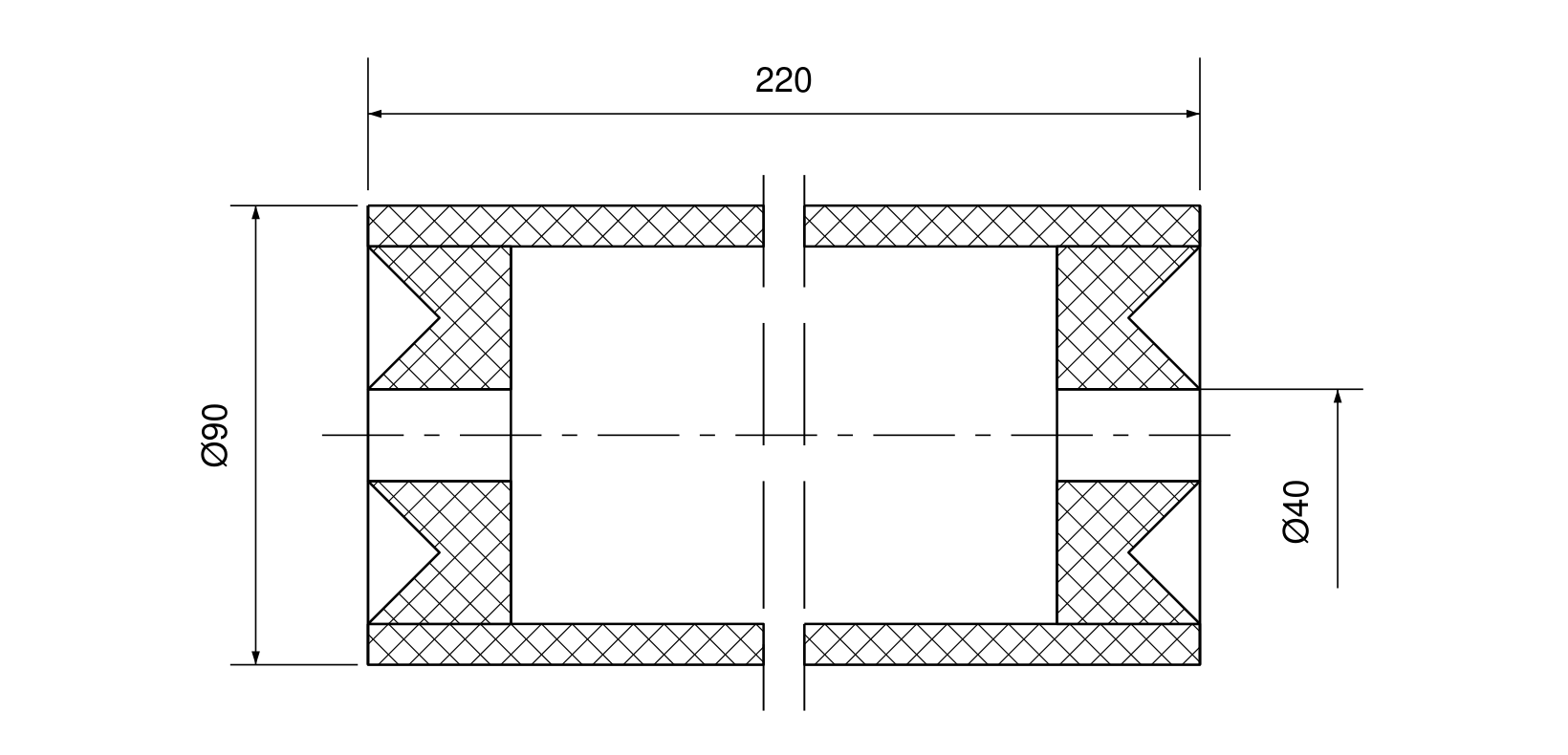

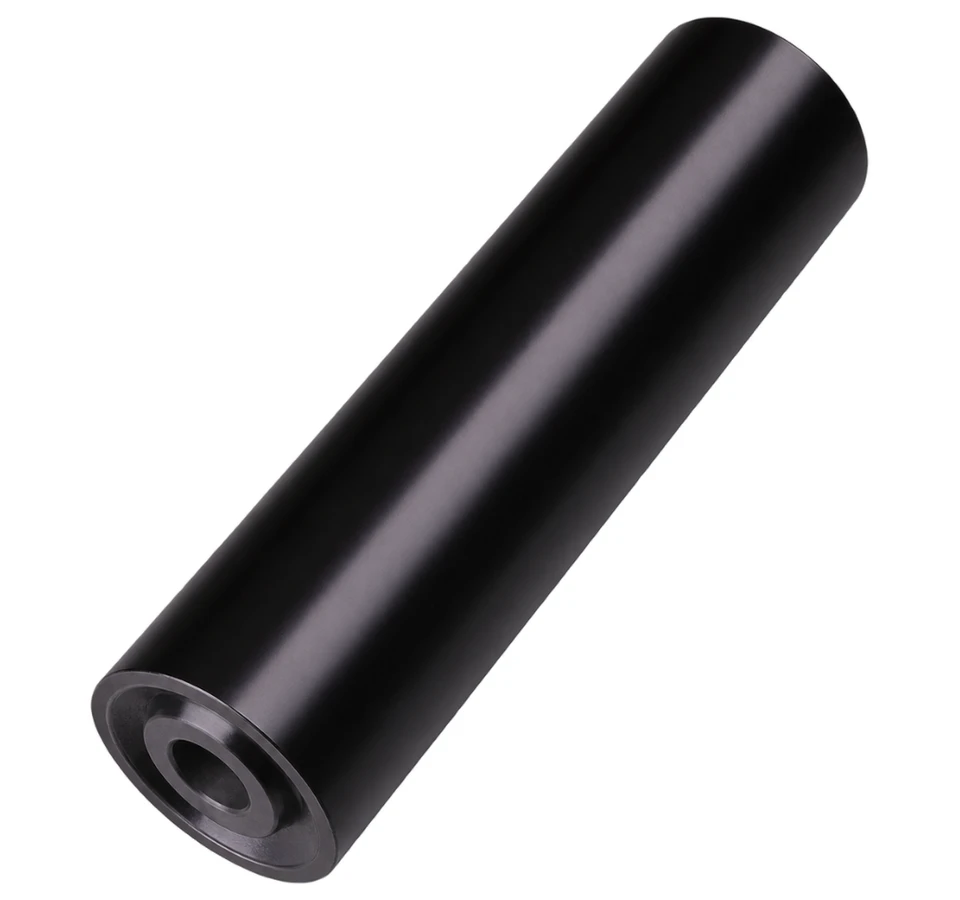

Barmag FK4
| Description | Specification |
|---|---|
| Roller Length | 220mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø40mm |

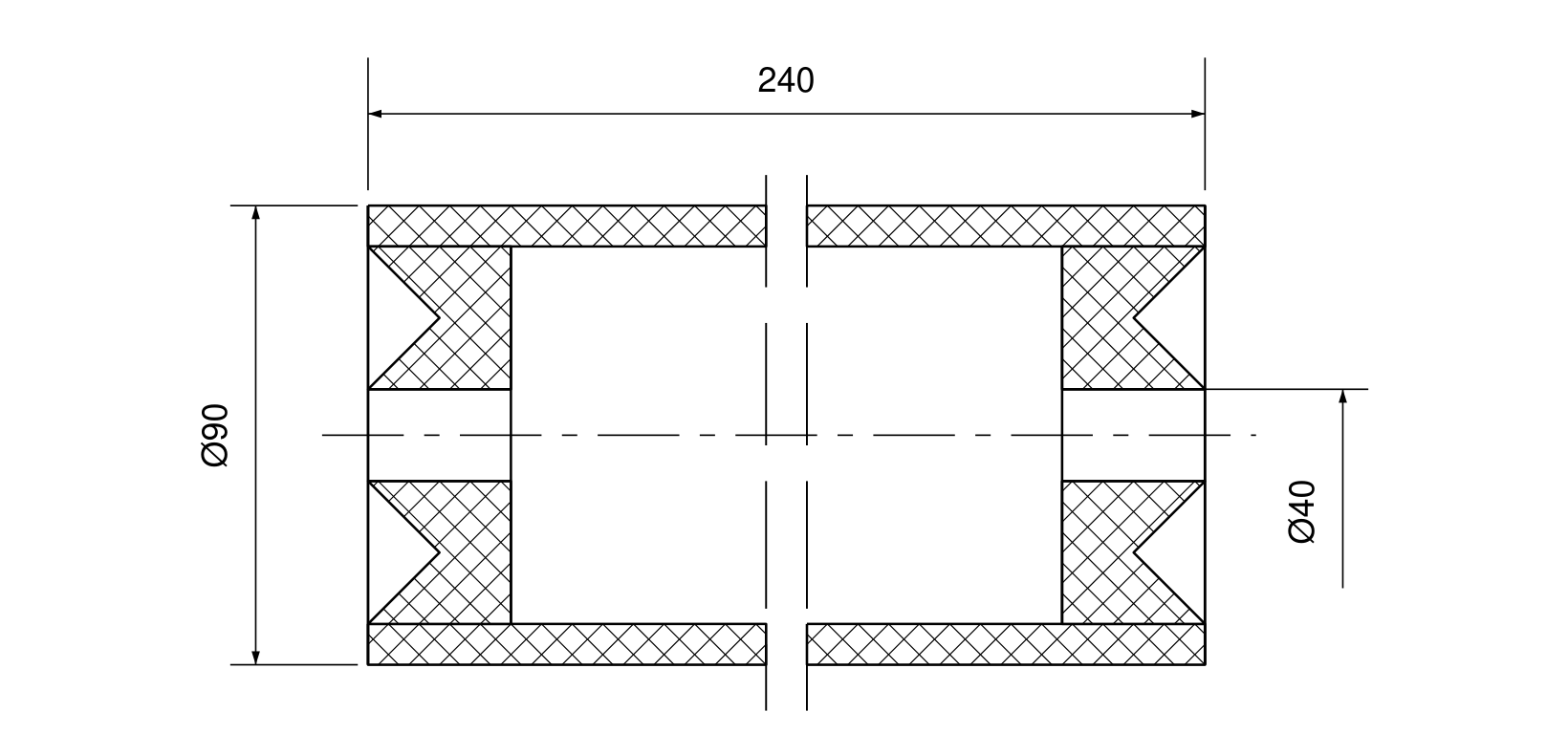

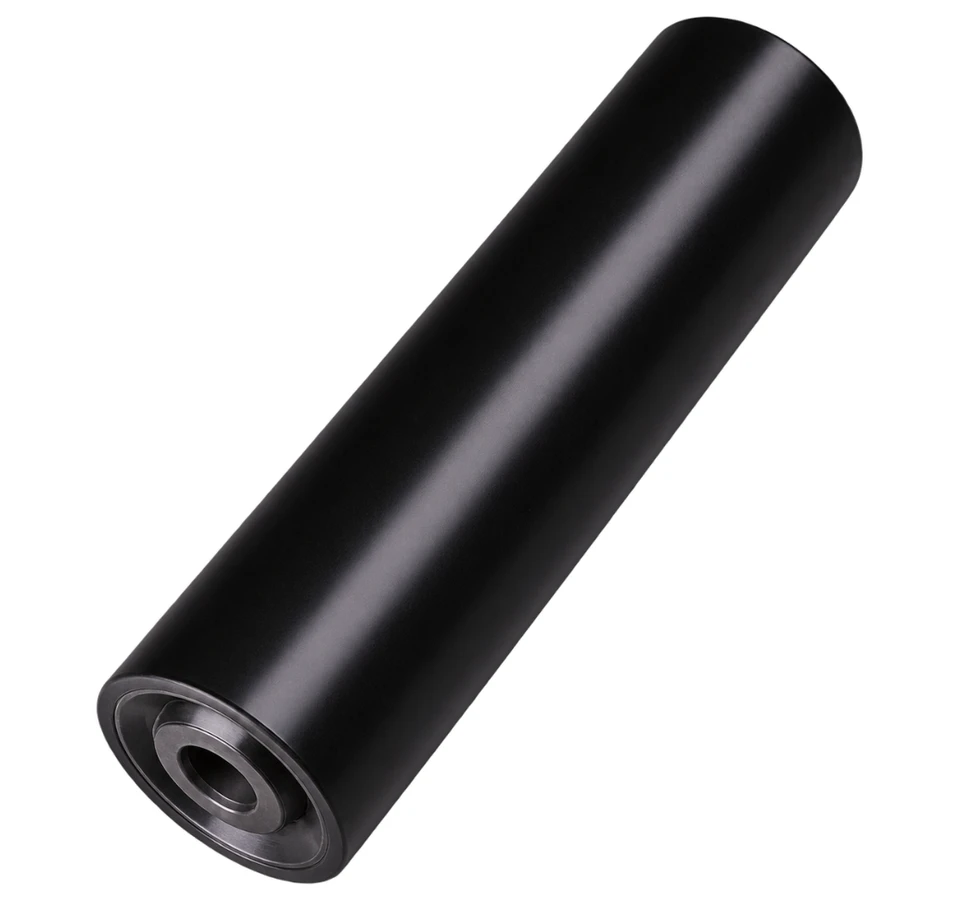

Barmag FK5
| Description | Specification |
|---|---|
| Roller Length | 240mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø40mm |
Rieter Scragg Take Up Rollers

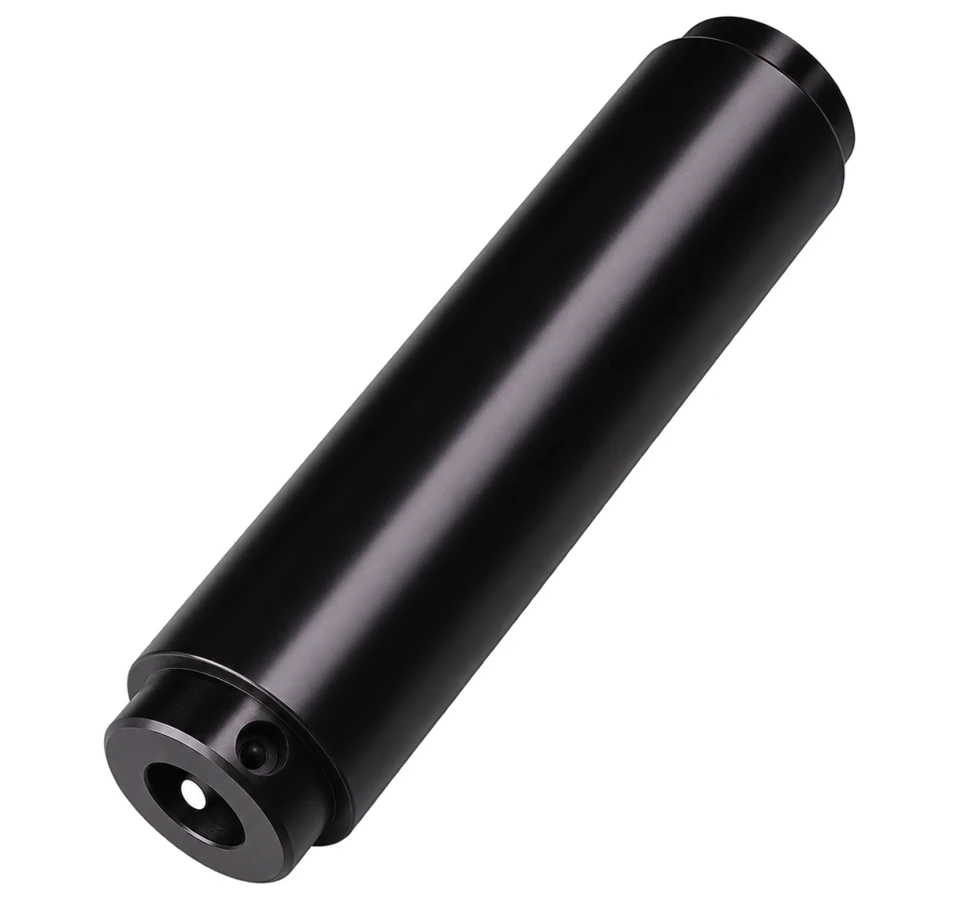

Rieter Scragg DrawSet
| Description | Specification |
|---|---|
| Overall Length | 301mm |
| Roller Body Length | 260mm |
| Outer Diameter | Ø80mm |
| End Diameter | Ø30mm |

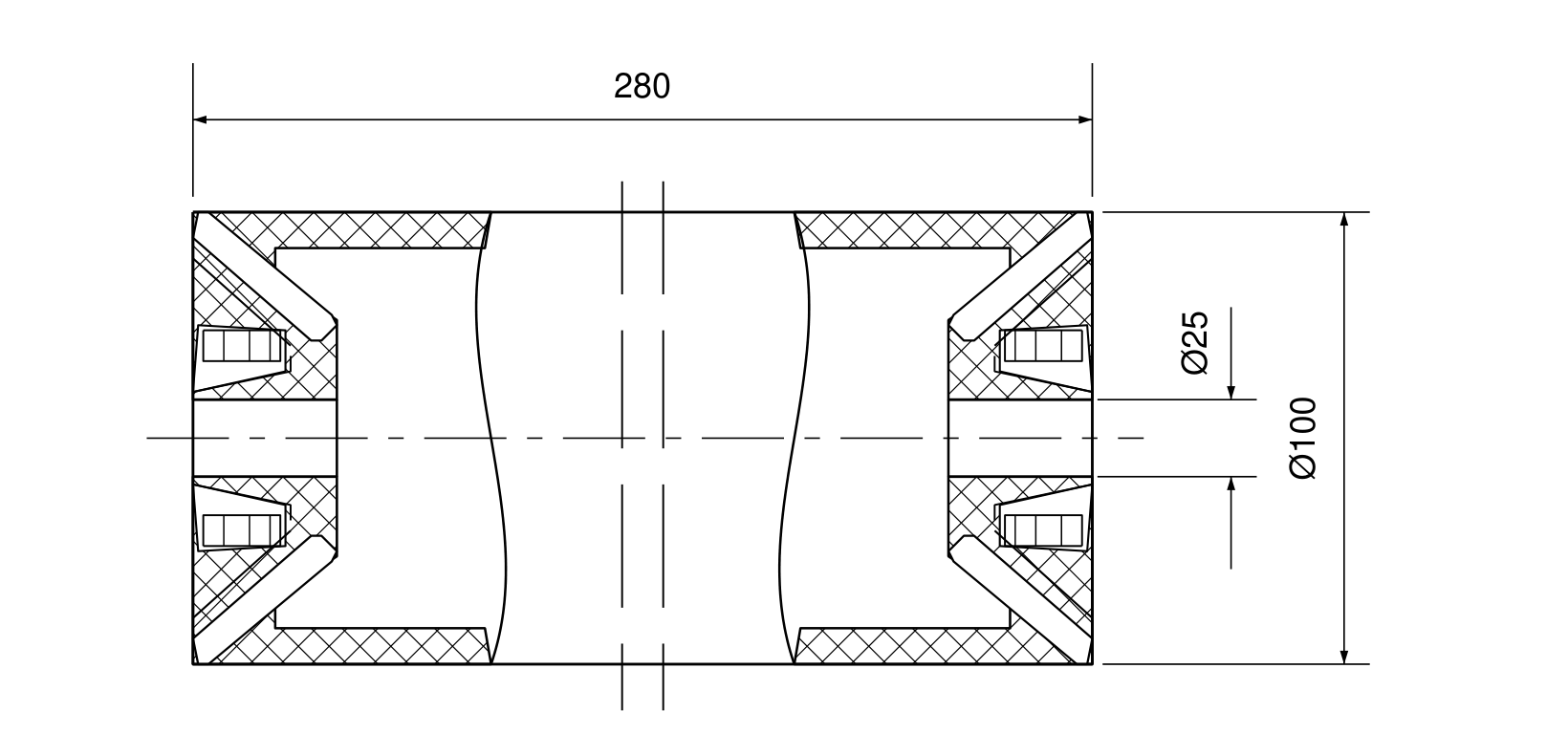

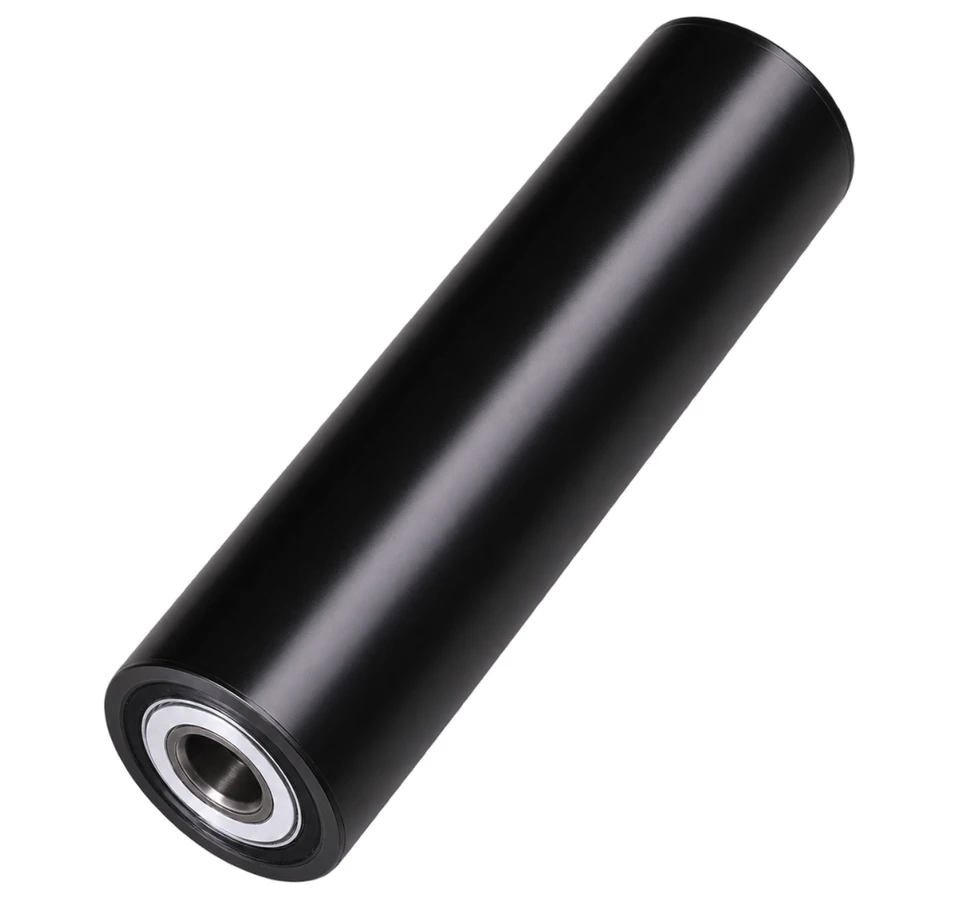

Rieter Scragg SDS 2
| Description | Specification |
|---|---|
| Roller Length | 280mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø25mm |

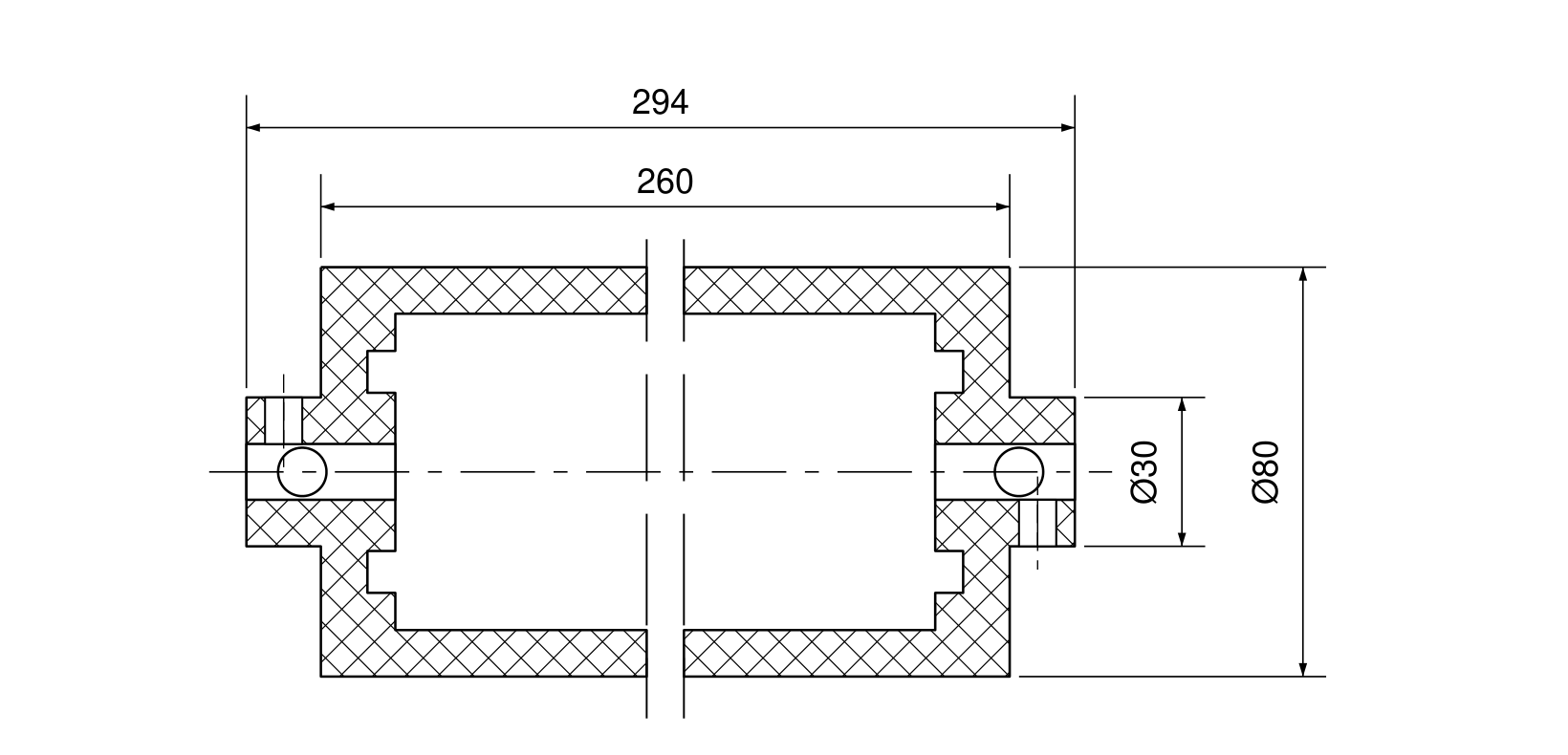

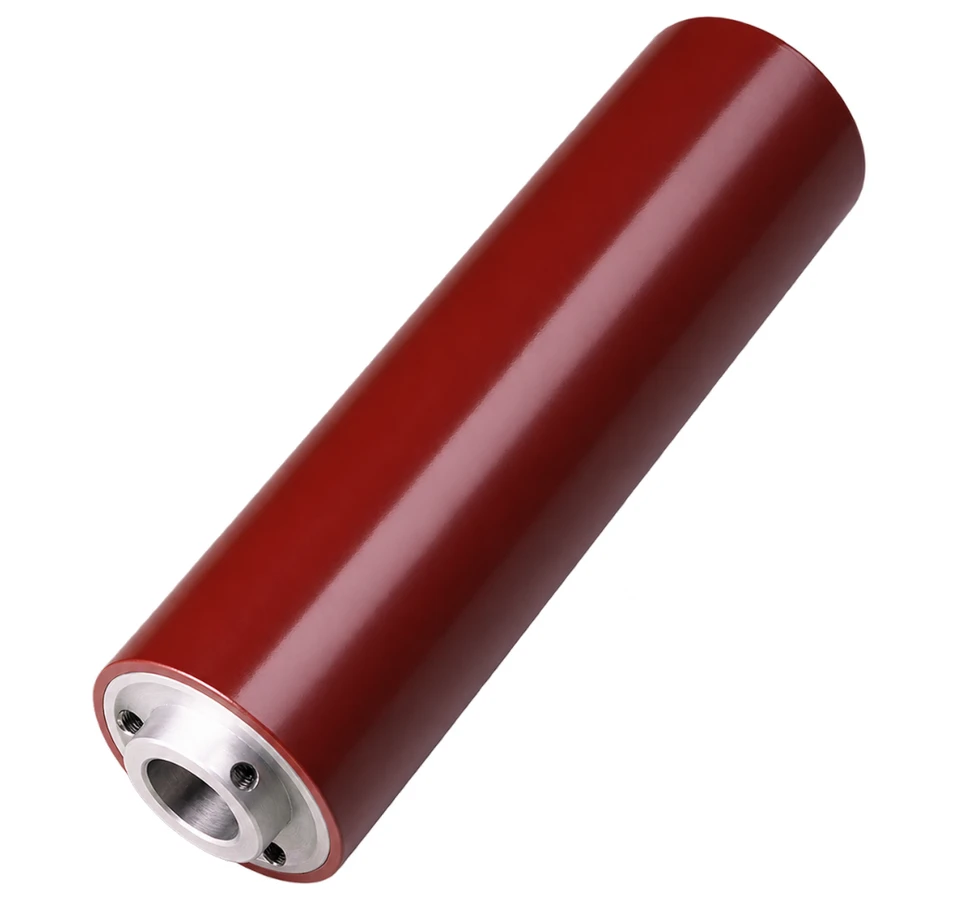

Rieter Scragg SDS 3
| Description | Specification |
|---|---|
| Overall Length | 294mm |
| Roller Body Length | 260mm |
| Outer Diameter | Ø80mm |
| End Diameter | Ø30mm |

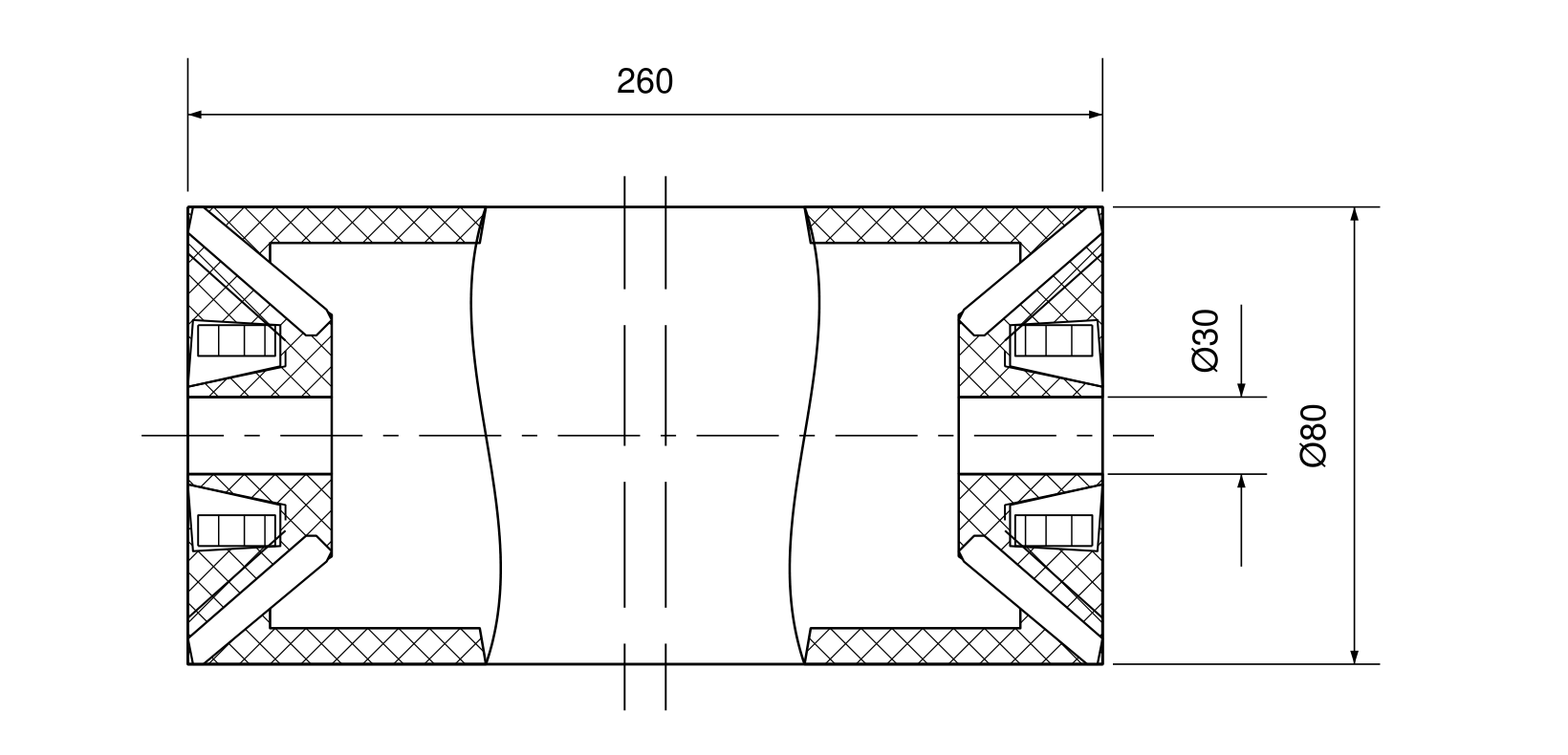

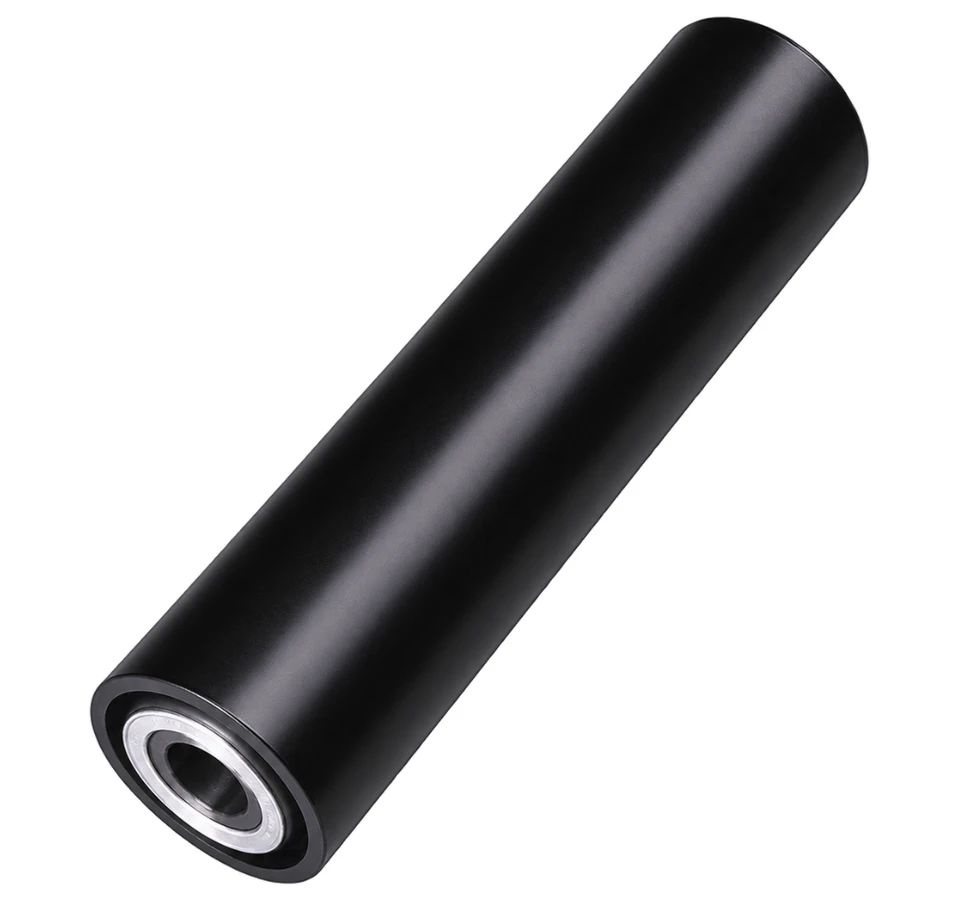

Rieter Scragg SDS 600-800
| Description | Specification |
|---|---|
| Roller Length | 260mm |
| Outer Diameter | Ø80mm |
| End Bore Diameter | Ø30mm |

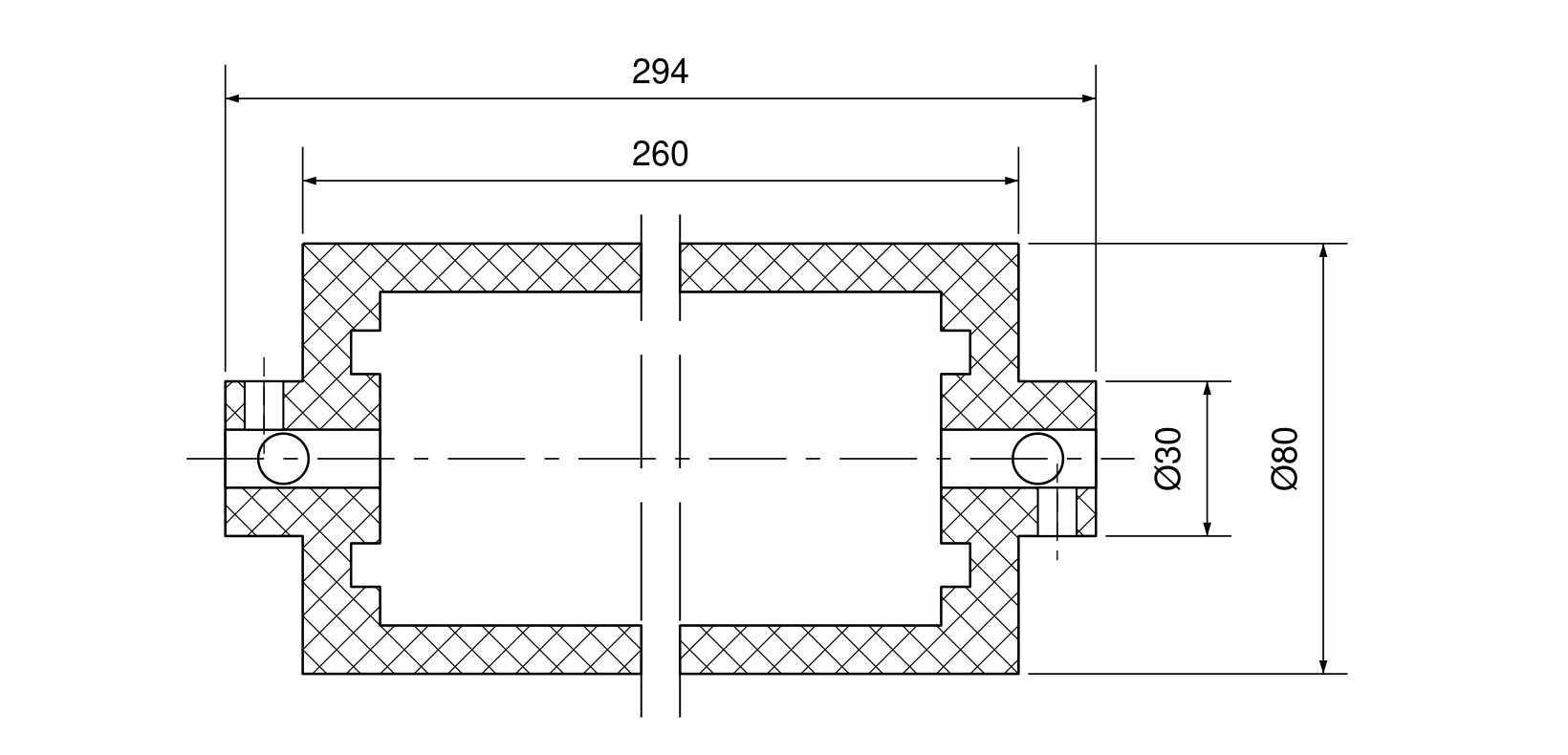

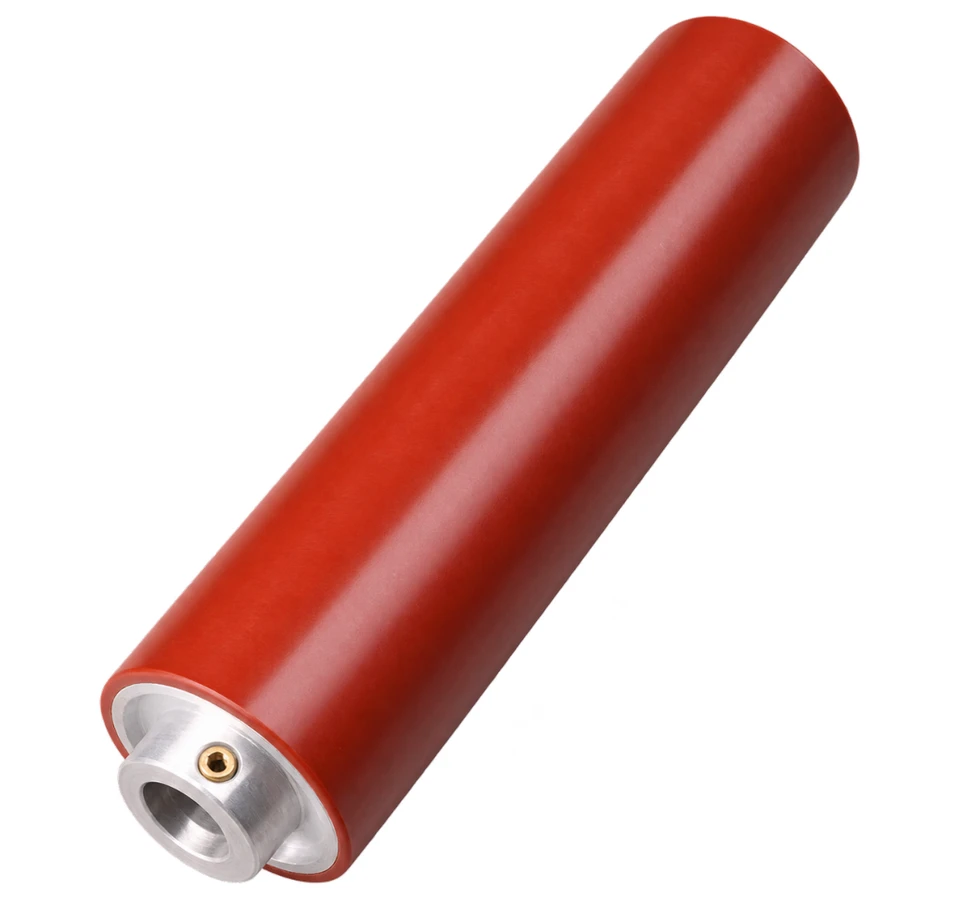

Rieter Scragg SDS 900-1200
| Description | Specification |
|---|---|
| Overall Length | 294mm |
| Roller Body Length | 260mm |
| Outer Diameter | Ø80mm |
| End Diameter | Ø30mm |
Rieter ICBT Take Up Rollers

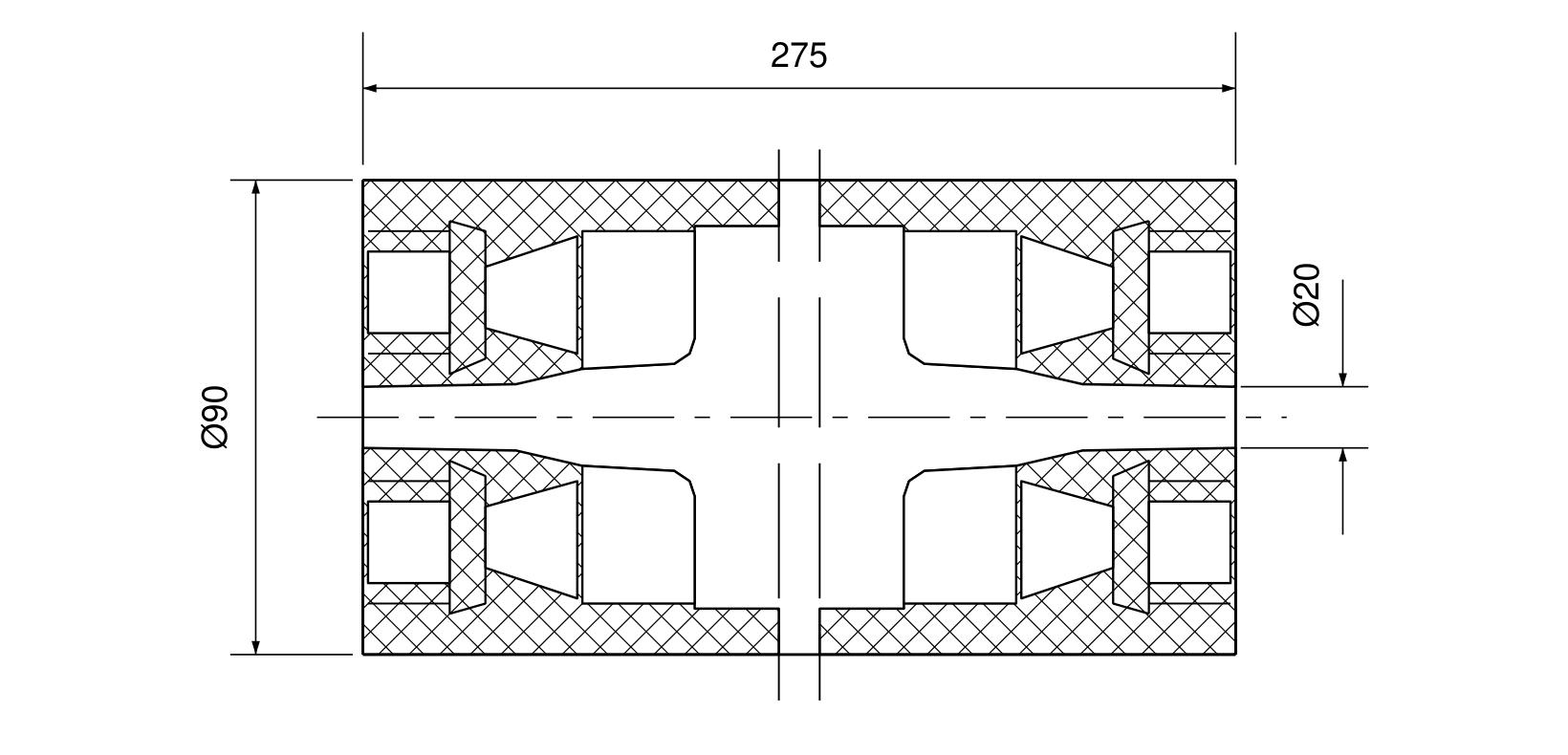

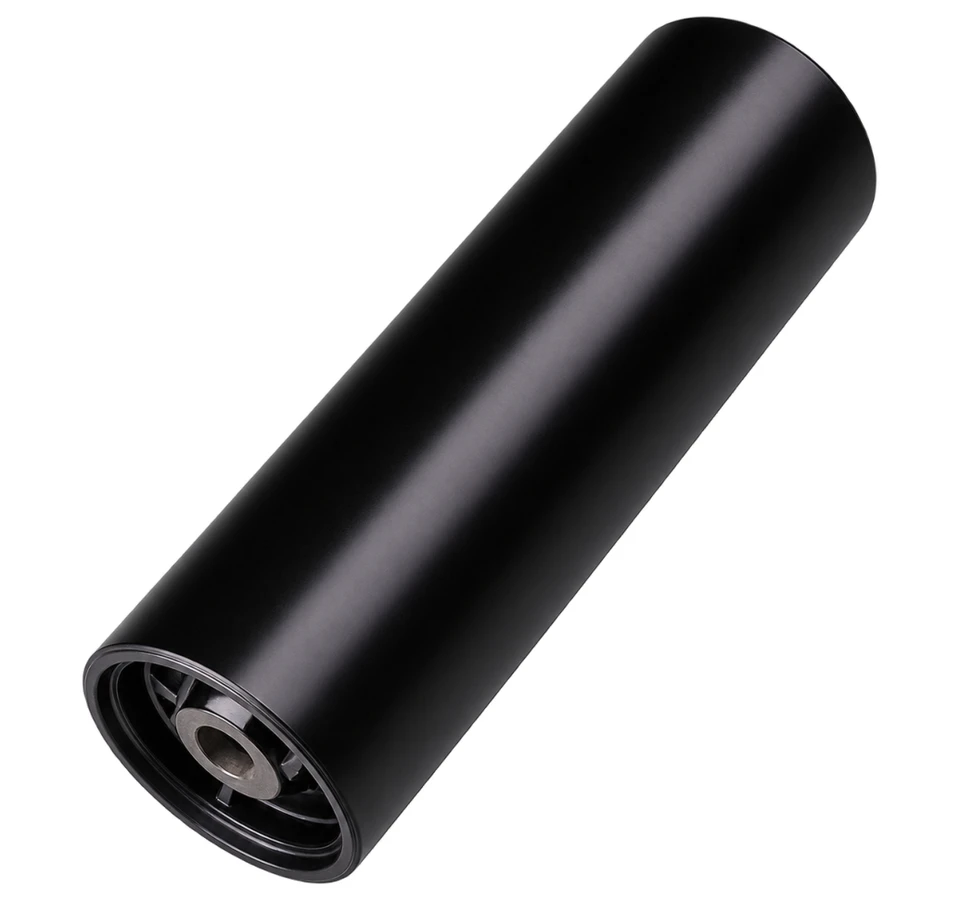

Rieter ICBT 8E2/3 & 10E2/3 Version 1
| Description | Specification |
|---|---|
| Roller Length | 275mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø20mm |

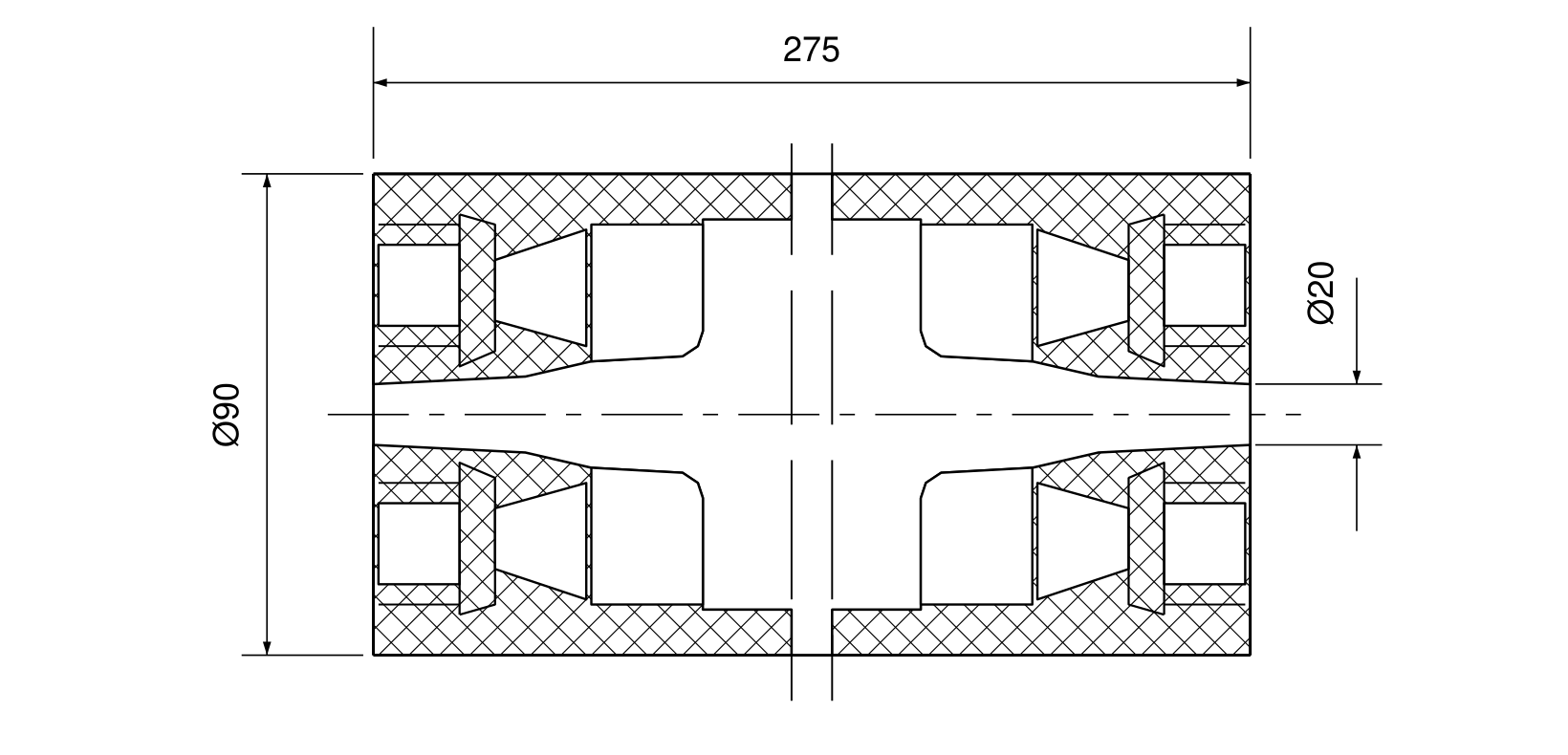

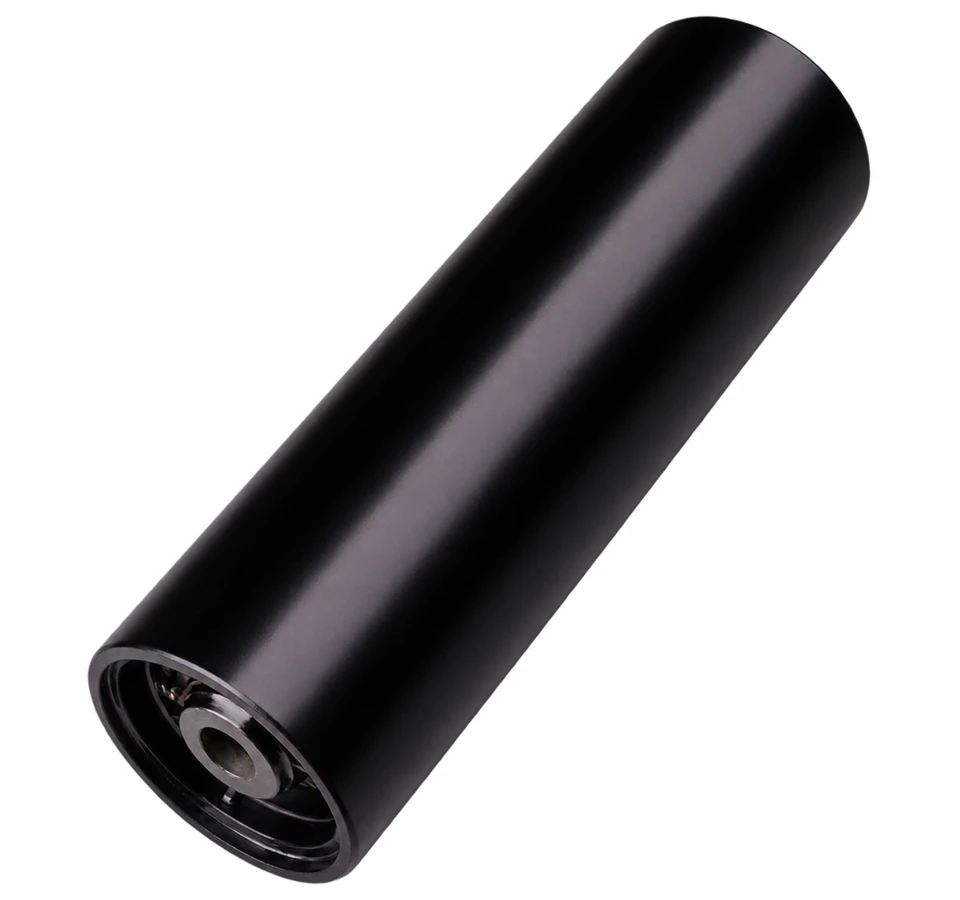

Rieter ICBT 8E2/3 & 10E2/3 Version 2
| Description | Specification |
|---|---|
| Roller Length | 275mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø20mm |

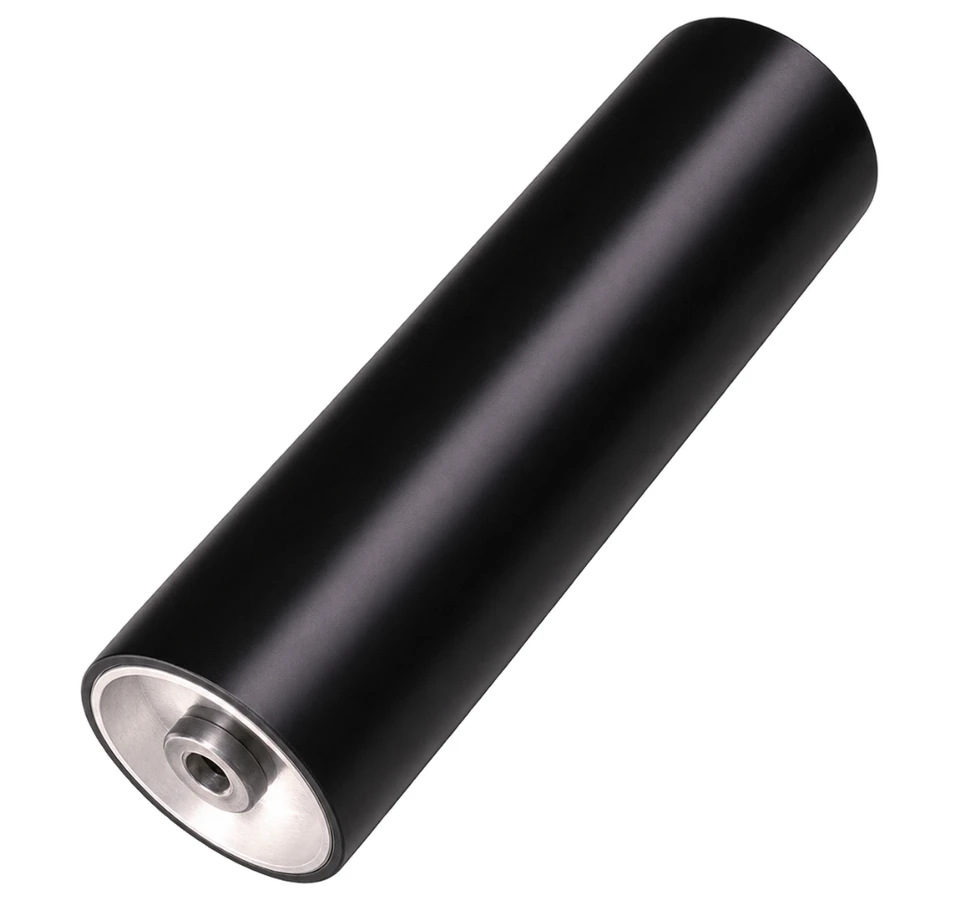

Rieter ICBT 12E3
| Description | Specification |
|---|---|
| Roller Length | To confirm |
| Outer Diameter | To confirm |
| End Bore Diameter | To confirm |

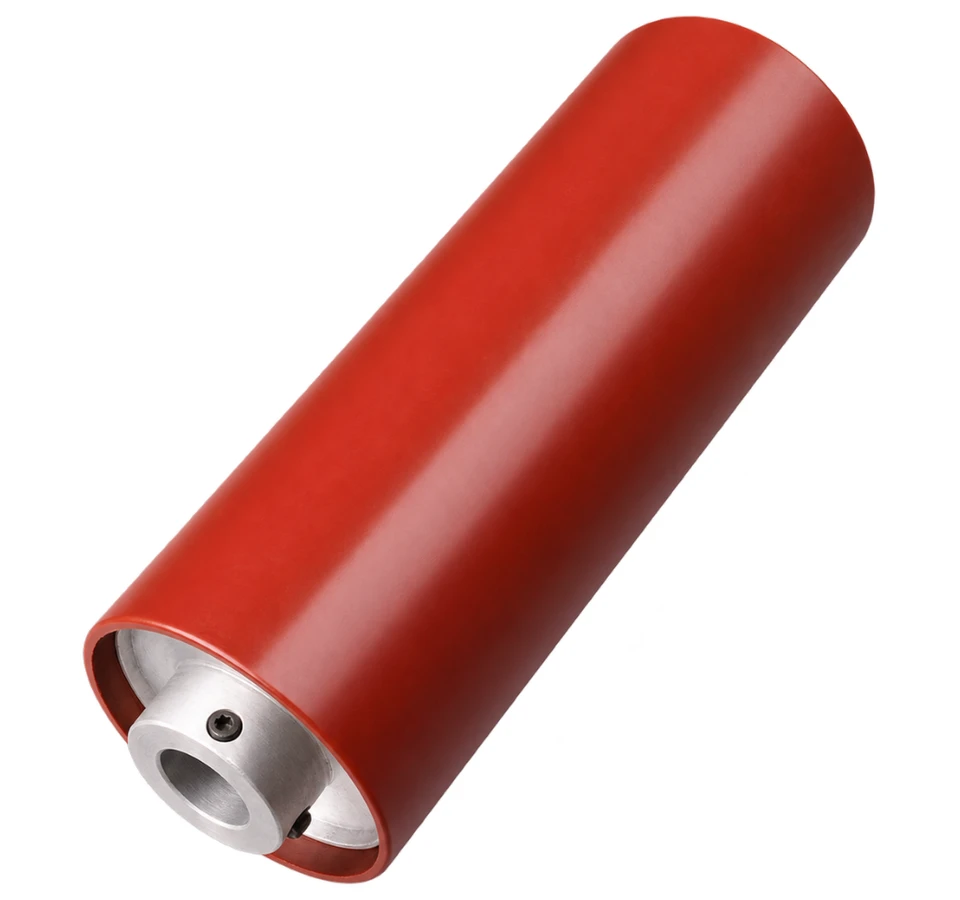

Rieter ICBT 001
| Description | Specification |
|---|---|
| Overall Length | 284mm |
| Roller Body Length | 265mm |
| Outer Diameter | Ø100mm |
| End Diameter | Ø30mm |

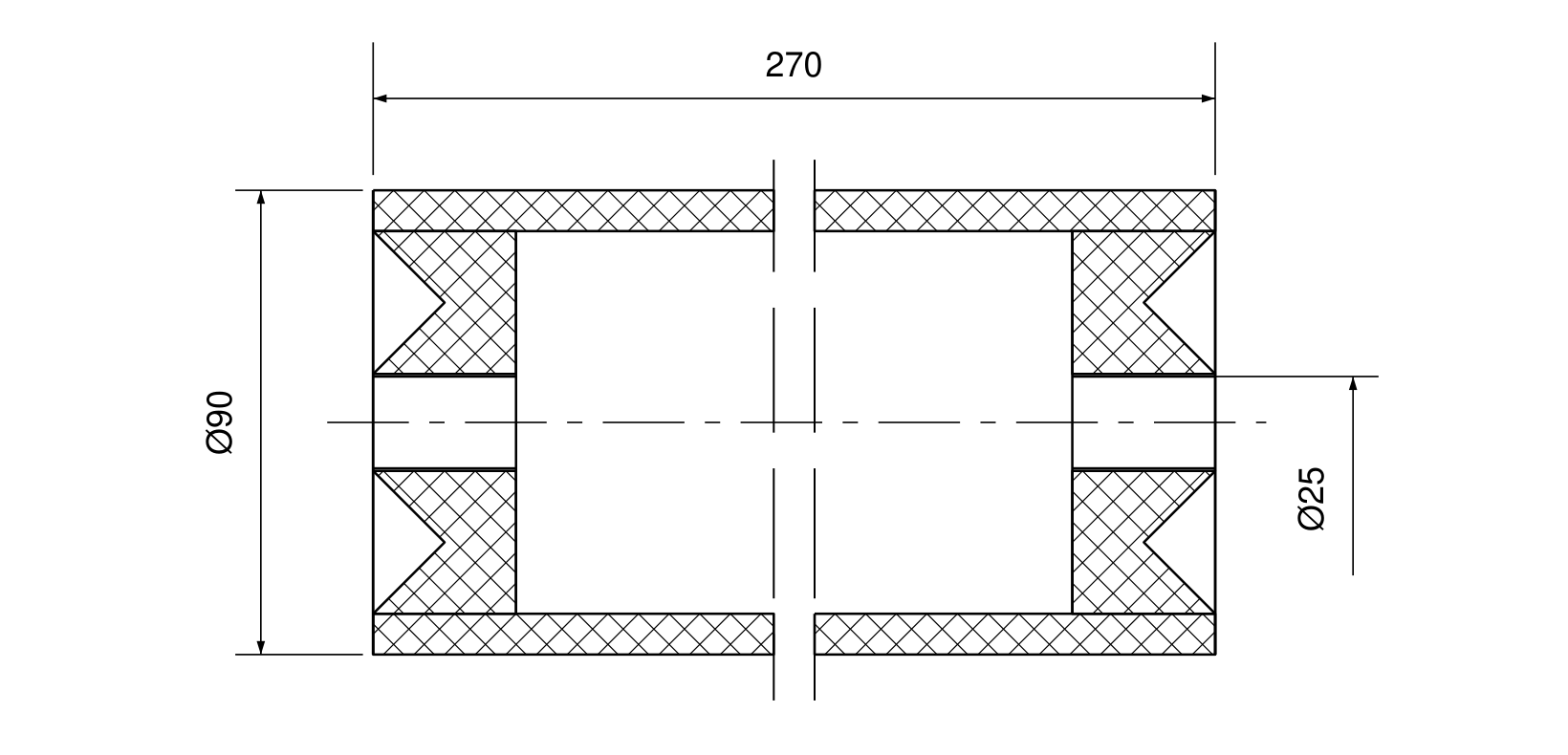

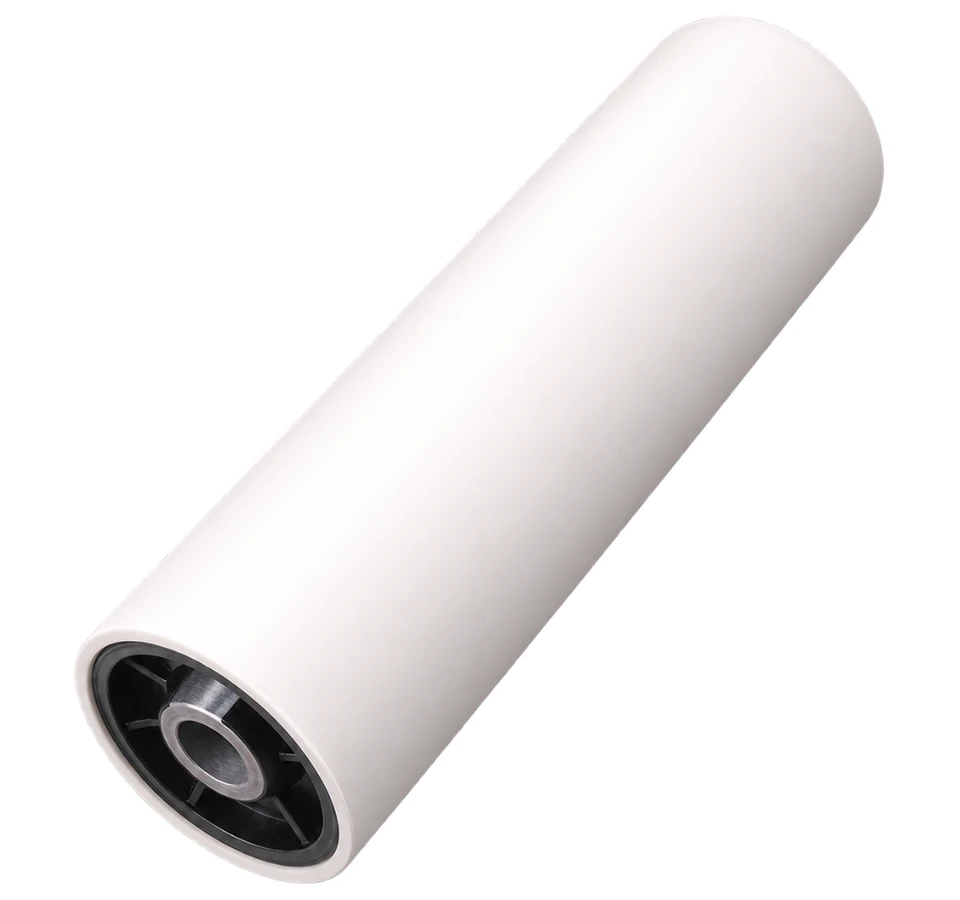

Rieter ICBT 002
| Description | Specification |
|---|---|
| Roller Length | 270mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø25mm |
Murata | TMT Take Up Rollers

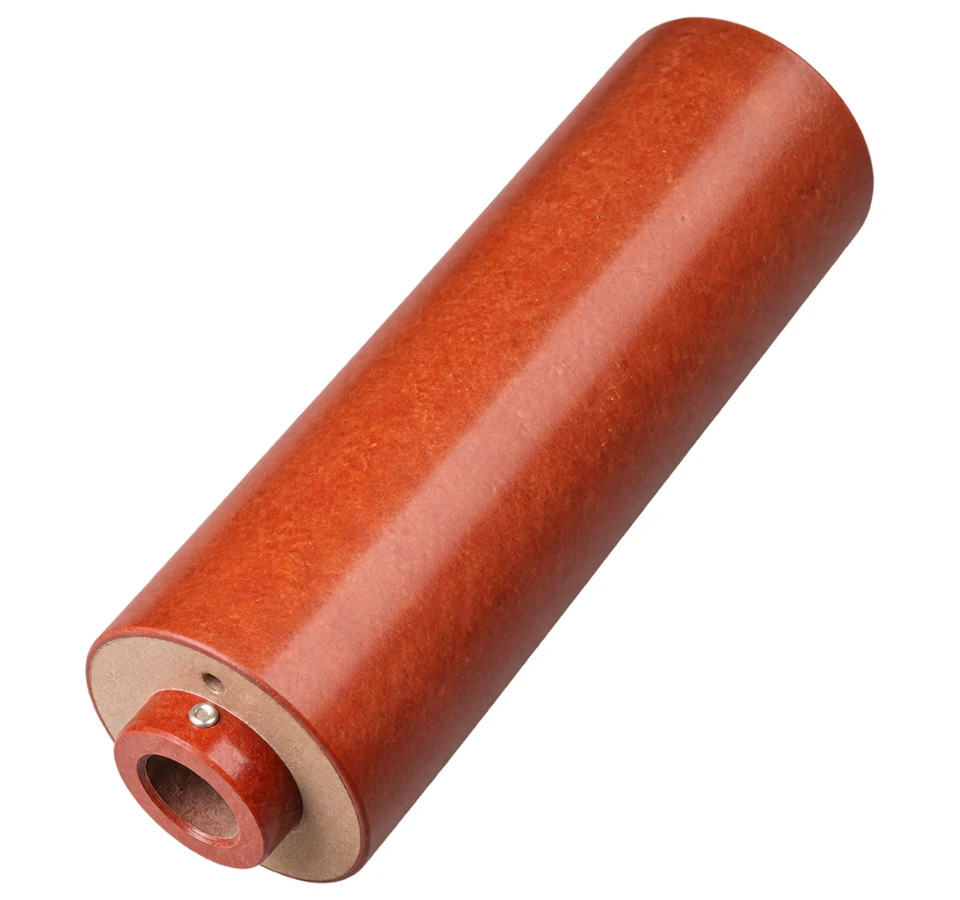

Murata | TMT 33F
| Description | Specification |
|---|---|
| Overall Length | 294mm |
| Roller Body Length | 265mm |
| Outer Diameter | Ø90mm |
| End Diameter | Ø30mm |

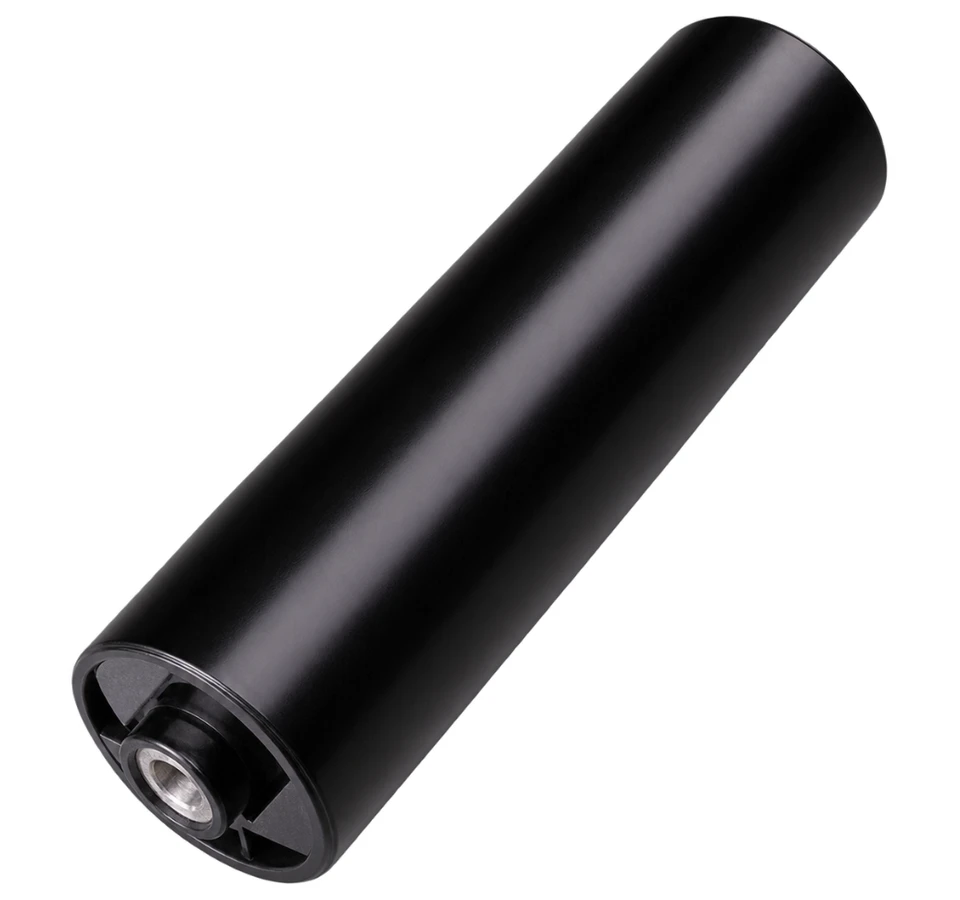

Murata | TMT 33H 290-34446-50
| Description | Specification |
|---|---|
| Overall Length | 294mm |
| Roller Body Length | 265mm |
| Outer Diameter | Ø100mm |
| End Diameter | Ø30mm |

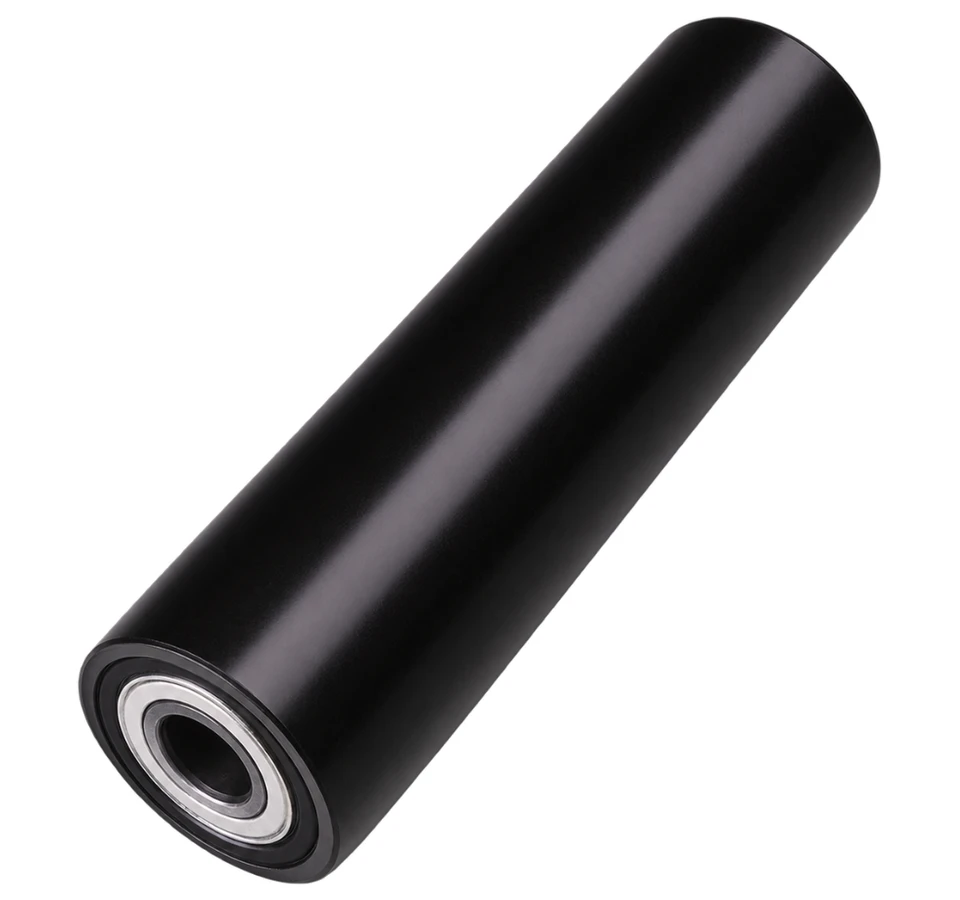

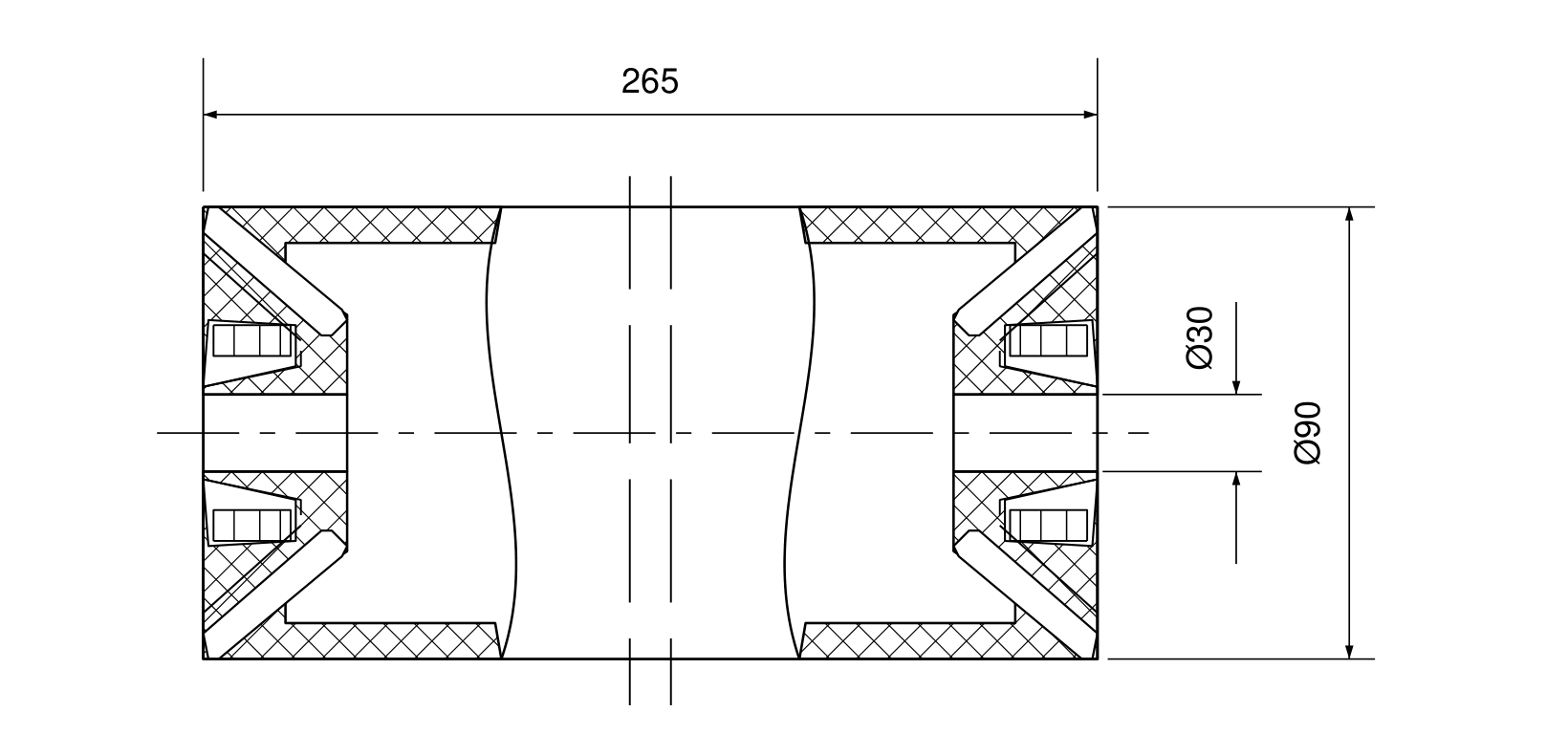

Murata | TMT 33H Bearing Version
| Description | Specification |
|---|---|
| Roller Length | 265mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø30mm |
RPR Take Up Rollers

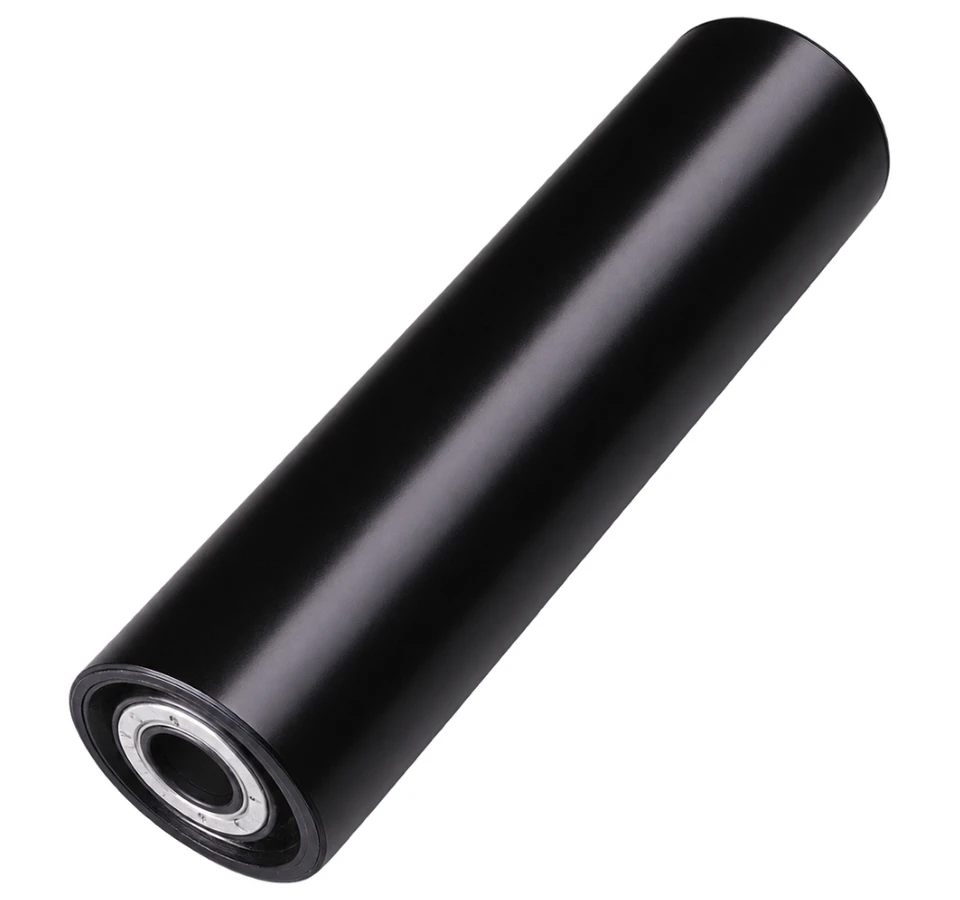

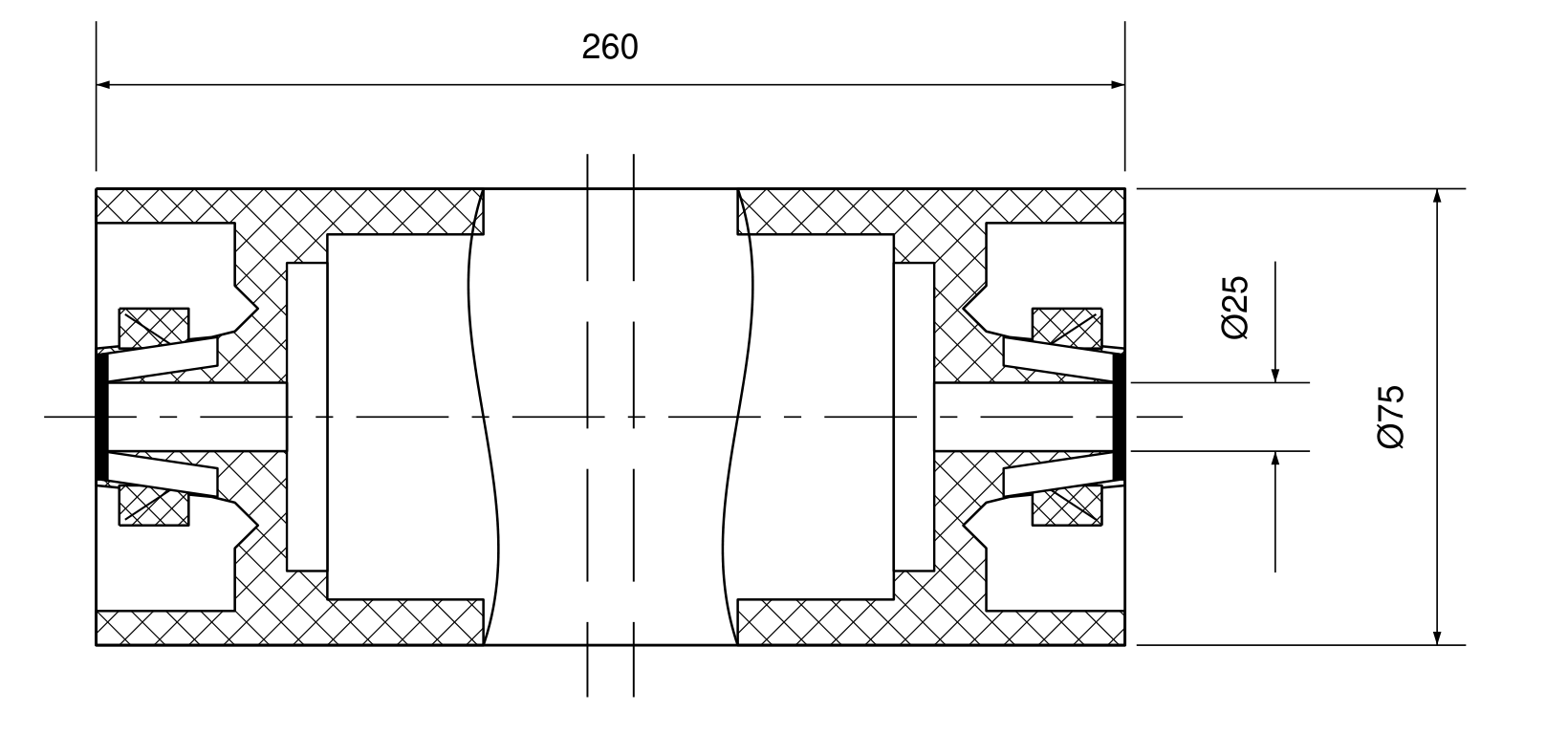

RPR 001
| Description | Specification |
|---|---|
| Roller Length | 260mm |
| Outer Diameter | Ø75mm |
| End Bore Diameter | Ø25mm |

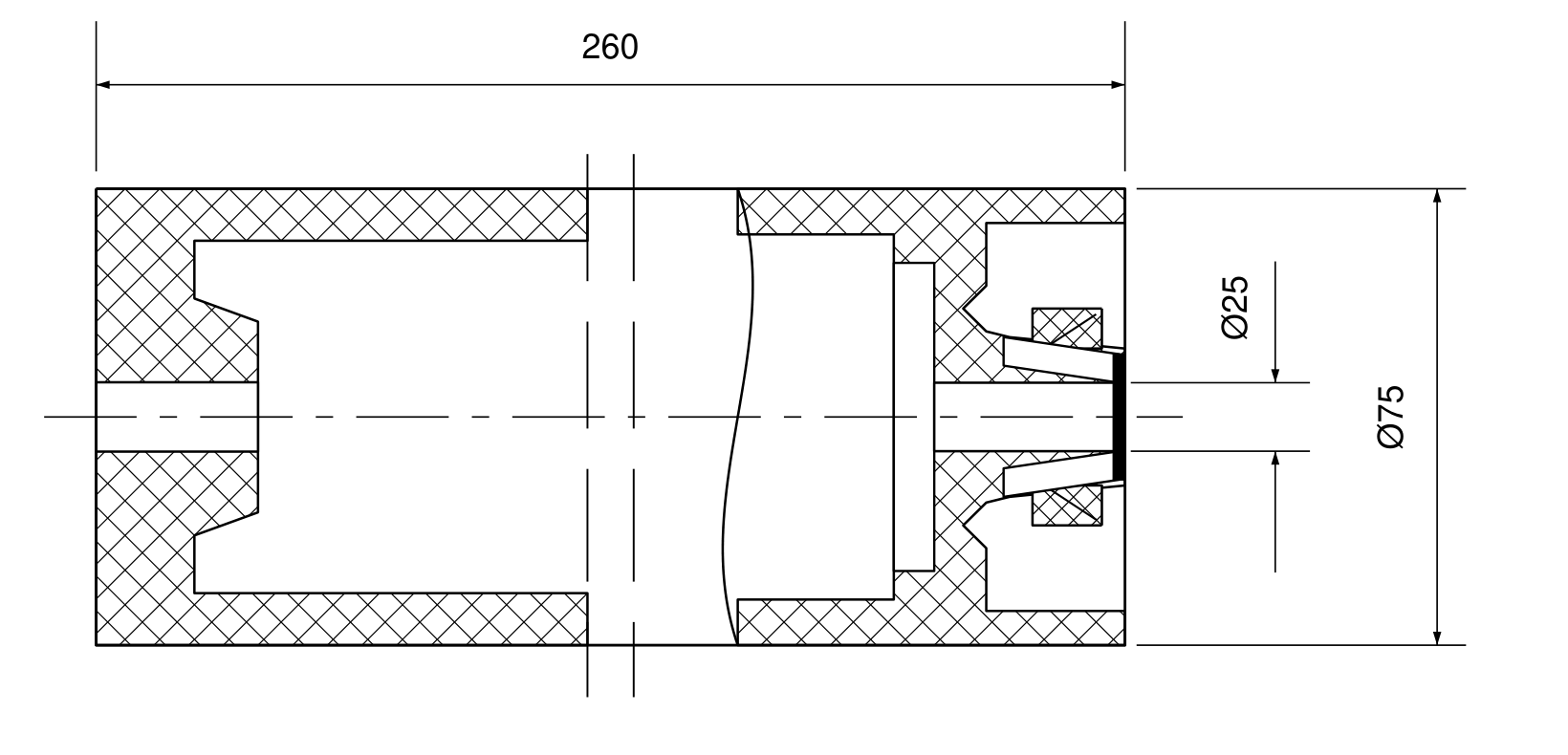

RPR 002
| Description | Specification |
|---|---|
| Roller Length | 260mm |
| Outer Diameter | Ø75mm |
| End Bore Diameter | Ø25mm |

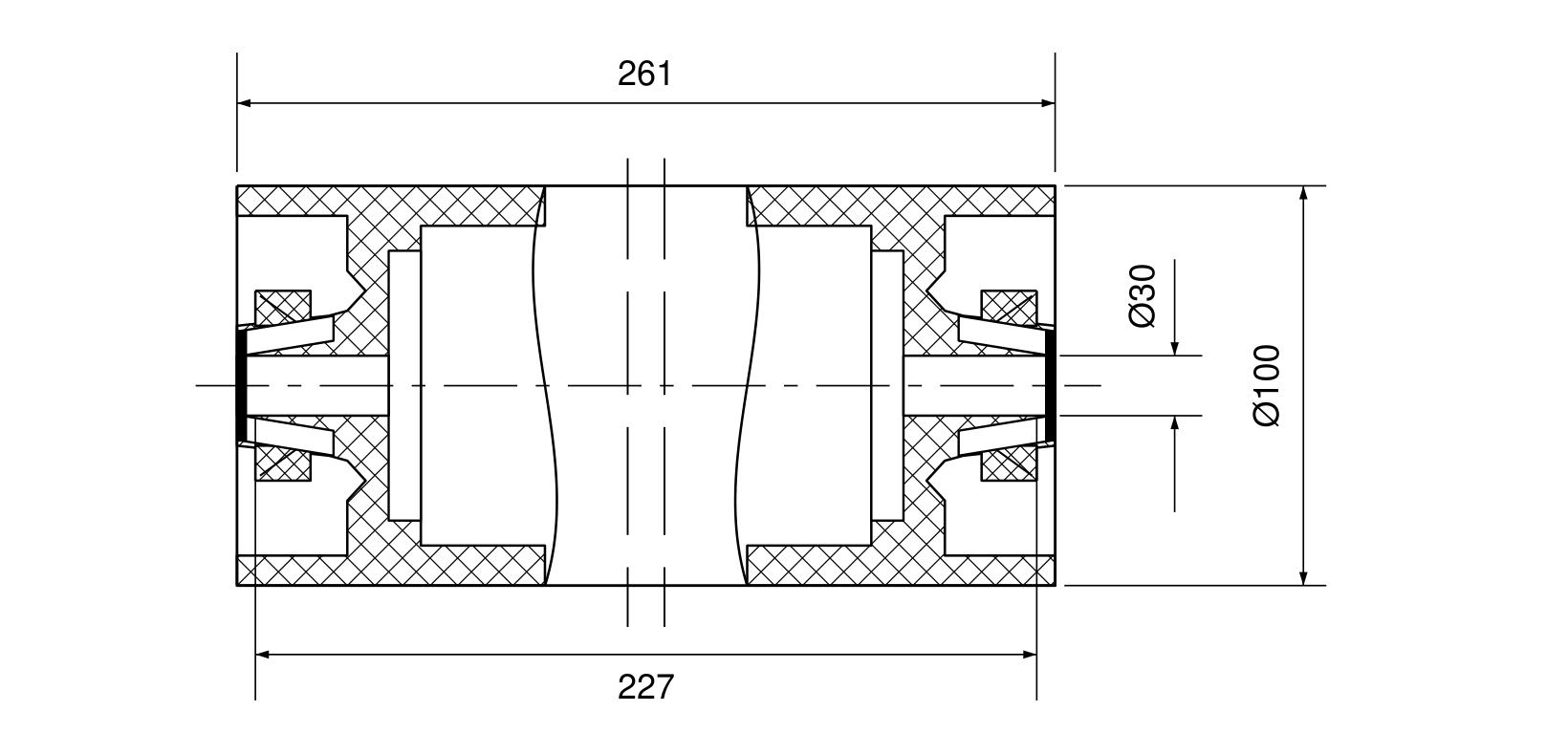

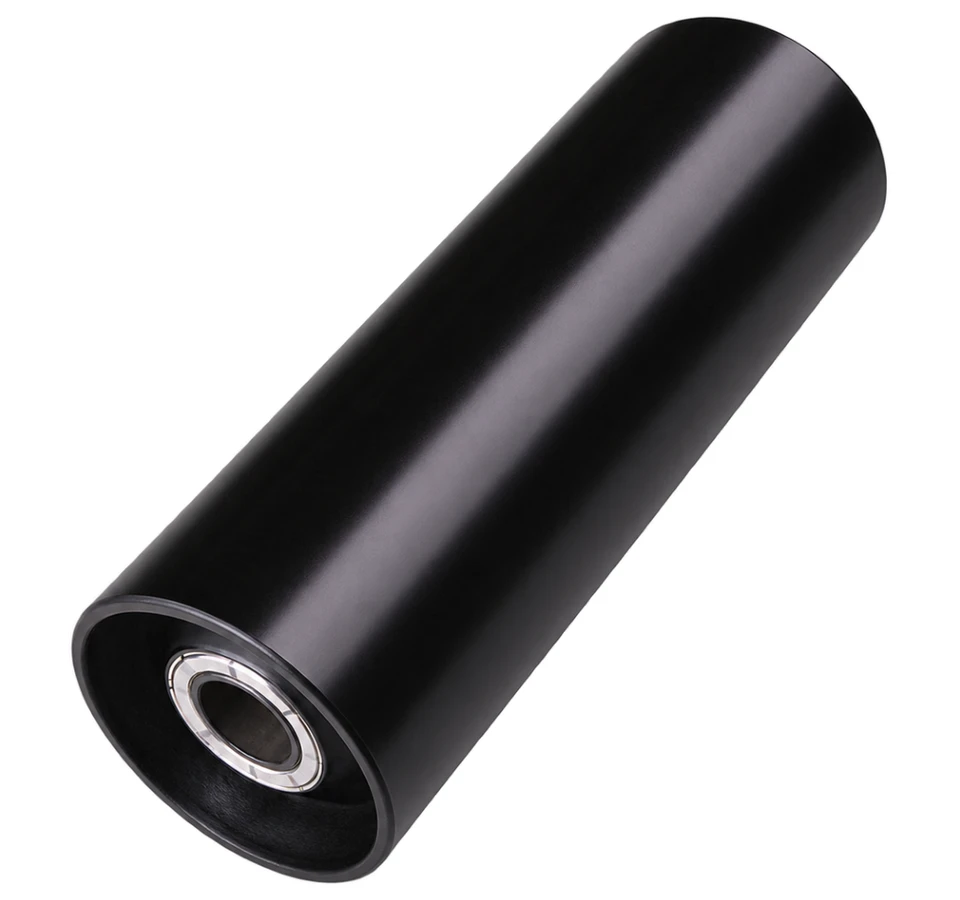

RPR 003
| Description | Specification |
|---|---|
| Overall Length | 261mm |
| Axial Dimension (as Shown) | 227mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø30mm |
Various Take Up Rollers

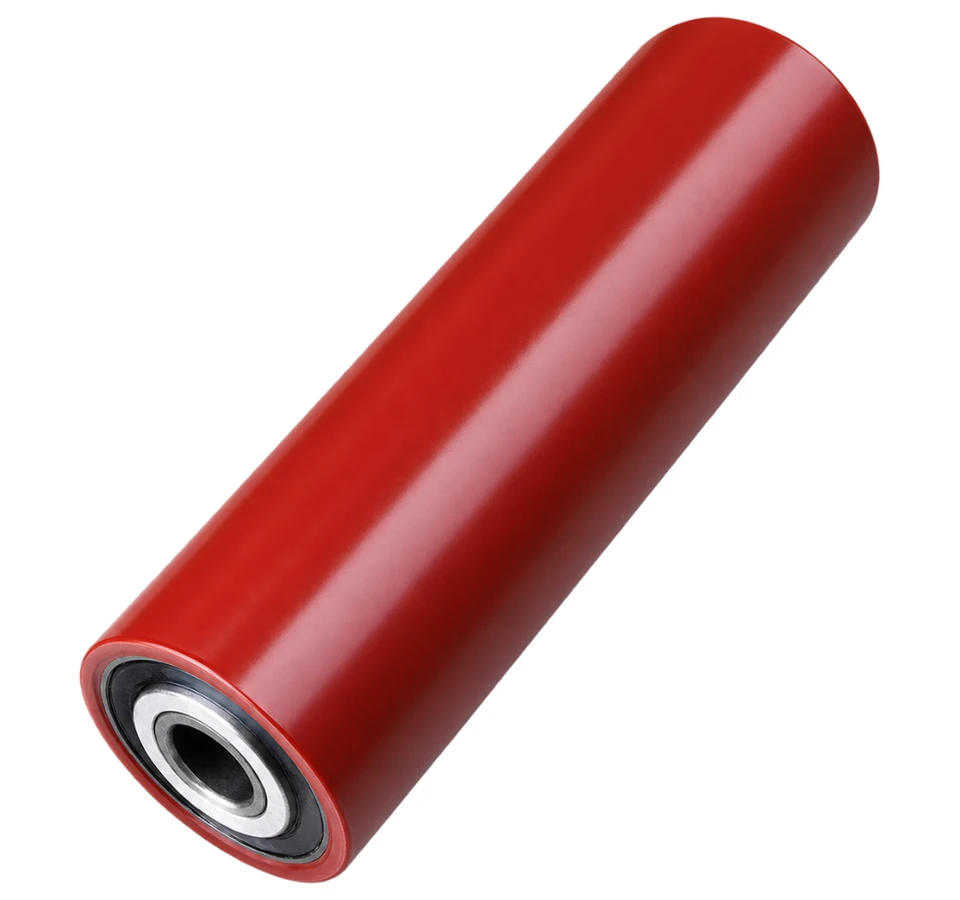

Various 800
| Description | Specification |
|---|---|
| Roller Length | 275mm |
| Outer Diameter | Ø90mm |
| End Bore Diameter | Ø25mm |

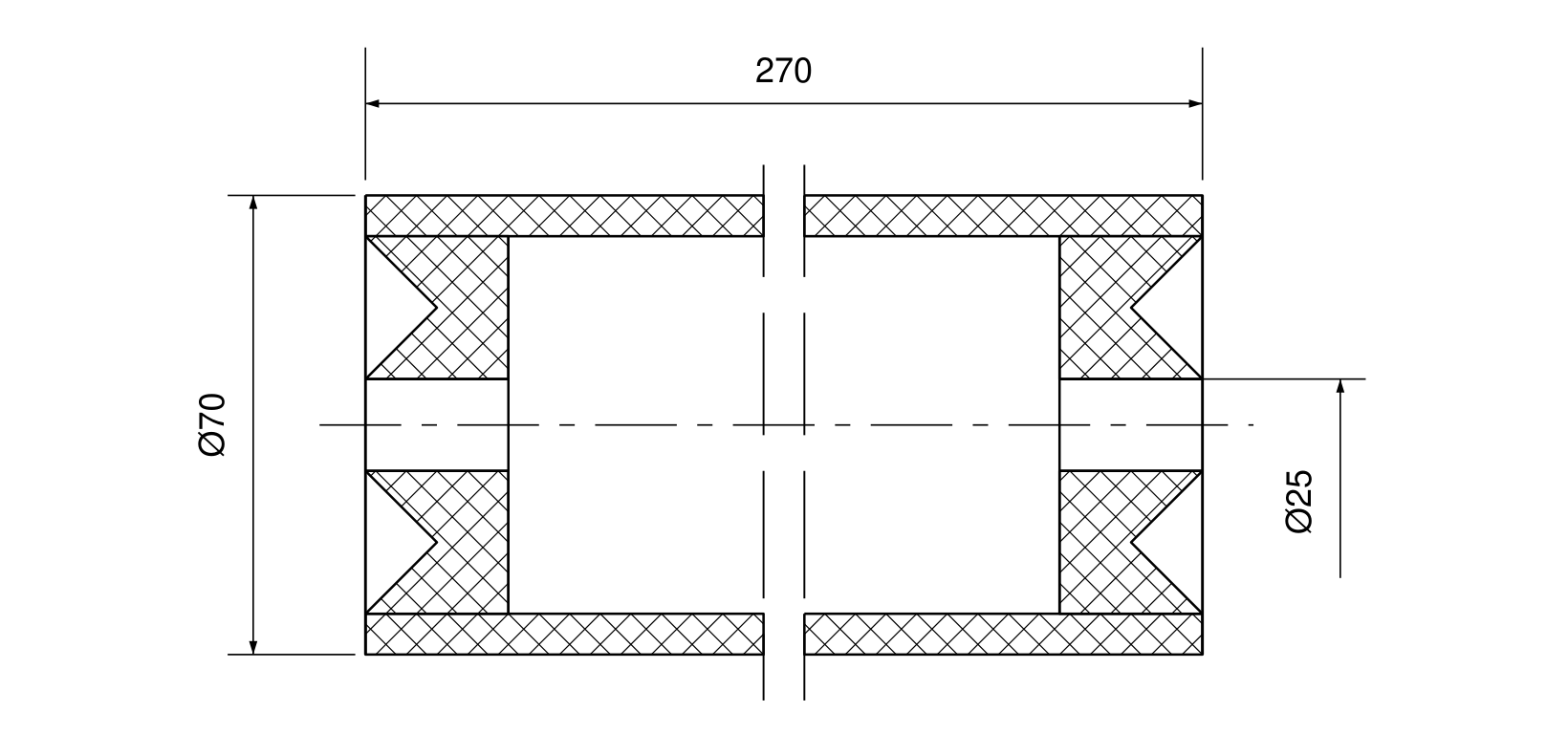

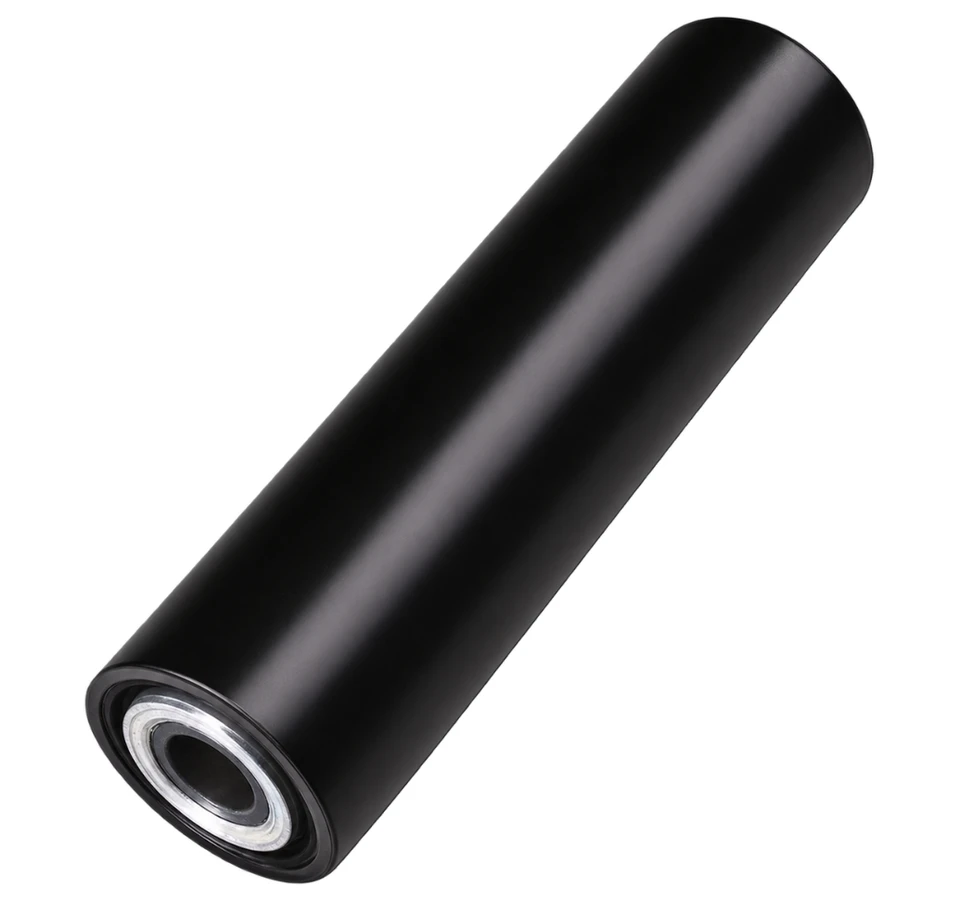

Various 005
| Description | Specification |
|---|---|
| Roller Length | 270mm |
| Outer Diameter | Ø70mm |
| End Bore Diameter | Ø25mm |

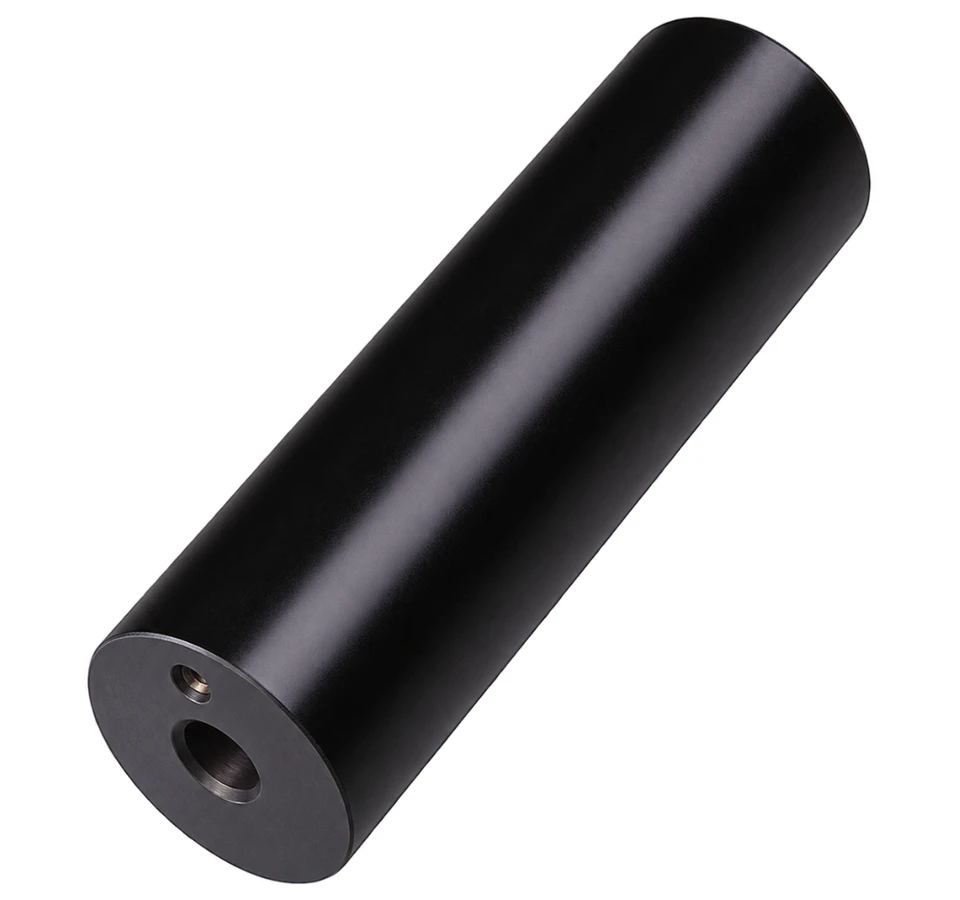

Various 006
| Description | Specification |
|---|---|
| Roller Length | 210mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

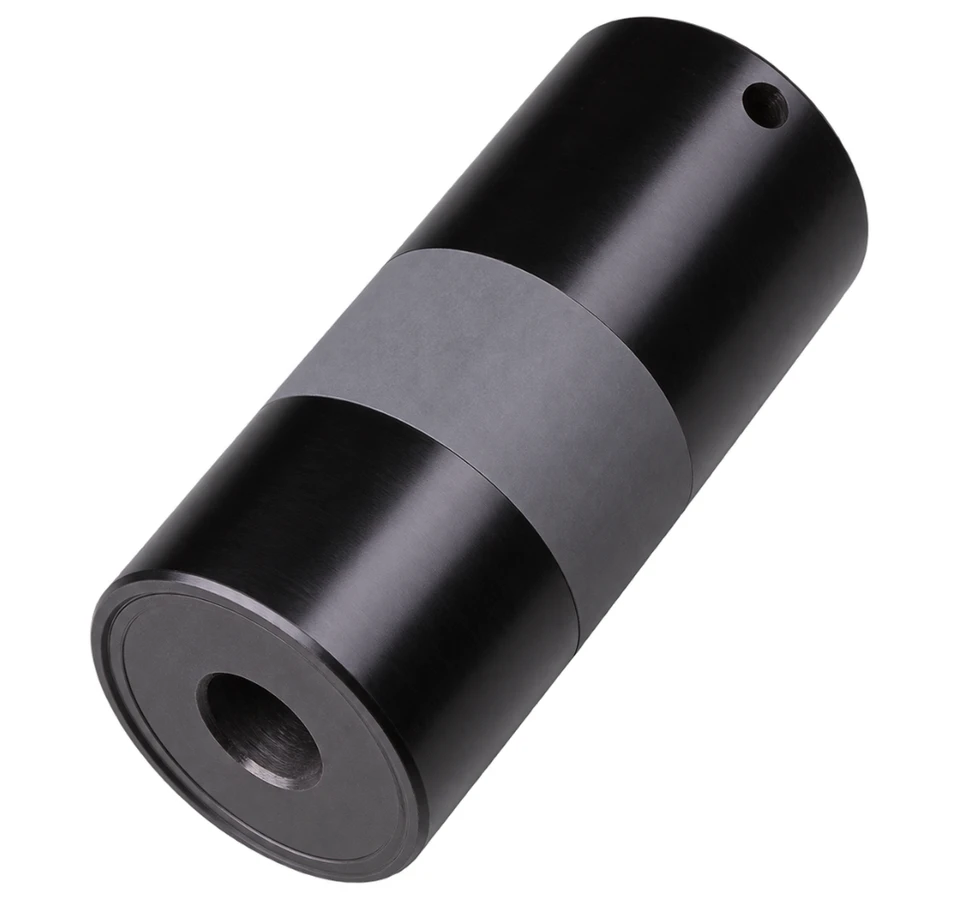

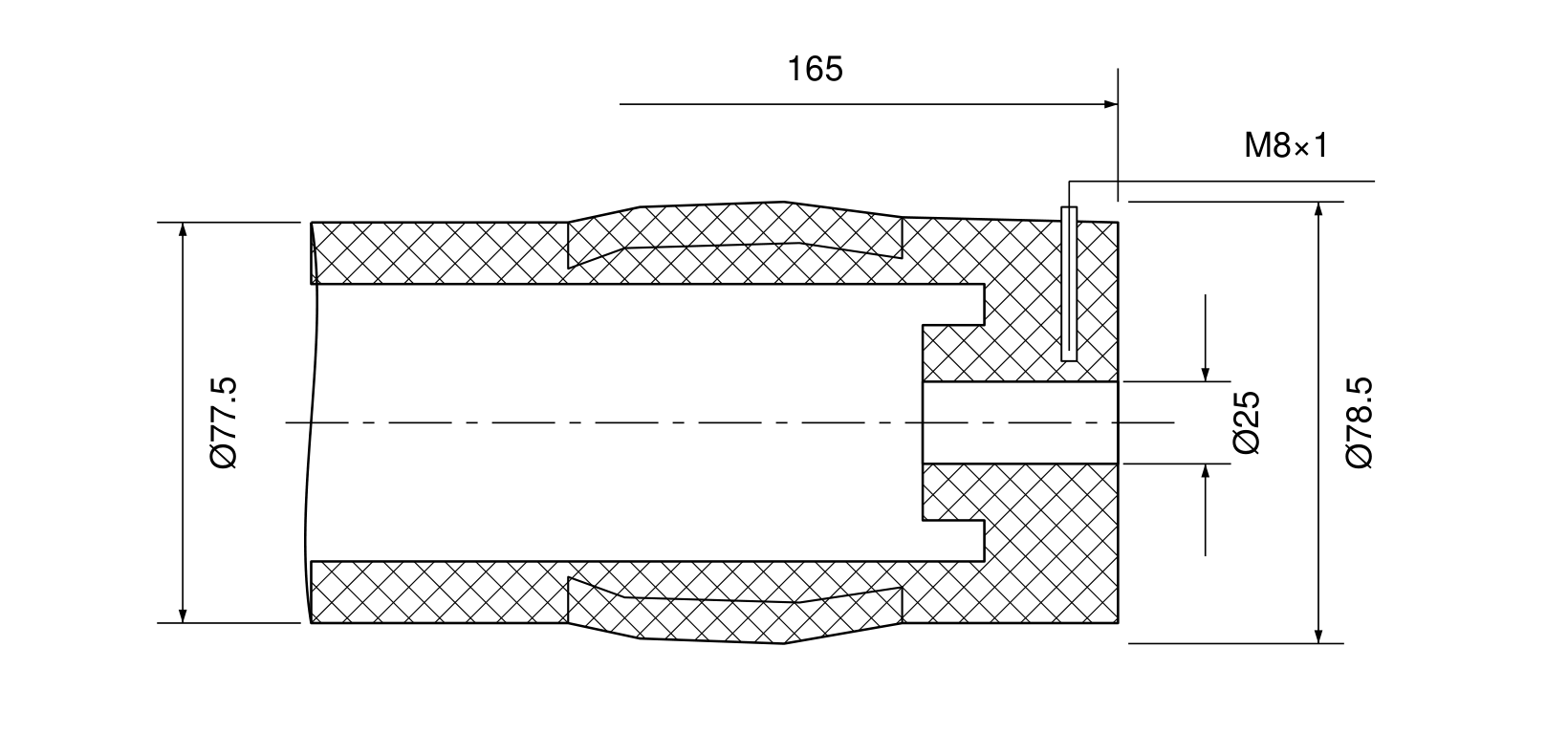

Various 007
| Description | Specification |
|---|---|
| Axial Dimension (as Shown) | 165mm |
| Body Diameter | Ø77.5mm |
| Band Diameter | Ø78.5mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×1 |

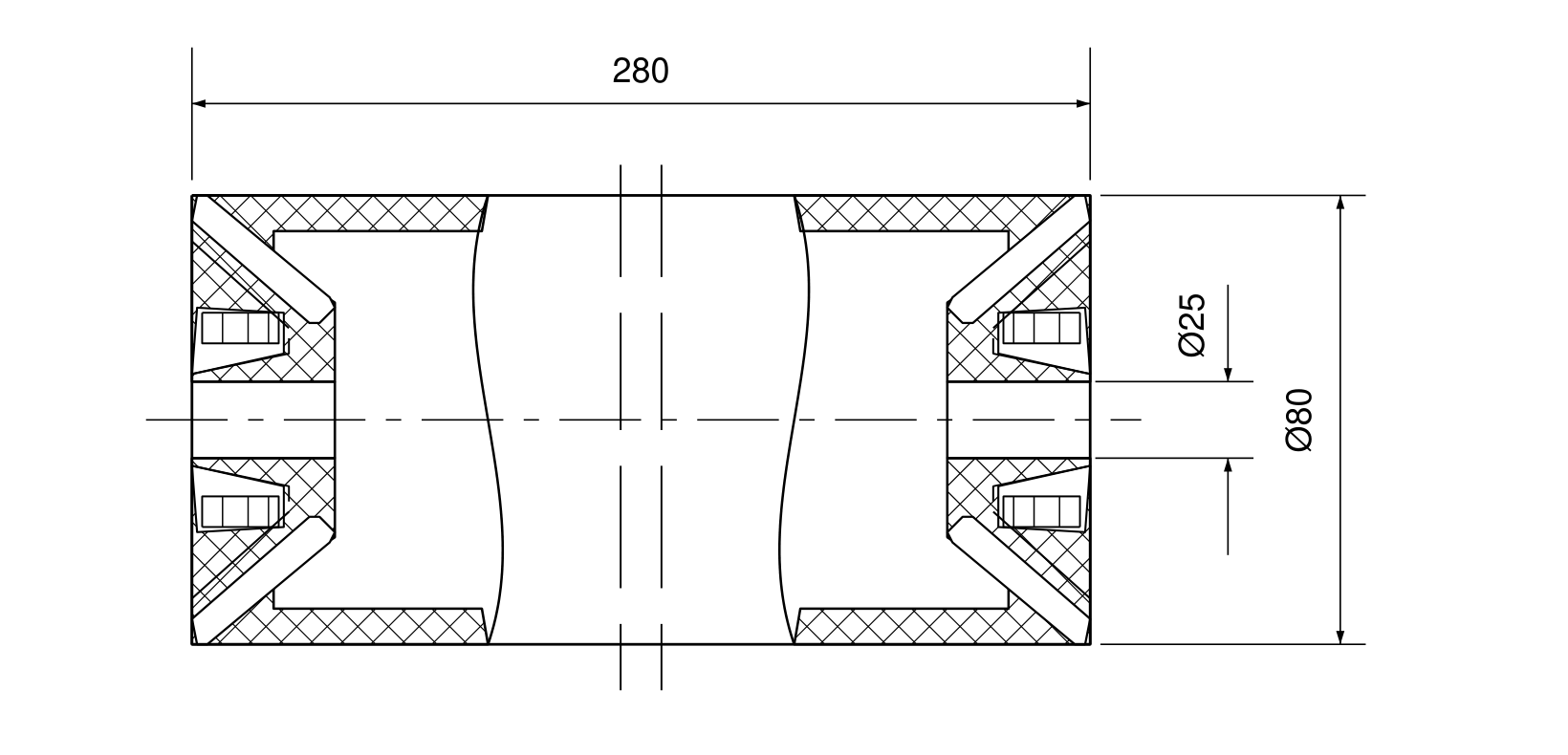

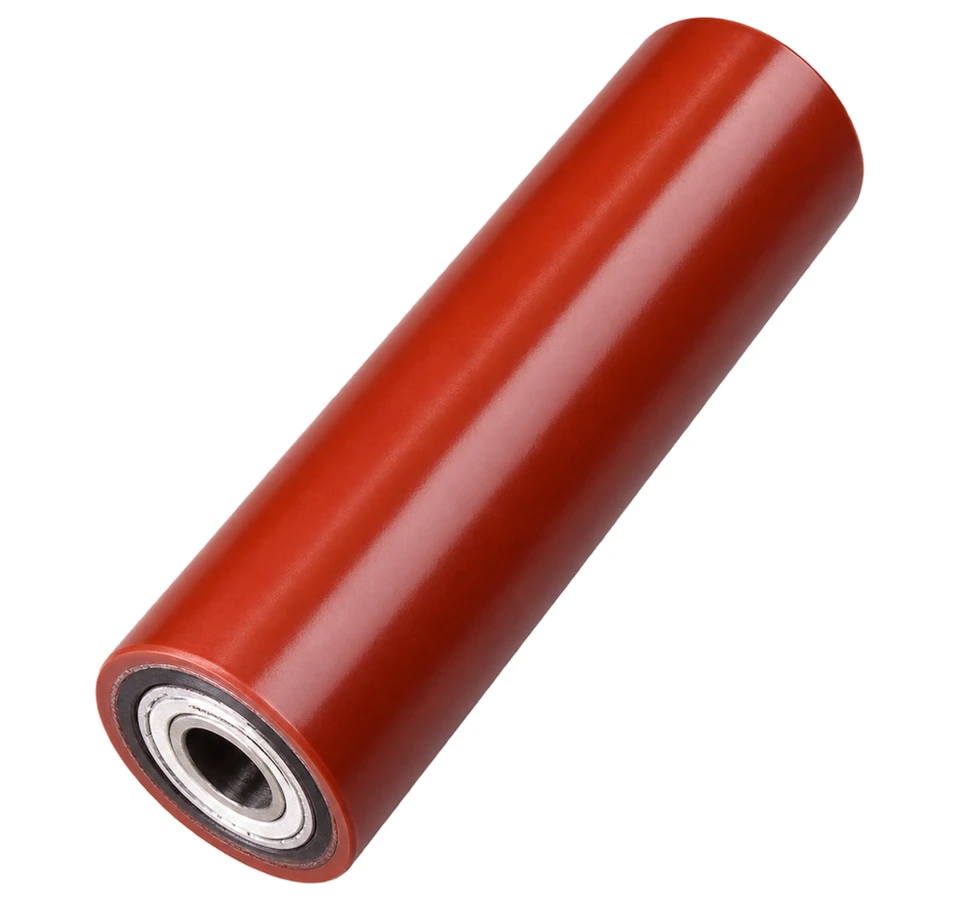

Various 008
| Description | Specification |
|---|---|
| Roller Length | 280mm |
| Outer Diameter | Ø80mm |
| End Bore Diameter | Ø25mm |

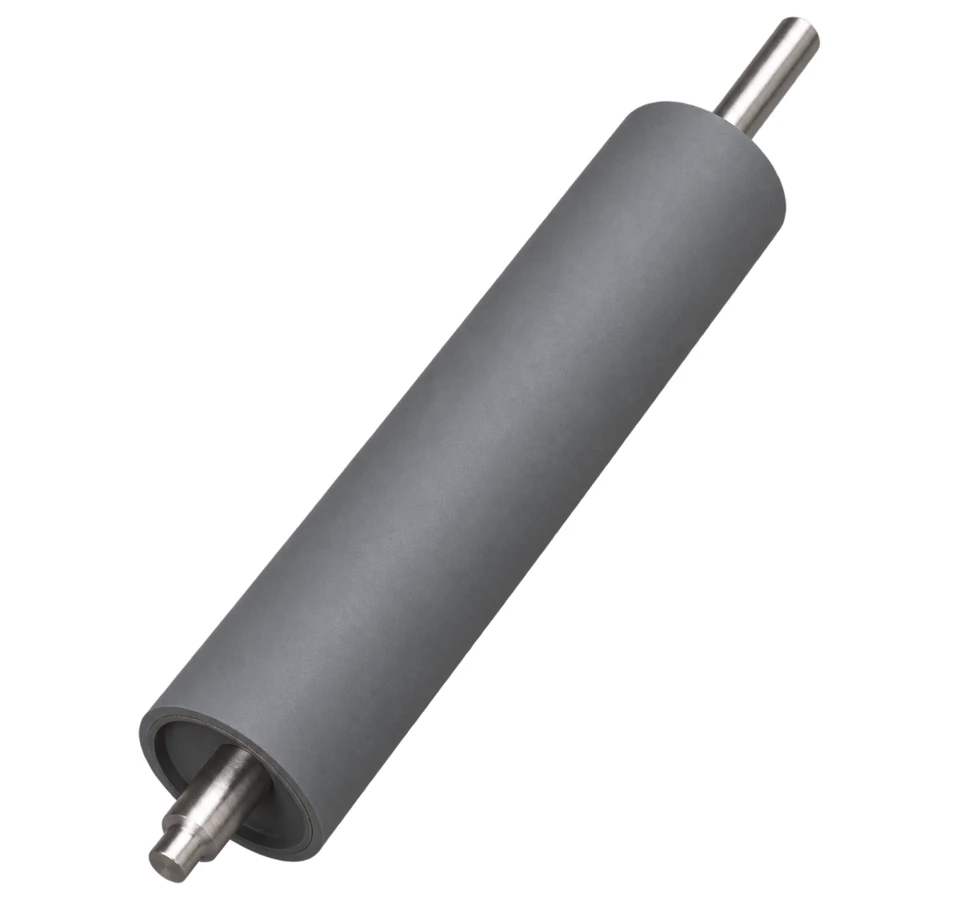

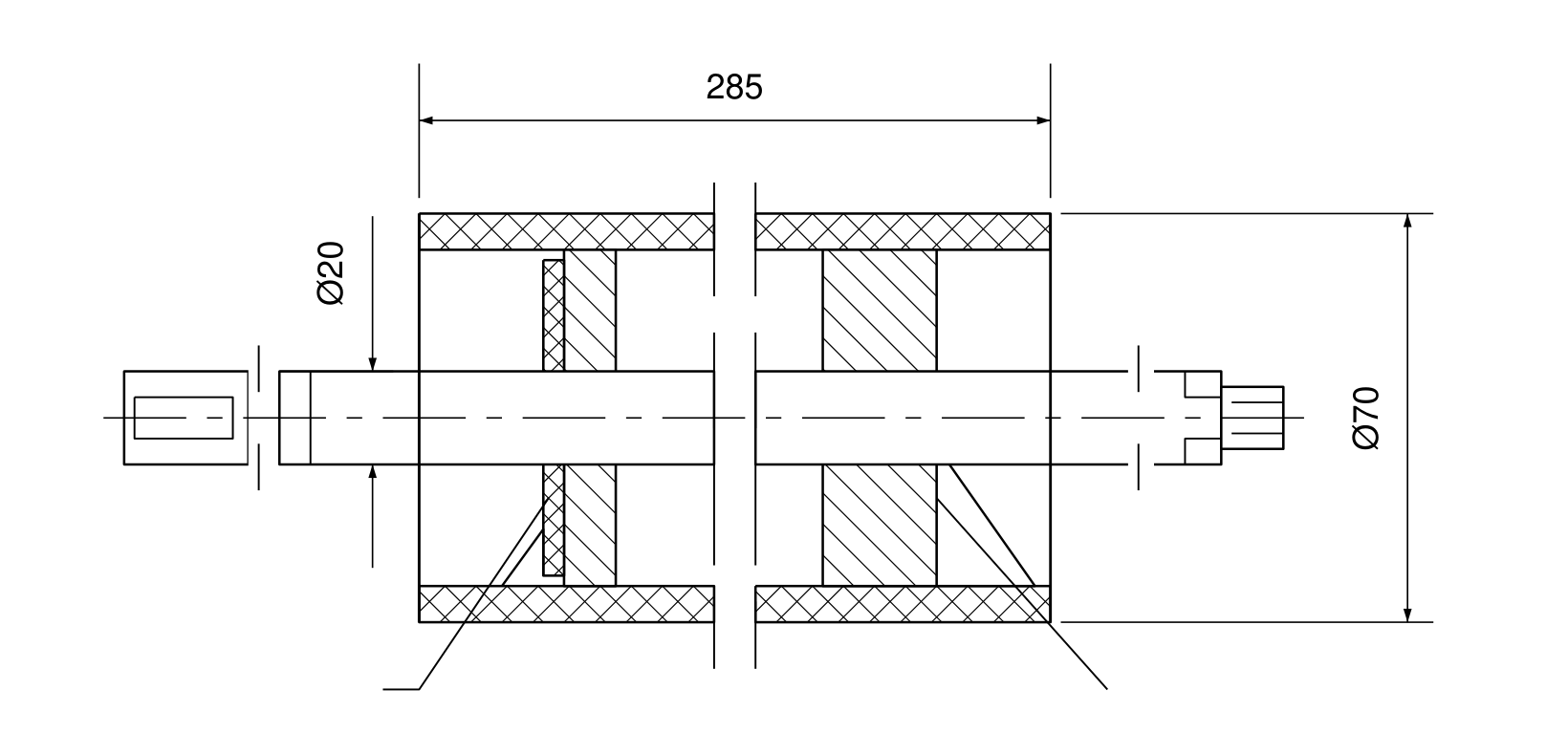

Various 009
| Description | Specification |
|---|---|
| Roller Body Length | 285mm |
| Outer Diameter | Ø70mm |
| Shaft Diameter | Ø20mm |

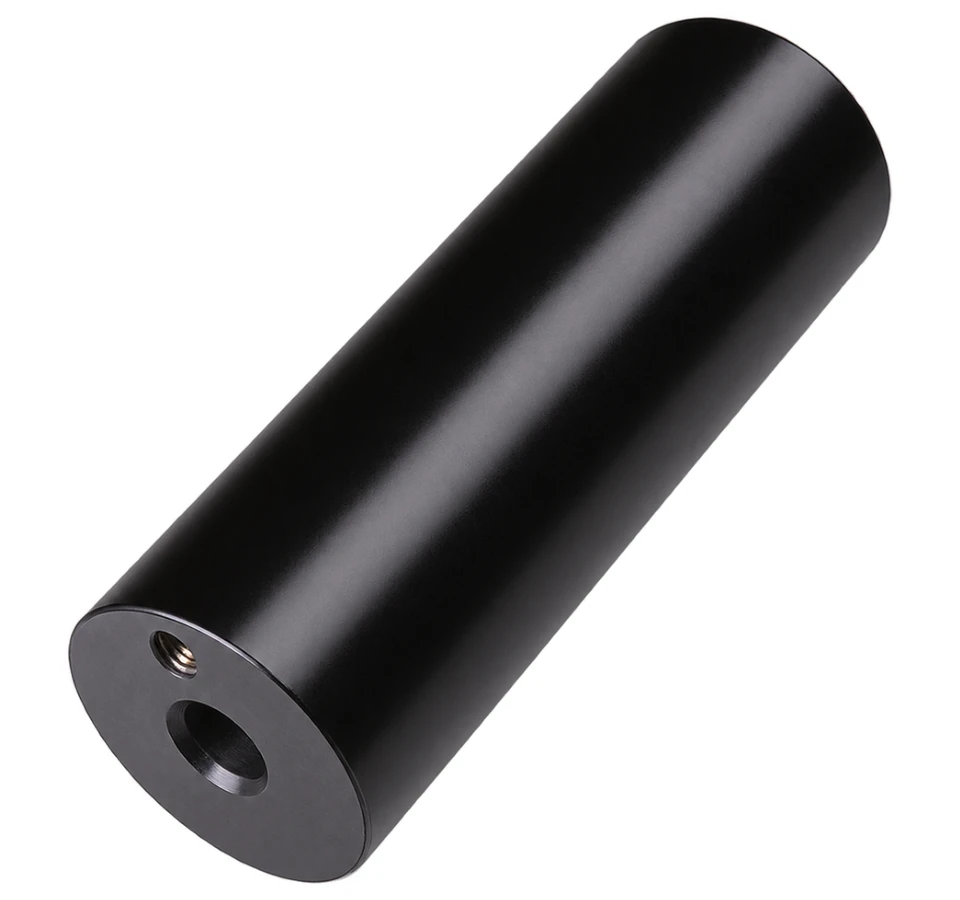

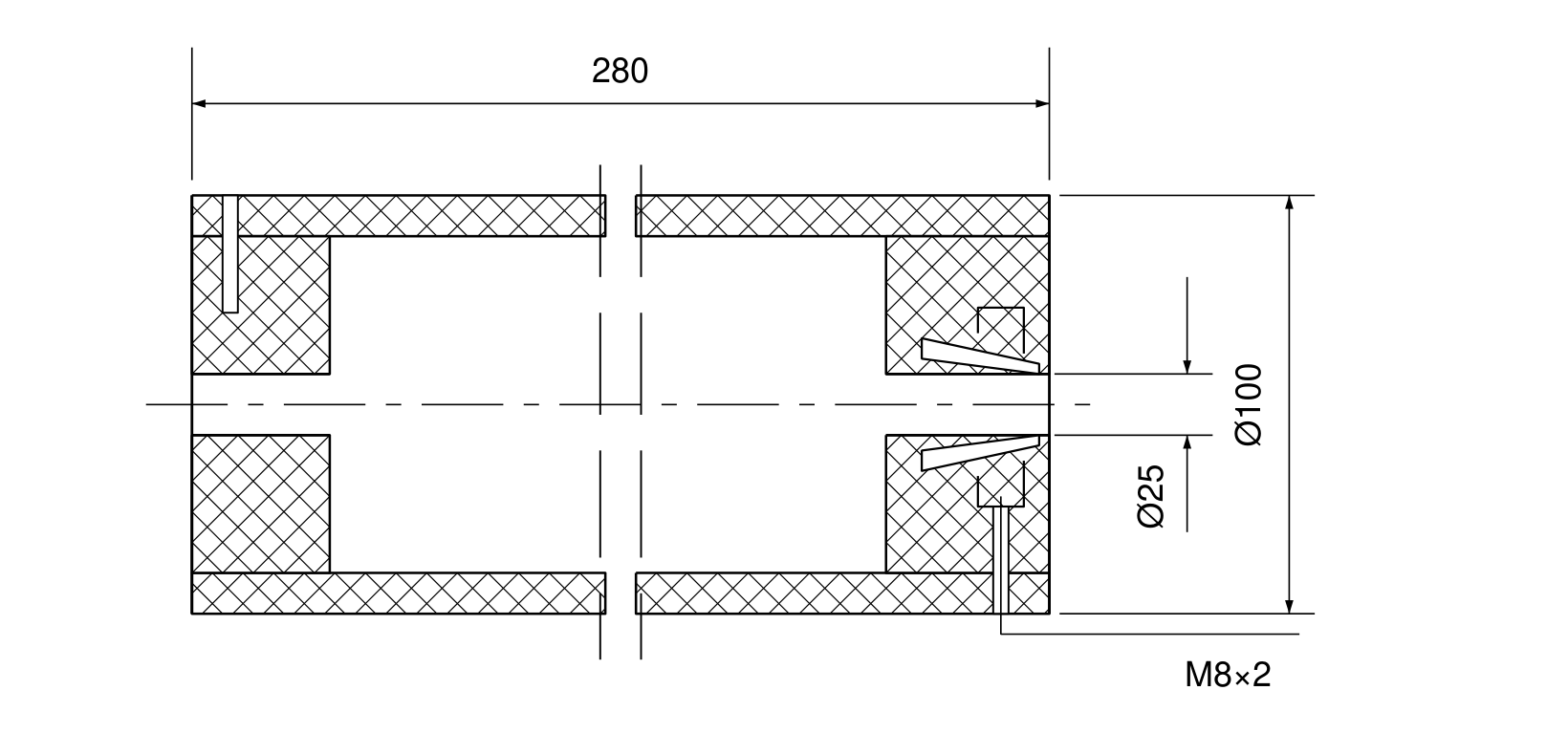

Various 010
| Description | Specification |
|---|---|
| Roller Length | 280mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

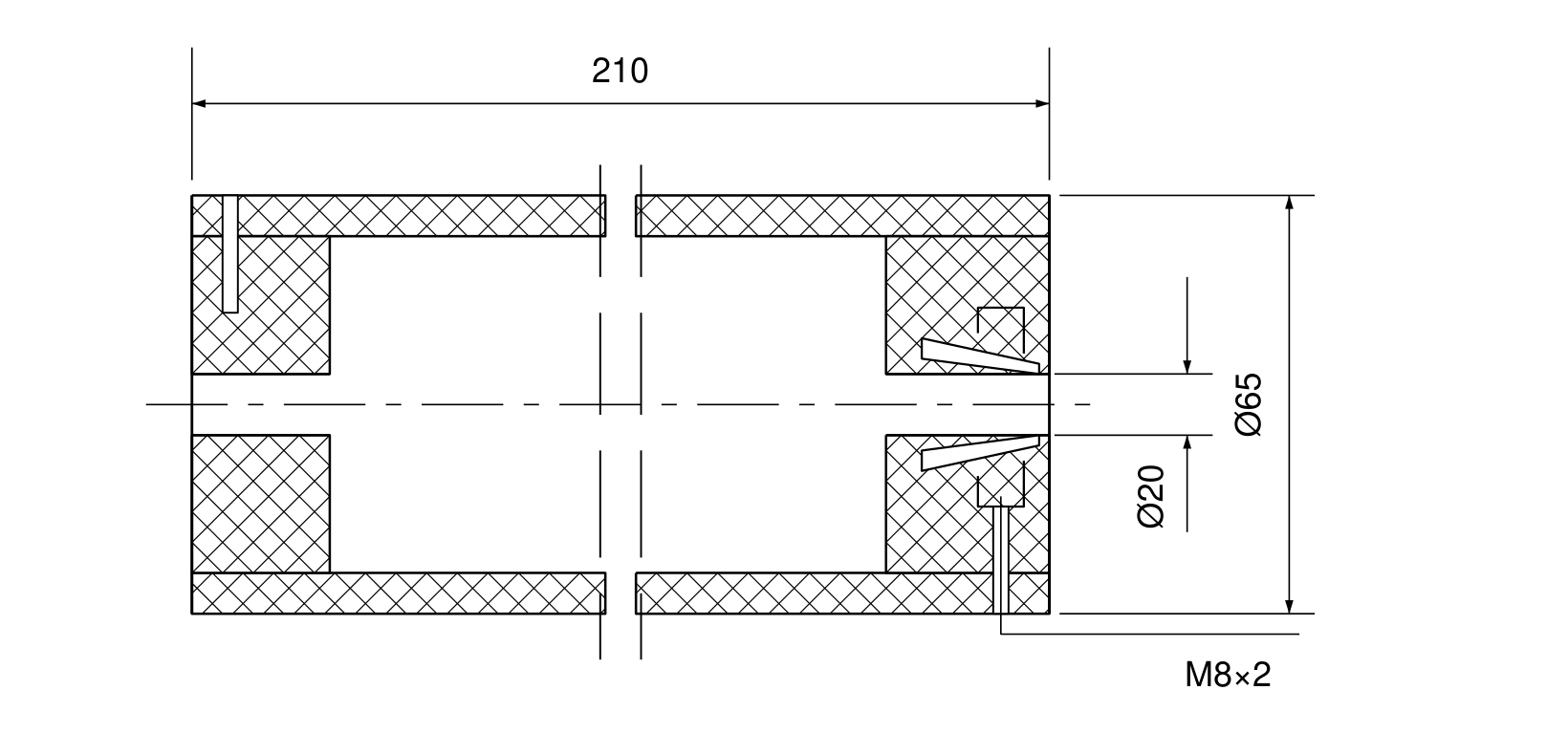

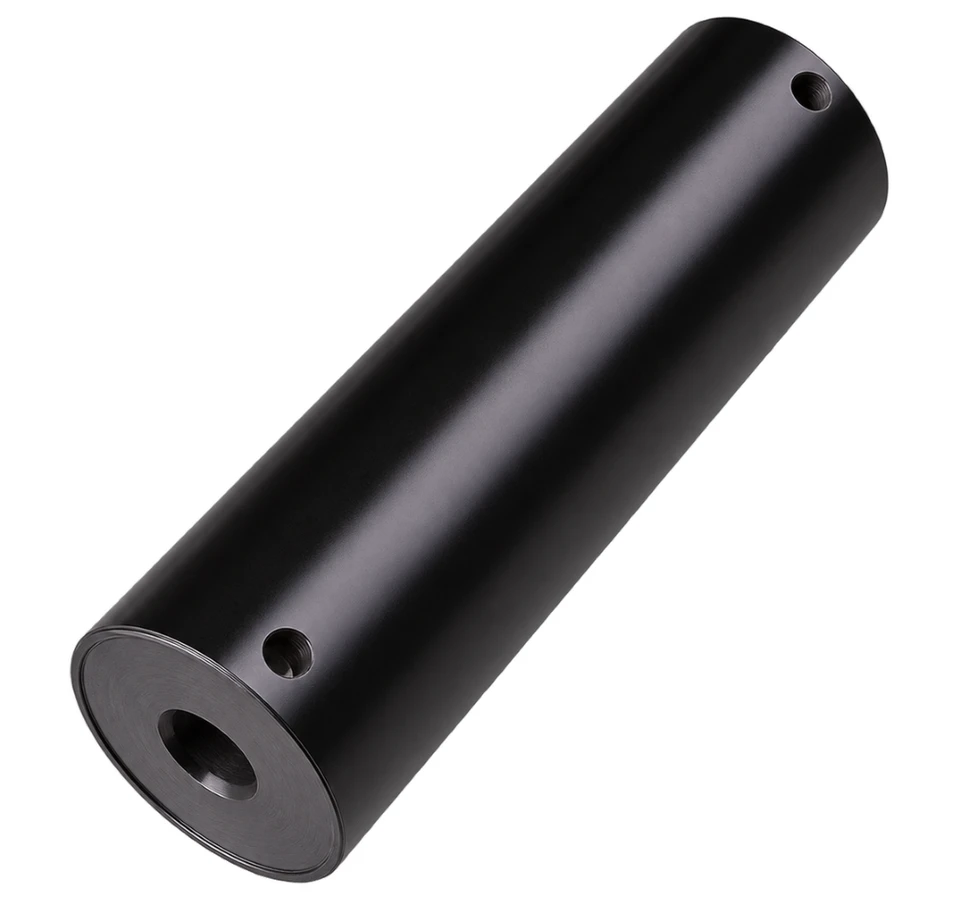

Various 011
| Description | Specification |
|---|---|
| Roller Length | 210mm |
| Outer Diameter | Ø65mm |
| End Bore Diameter | Ø20mm |
| Thread Callout | M8×2 |

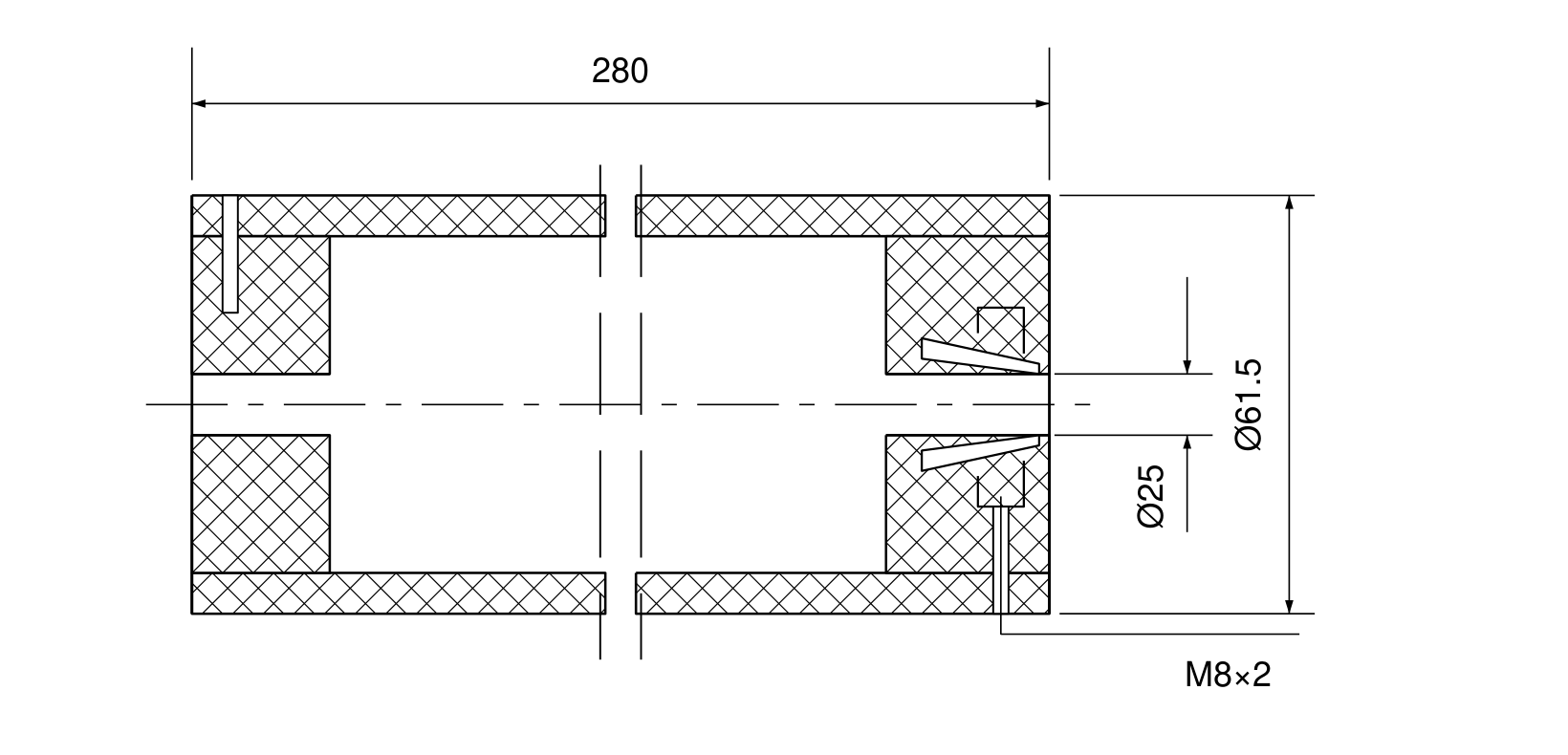

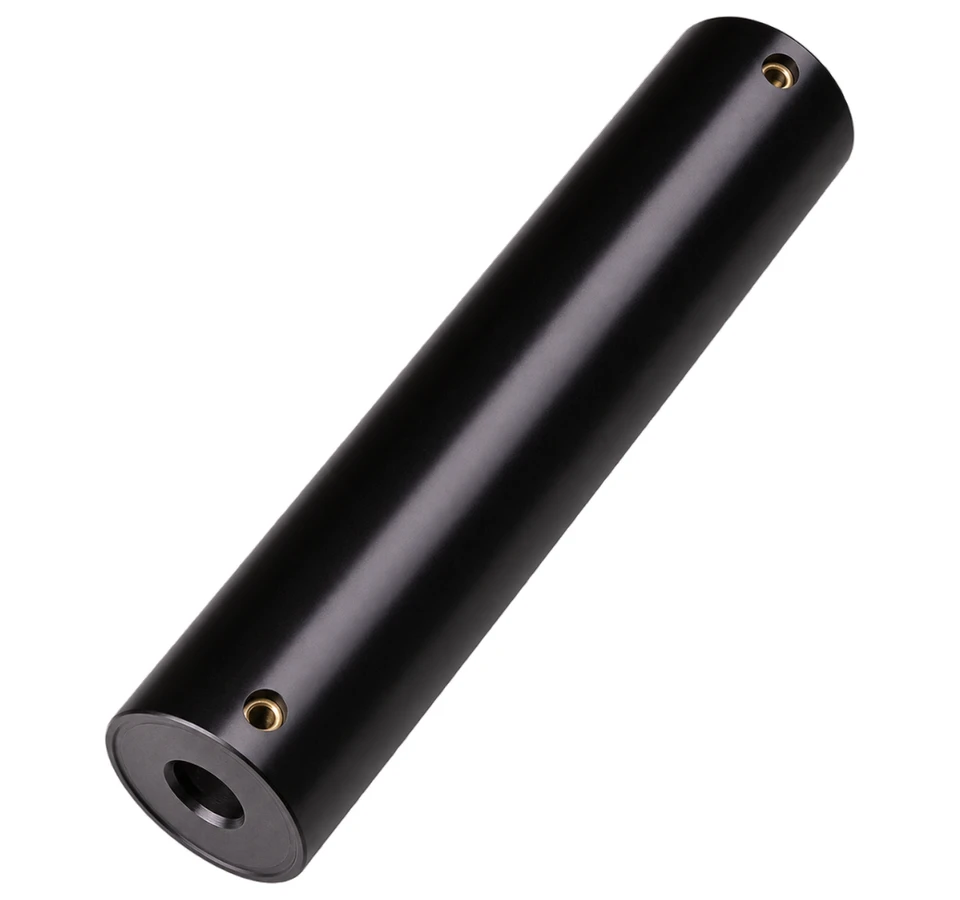

Various 168
| Description | Specification |
|---|---|
| Roller Length | 280mm |
| Outer Diameter | Ø61.5mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

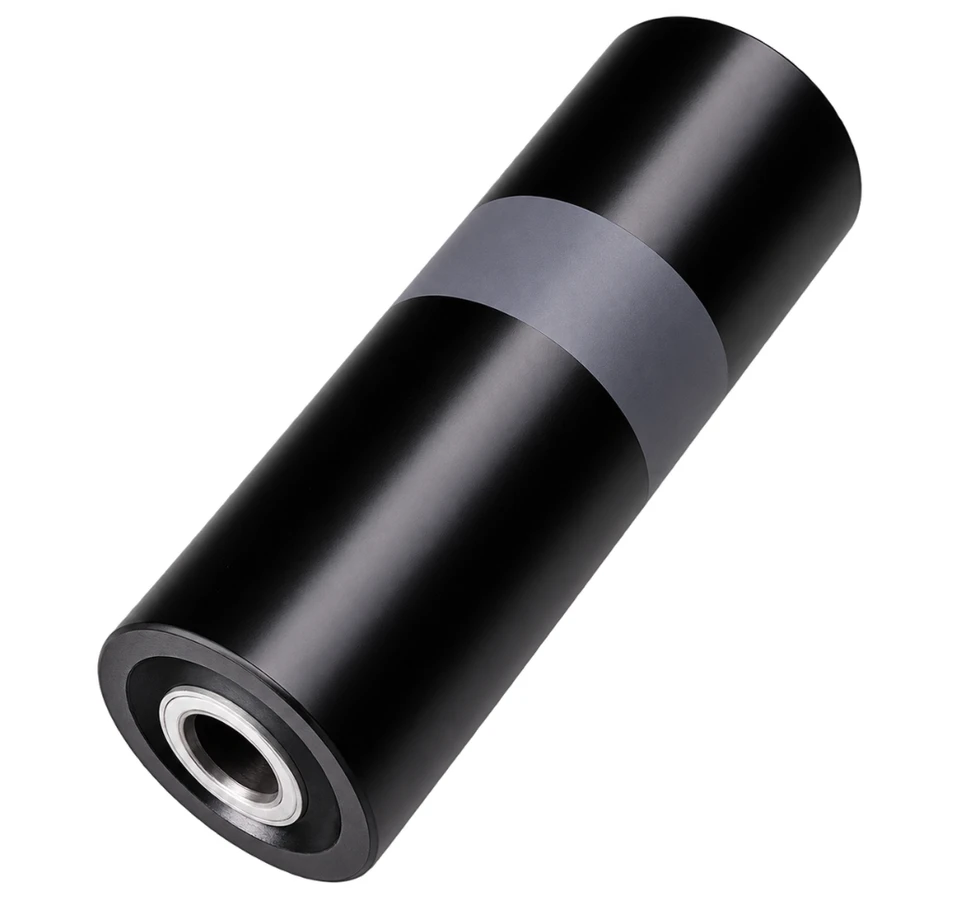

Various 012
| Description | Specification |
|---|---|
| Roller Length | 265mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø30mm |

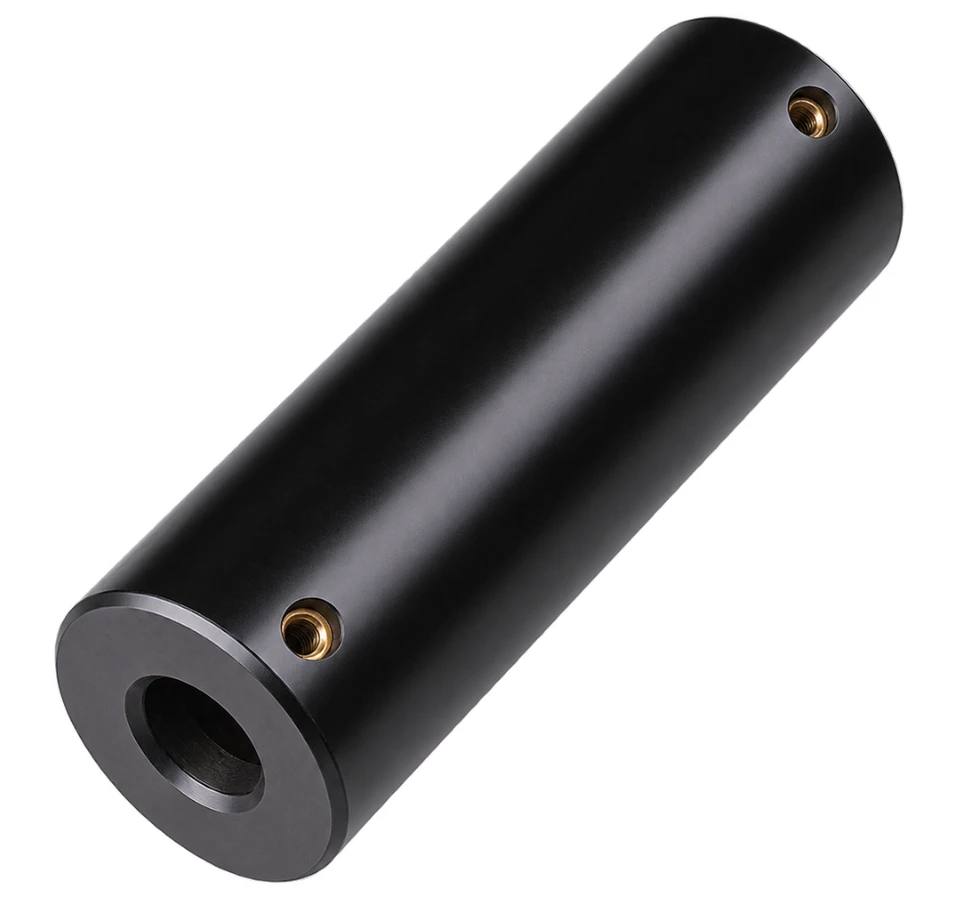

Various 013
| Description | Specification |
|---|---|
| Roller Length | 190mm |
| Outer Diameter | Ø63mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

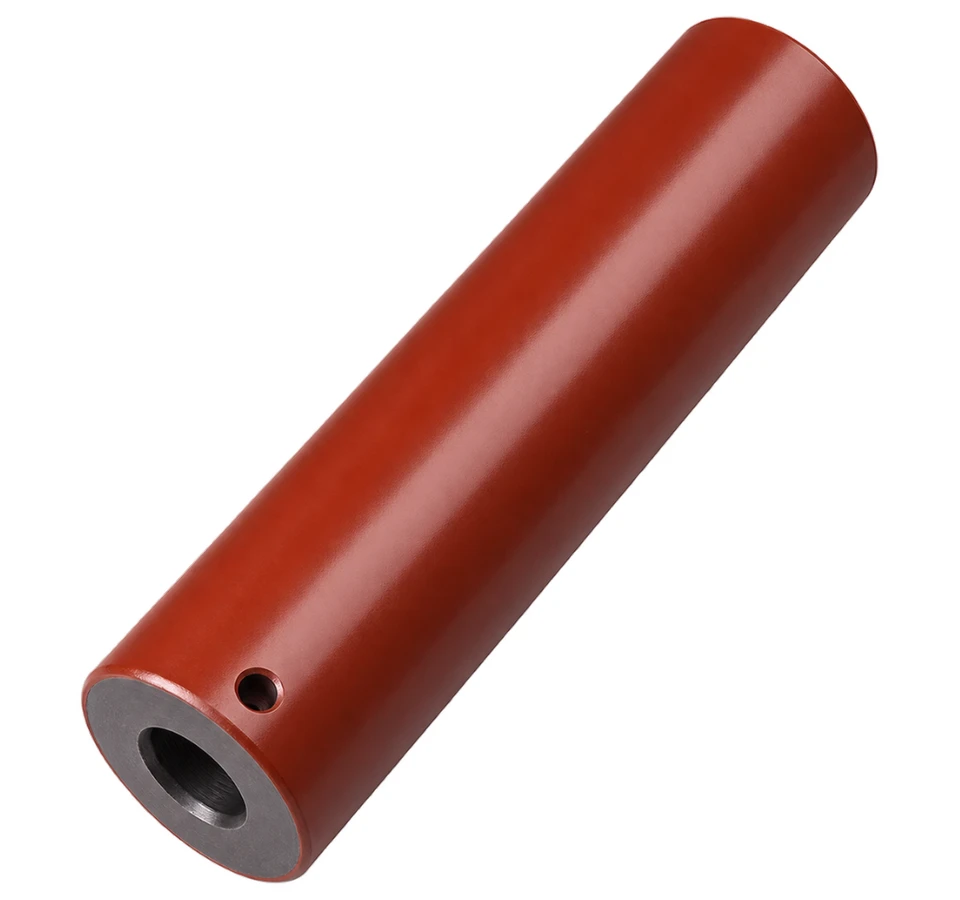

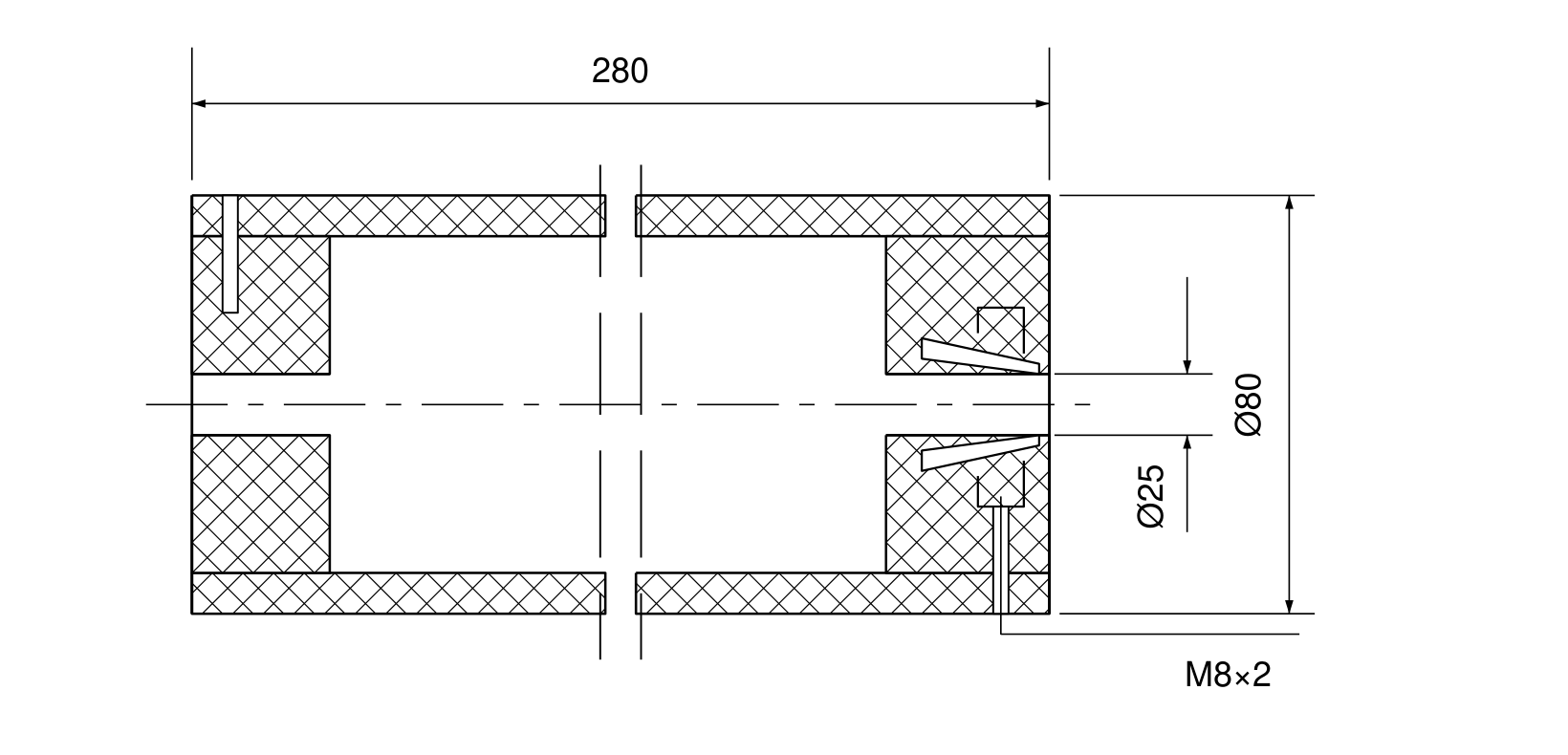

Various 868
| Description | Specification |
|---|---|
| Roller Length | 280mm |
| Outer Diameter | Ø80mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

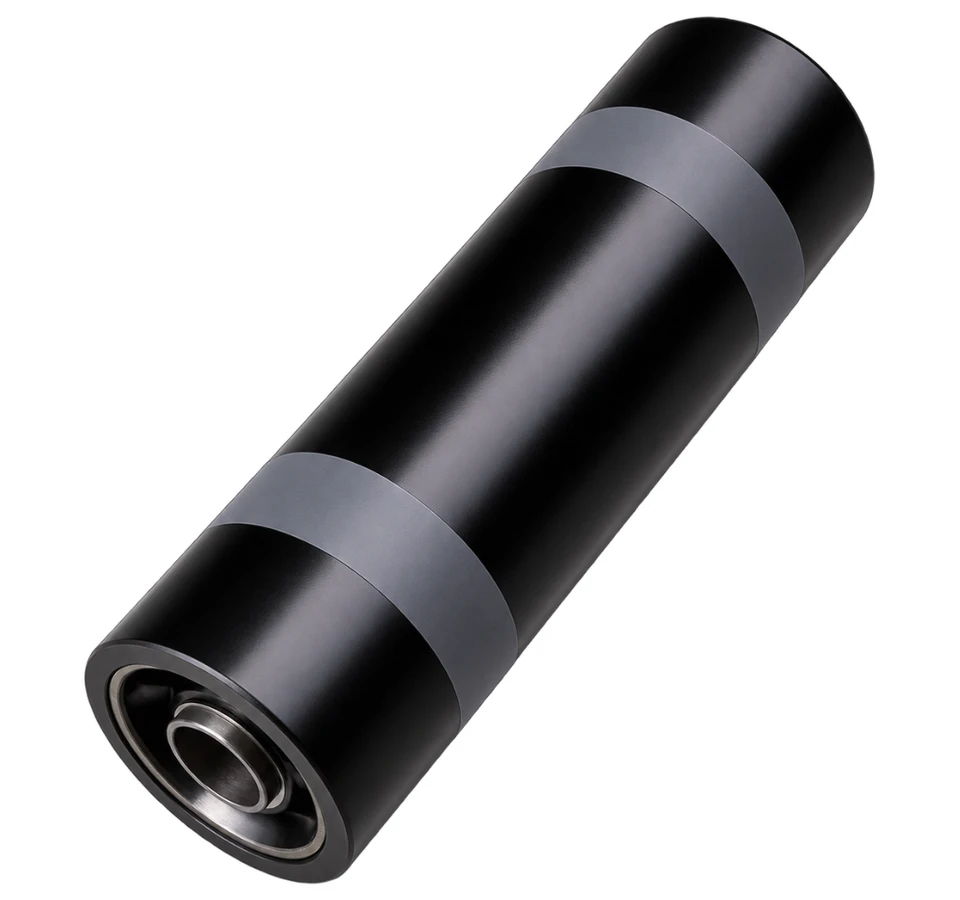

Various 014
| Description | Specification |
|---|---|
| Roller Length | 278mm |
| Outer Diameter | Ø100mm |
| End Bore Diameter | Ø30mm |

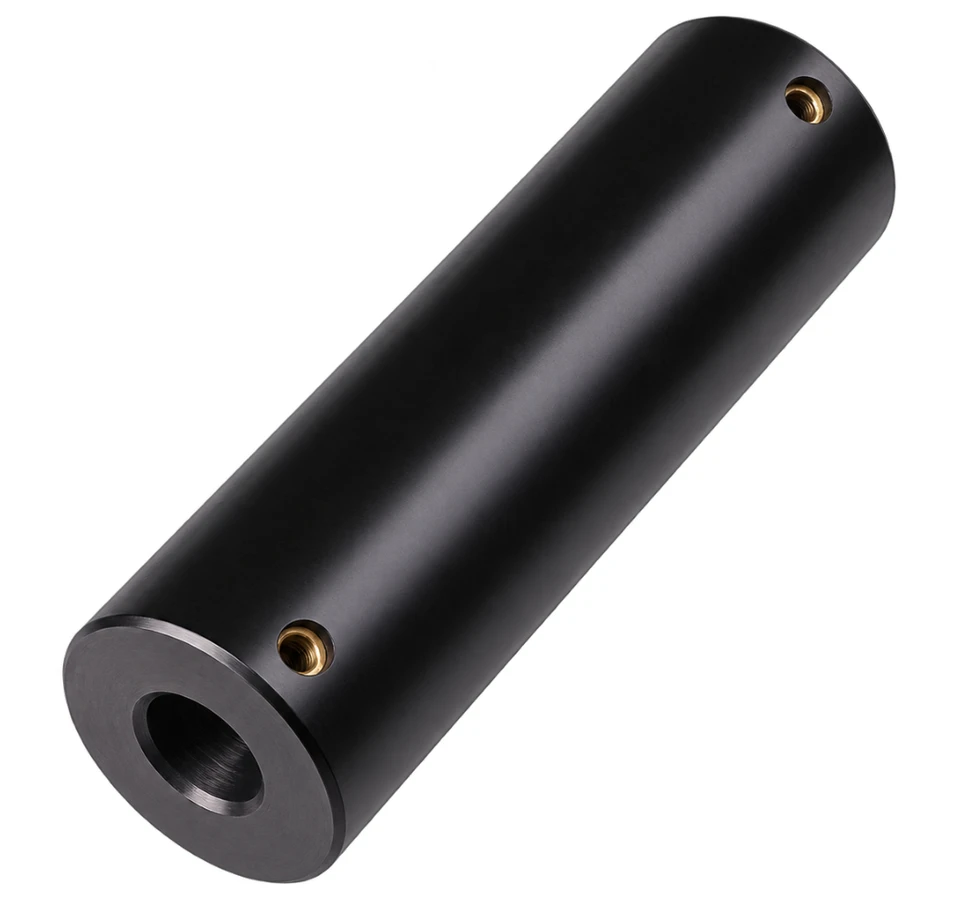

Various 015
| Description | Specification |
|---|---|
| Roller Length | 220mm |
| Outer Diameter | Ø63mm |
| End Bore Diameter | Ø25mm |
| Thread Callout | M8×2 |

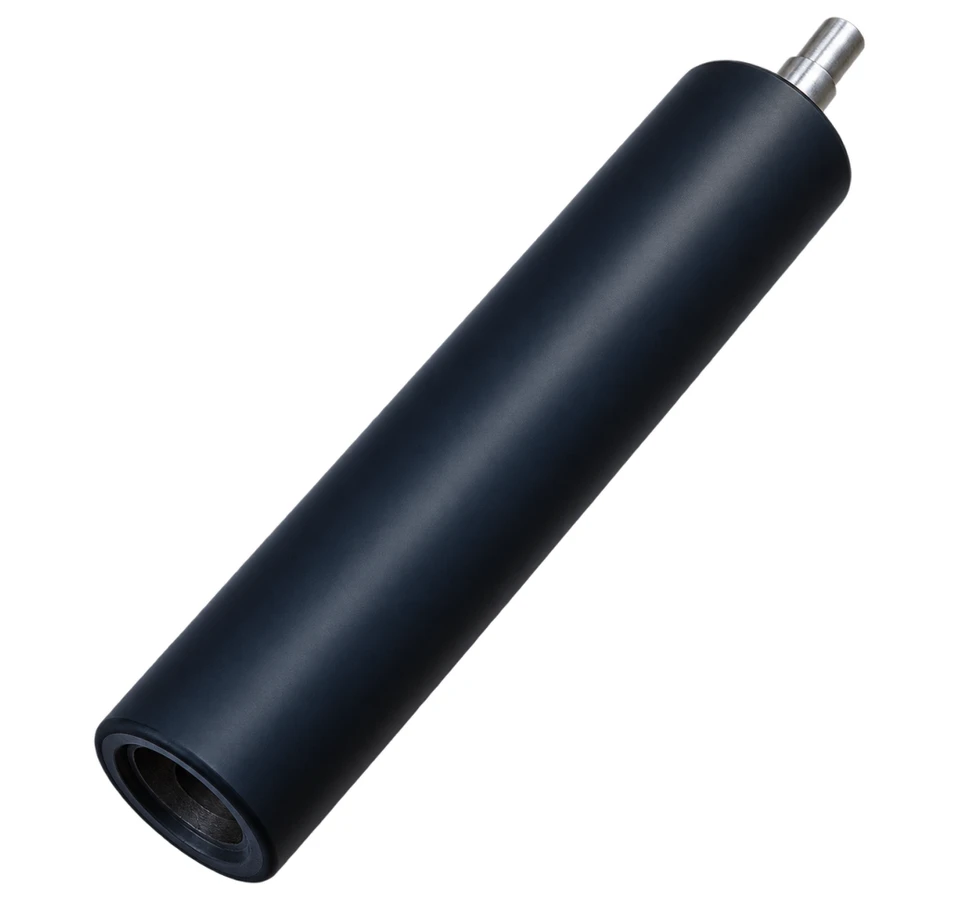

Various 016
| Description | Specification |
|---|---|
| Roller Length | To confirm |
| Outer Diameter | To confirm |
| End Bore Diameter | To confirm |

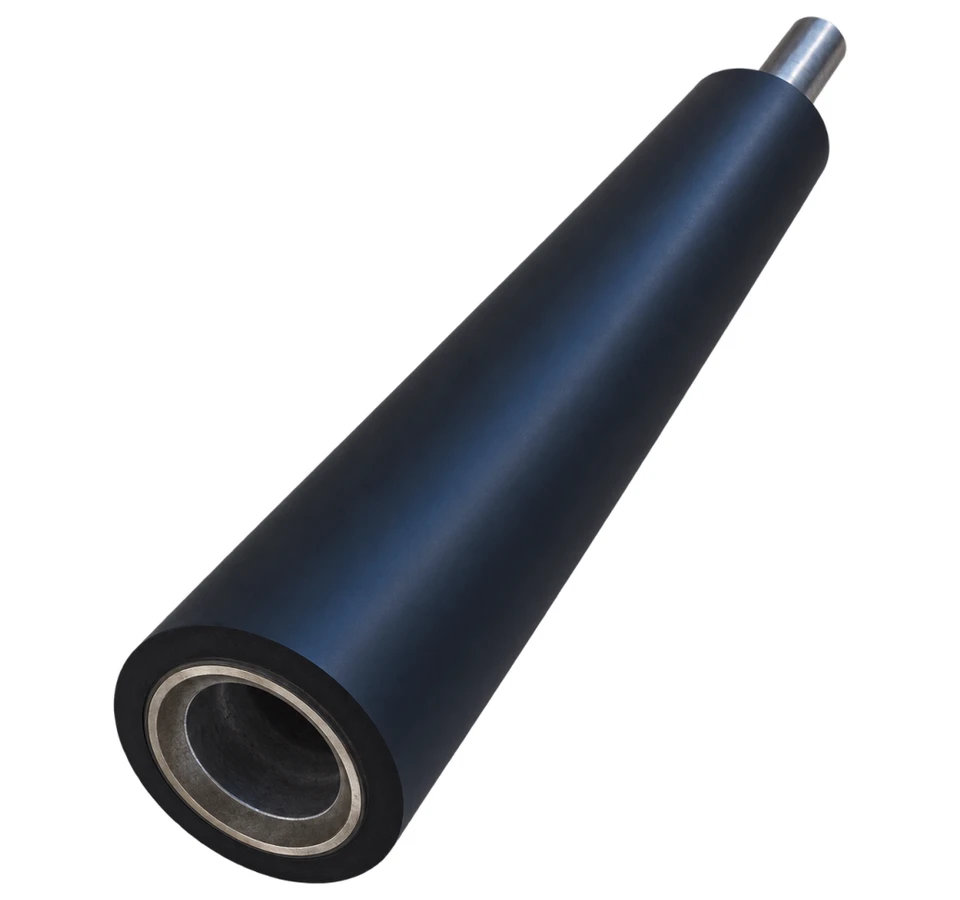

Various 017
| Description | Specification |
|---|---|
| Roller Length | To confirm |
| Outer Diameter | To confirm |
| End Bore Diameter | To confirm |

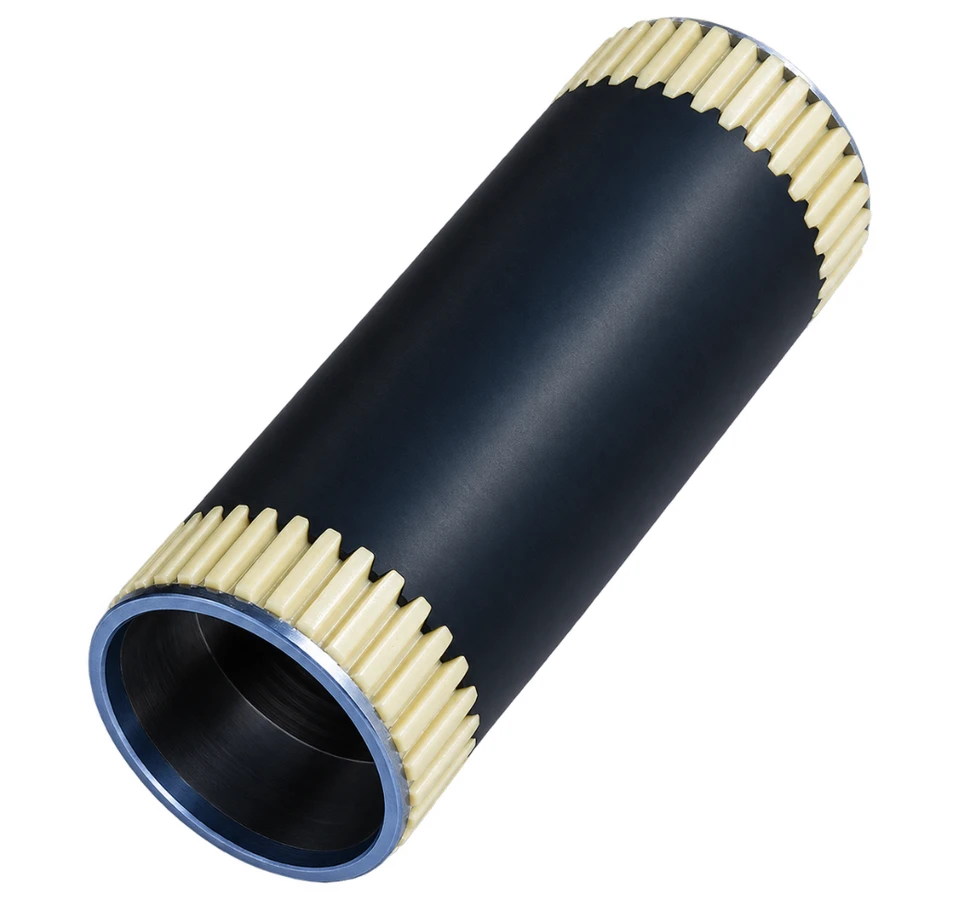

Various 018
| Description | Specification |
|---|---|
| Roller Length | To confirm |
| Outer Diameter | To confirm |
| End Bore Diameter | To confirm |

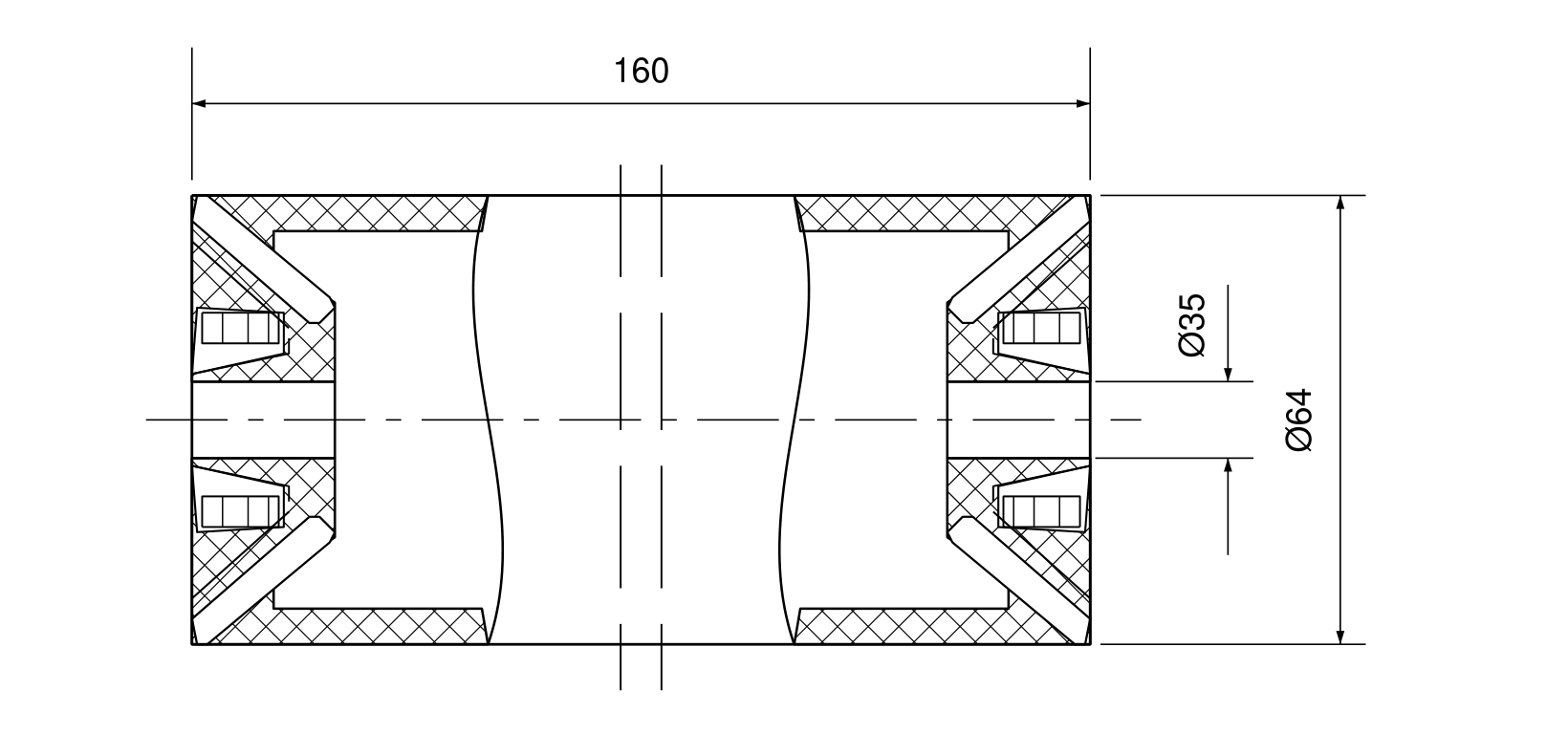

Various 608
| Description | Specification |
|---|---|
| Roller Length | 160mm |
| Outer Diameter | Ø64mm |
| End Bore Diameter | Ø35mm |
Precision Engineering
Dimensions and bearing arrangements matched to the intended assembly.
Machine Compatibility
Part references and machine details help identify suitable replacements.
Stable Operation
Correct fit and alignment support smooth rotation and consistent running.
